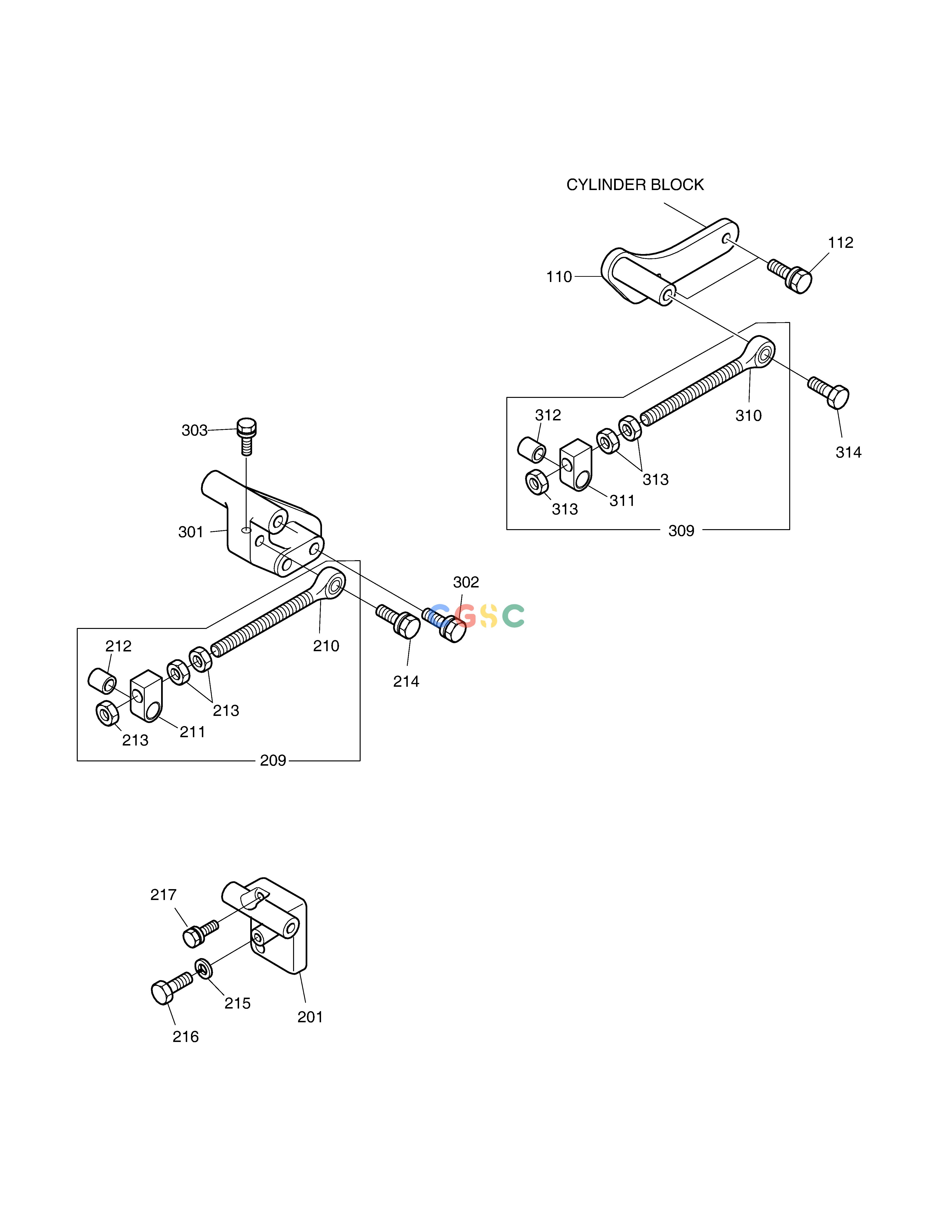

斗山零件查询ALTERNATOR & AIR COMP. MOUNTING MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
884 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 110. |
65.19103-5032
|
[1] |
SUPPORT;ALT.
|
|
| 112. |
06.01913-3215
|
[2] |
BOLT ASS'Y M10X25
|
|
| 201. |
65.19102-0075
|
[1] |
BRACKET;ALTERNATOR MOUNTING
|
|
| 209. |
65.19103-6012
|
[1] |
EYE BOLT ASS'Y
|
|
| 210. |
65.90435-0011
|
[1] |
BOLT;EYE
|
|
| 211. |
65.19107-0001
|
[1] |
PIECE;GUIDE
|
|
| 212. |
65.93020-0055
|
[1] |
. BUSH
|
|
| 213. |
06.11063-9217
|
[3] |
. NUT
|
|
| 214. |
06.01943-3319
|
[1] |
BOLT ASS`Y M12X1.5X40
|
|
| 215. |
06.16731-2108
|
[1] |
WASHER;SPRING
|
|
| 216. |
06.01013-9220
|
[1] |
BOLT;HEX M10X1.5X75
|
|
| 217. |
06.01913-3219
|
[2] |
BOLT ASS'Y M10X40
|
|
| 301. |
65.28652-0015
|
[1] |
BRACKET;COMPRESSOR
|
|
| 302. |
06.01943-3323
|
[2] |
BOLT ASS`Y M12X1.5X60
|
|
| 303. |
06.01913-3217
|
[1] |
BOLT ASS'Y M10X30
|
|
| 309. |
65.19103-6012
|
[1] |
EYE BOLT ASS'Y
|
|
| 310. |
65.90435-0011
|
[1] |
BOLT;EYE
|
|
| 311. |
65.19107-0001
|
[1] |
PIECE;GUIDE
|
|
| 312. |
65.93020-0055
|
[1] |
. BUSH
|
|
| 313. |
06.11063-9217
|
[3] |
. NUT
|
|
| 314. |
06.01943-3319
|
[1] |
BOLT ASS`Y M12X1.5X40
|
|
