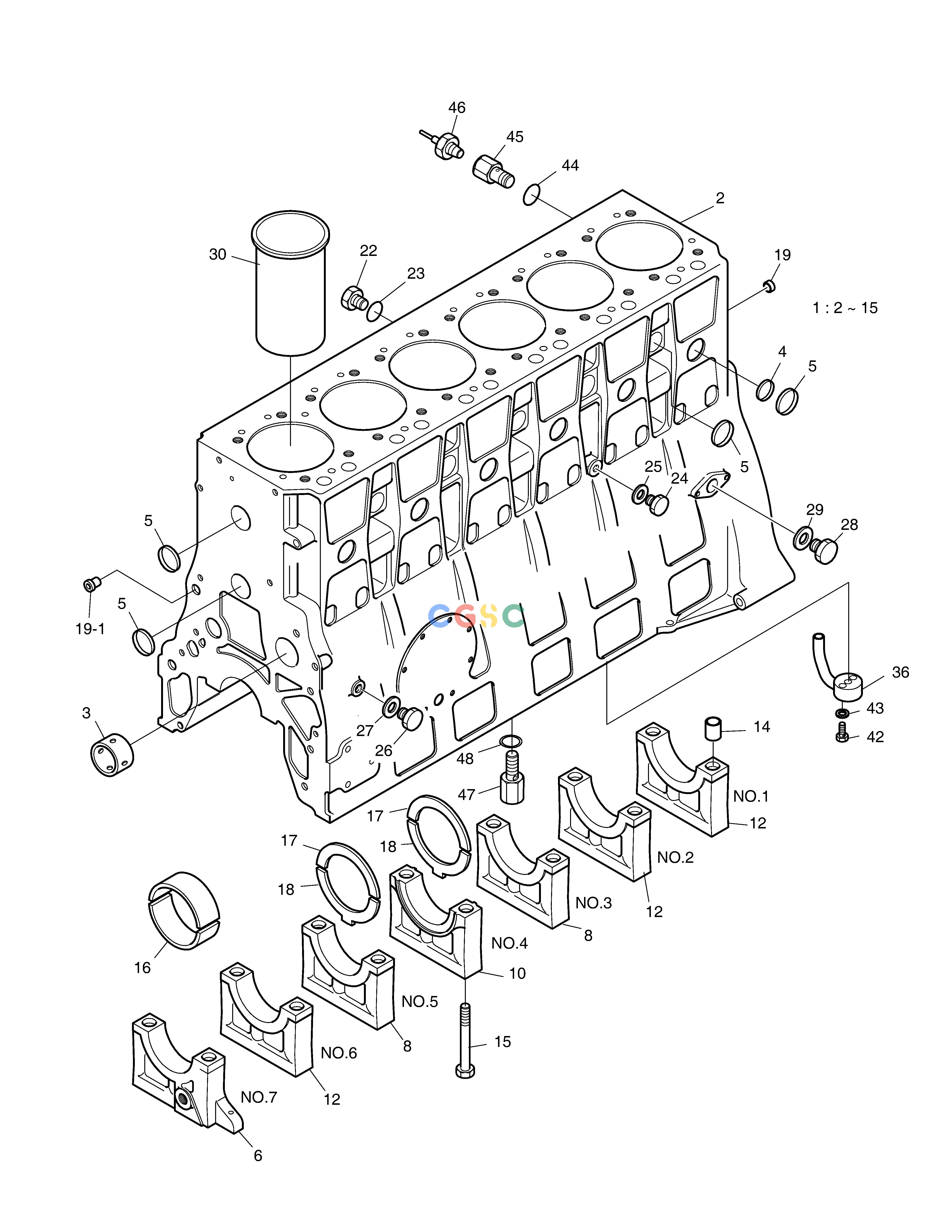

斗山零件查询CYLINDER BLOCK MEGA 400-V (CHINA) Doosan parts catalog online

广数供应链运营团队, 15 02月, 2025，浏览： 538 次

Pos.	Part No	Qty	Parts name
1.	65.01101-6212F	[1]
10.	65.01105-1159F	[1]	CAP;BEARING
12.	65.01105-1161A	[3]	CAP;BRARING(NO. 1.2.6)
14.	65.91710-0035B	[14]	RING;LOCATING
15.	65.90020-0036B	[14]	BOLT;BEARING CAP
16.	65.01110-6055A	[7]	METAL;MAIN STD
16.	65.01110-6068A	[7]	METAL;MAIN 0.25
16.	65.01110-6069A	[7]	METAL;MAIN 0.50
16.	65.01110-6070A	[7]	METAL;MAIN 0.75
17.	65.01150-0017A	[2]	WASHER;THRUST
17.	65.01150-0048A	[2]	WASHER;THRUST 0.25
17.	65.01150-0049A	[2]	WASHER;THRUST 0.50
18.	65.01150-0018B	[2]	WASHER;THRUST
18.	65.01150-0052B	[2]	WASHER;THRUST 0.25
18.	65.01150-0053B	[2]	WASHER;THRUST 0.50
19.	65.91606-0041	[1]	. PLUG;CORE
19-1.	65.01601-0008	[1]	NOZZLE;SPRAY
2.	65.01101-0212D	[1]
22.	65.90310-0136A	[1]	SCREW;PLUG
23.	06.56190-0718	[1]	RING;SEAL
24.	65.90310-0137	[1]	SCREW;PLUG M16X1.5X20
25.	06.56190-0708	[1]	RING;SEAL
26.	65.90310-0131	[1]	SCREW;PLUG
27.	06.56190-0712	[1]	RING;SEAL
28.	65.90310-0149A	[1]	SCREW;PLUG M26X1.5
29.	06.56190-0726	[1]	. SEAL;RING
3.	65.04410-0016	[4]	BUSH;CAM SHAFT
30.	65.01201-0051	[6]	LINER;CYLINDER
36.	65.01601-6002	[6]	NOZZLE;OIL SPRAY
4.	65.90302-0048	[6]	. PLUG,CORE
42.	65.90001-0126	[12]	BOLT;HEX.
43.	06.16044-0208	[12]	WASHER;SPRING
44.	06.56190-0704	[2]	. RING;SEAL
45.	65.98150-0002	[1]	ADAPTER
46.	65.27441-7007	[1]	SWITCH;OIL PRESSURE
47.	65.05405-7021	[1]	RELIEF VALVE ASS'Y
48.	06.56190-0704	[1]	. RING;SEAL
5.	65.91606-0037	[15]	PLUG;CORE
6.	65.01105-1157G	[1]	CAP;BRARING(NO. 7)
8.	65.01105-1158F	[2]	CAP;BRARING(NO. 3.5)
