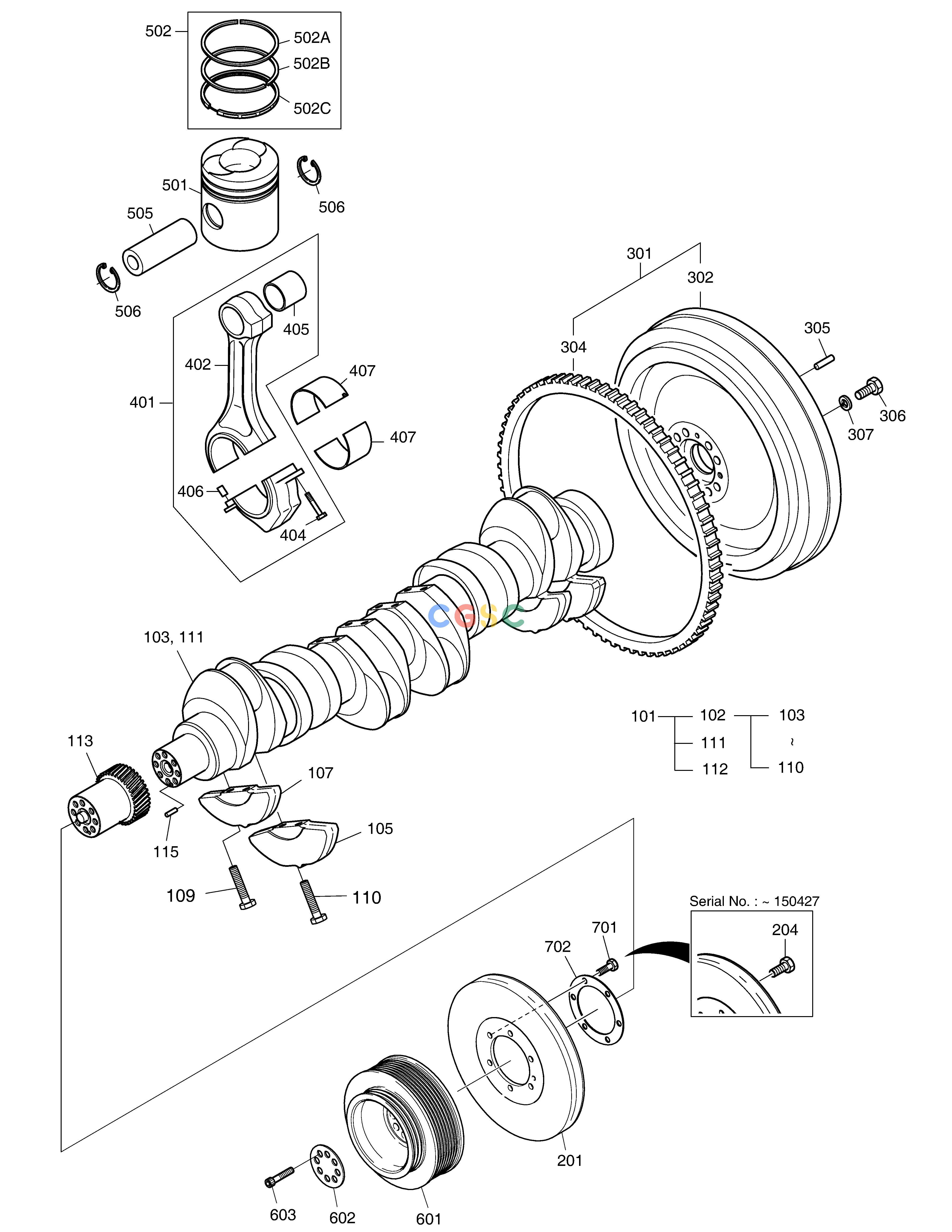

斗山零件查询CRANK SHAFT & PISTON MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
933 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 101. |
65.02101-7541B
|
[1] |
CRANKSHAFT ASS'Y
|
|
| 102. |
65.02101-7054B
|
[1] |
CRANK SHAFT ASS'Y
|
|
| 103. |
65.02101-0054A
|
[1] |
SHAFT;CRANK
|
|
| 105. |
65.02110-0013E
|
[1] |
WEIGHT;COUNTER
|
|
| 107. |
65.02110-0014E
|
[1] |
WEIGHT;COUNTER
|
|
| 109. |
65.90430-0012B
|
[8] |
BOLT;CRANK SHAFT
|
|
| 110. |
65.90430-0013B
|
[8] |
BOLT;CRANK SHAFT
|
|
| 111. |
65.02101-0057A
|
[1] |
SHAFT;CRANK
|
|
| 112. |
65.02101-0060A
|
[1] |
CRANK SHAFT ASS'Y
|
|
| 113. |
65.02115-0008B
|
[1] |
GEAR;CRANK SHAFT
|
|
| 115. |
06.22022-0912
|
[1] |
PIN;DOWEL
|
|
| 201. |
65.02201-7033
|
[1] |
DAMPER;VISCOUS
|
|
| 201. |
65.02201-7032
|
[1] |
DAMPER;VIBRATION
|
65.02201-7033
|
| 204. |
65.90020-0062B
|
[6] |
BOLT;HEX M10X20
|
|
| 204. |
06.01914-3215
|
[6] |
BOLT ASS'Y M10X25
|
65.90020-0062B
|
| 301. |
65.02301-5102
|
[1] |
FLY WHEEL ASS'Y
|
|
| 302. |
65.02301-0248
|
[1] |
FLY WHEEL
|
|
| 304. |
65.02310-0011B
|
[1] |
GEAR;STARTER RING
|
|
| 305. |
06.22022-1010
|
[1] |
PIN ; DOWEL
|
|
| 306. |
65.90001-0164
|
[8] |
BOLT;HEX. M14X1.5X70
|
|
| 307. |
06.16731-2110
|
[8] |
WASHER;SPRING
|
|
| 401. |
65.02401-6012H
|
[6] |
|
|
| 402. |
65.02401-0045H
|
[1] |
|
|
| 404. |
65.90020-0010E
|
[2] |
BOLT;CON-ROD
|
|
| 405. |
65.02405-1006
|
[1] |
BUSH;CON-ROD
|
|
| 406. |
65.91301-0010
|
[2] |
PIN;DOWEL
|
|
| 407. |
65.02410-6106
|
[6] |
BEARING;CON-ROD
|
|
| 501. |
65.02501-0222A
|
[6] |
PISTON
|
|
| 502. |
65.02503-8237
|
[1] |
|
|
| 502A. |
65.02503-0674
|
[6] |
RING;TOP
|
|
| 502B. |
65.02503-0097
|
[6] |
RING;2ND
|
|
| 502C. |
65.02503-0675B
|
[6] |
RING;OIL
|
|
| 505. |
65.02502-0013
|
[6] |
PIN;PISTON
|
|
| 506. |
06.29020-0127
|
[12] |
RING;SNAP 45X1.75
|
|
| 601. |
65.02601-0180
|
[1] |
PULLEY;V-BELT
|
|
| 602. |
65.90701-0088
|
[1] |
WASHER
|
|
| 603. |
06.02106-0622
|
[8] |
BOLT;SOCKET HEAD
|
|
| 701. |
120121-00071
|
[6] |
BOLT
|
|
| 702. |
120808-00786
|
[1] |
|
|
