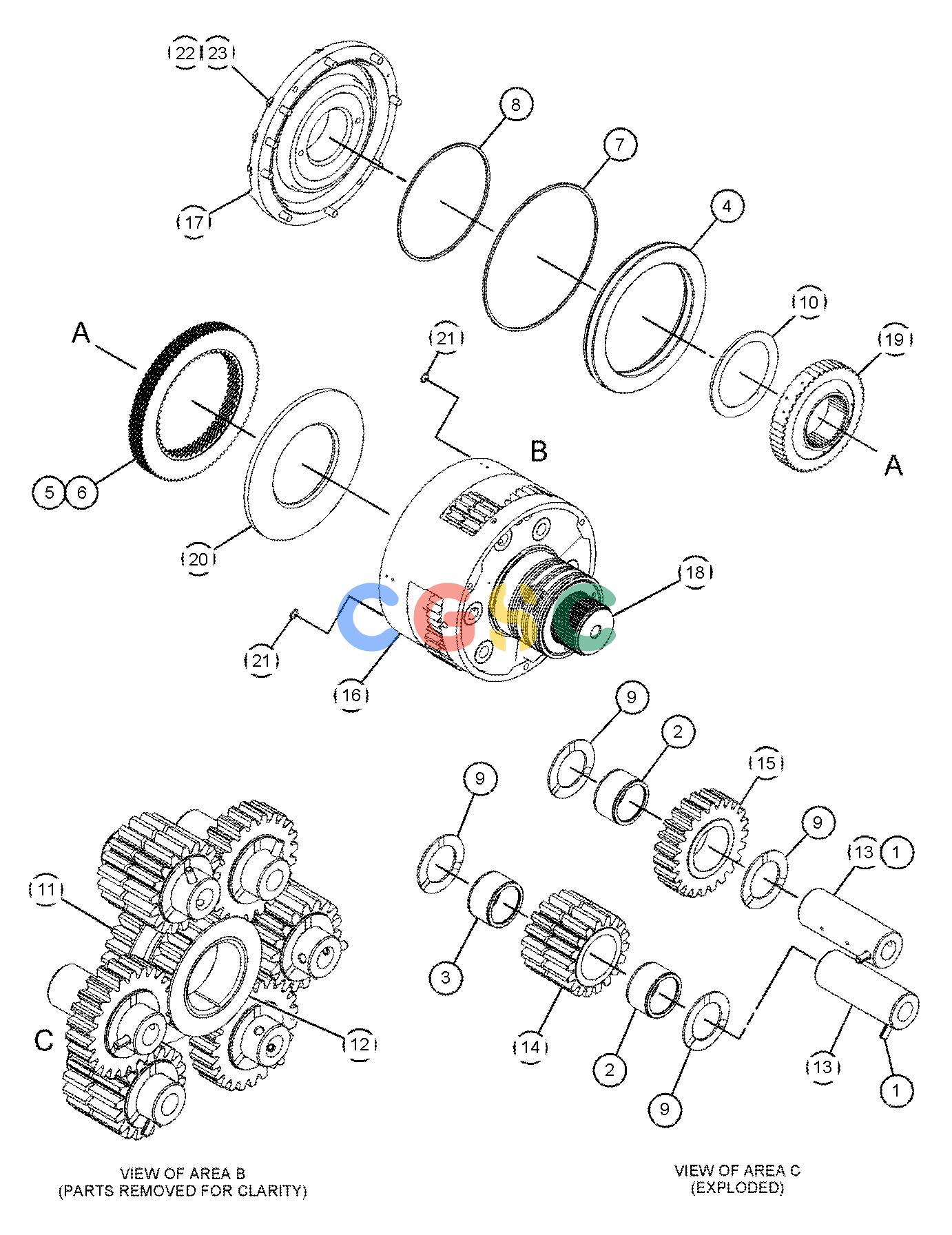

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 417-7927Y | [1] | PLATE GP-DRIVE(TRANSMISSION) | |
| 2. | 8T-4193M | [8] | BOLT(M16X2X50-MM) | |
| 3. | 8T-4121 | [12] | WASHER-HARD(11X21X2.5-MM THK) | |
| 4. | 8T-4196M | [12] | BOLT(M10X1.5X35-MM) | |
| 5. | 6V-8200M | [8] | BOLT-SOCKET HEAD(M12X1.75X35-MM) | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
