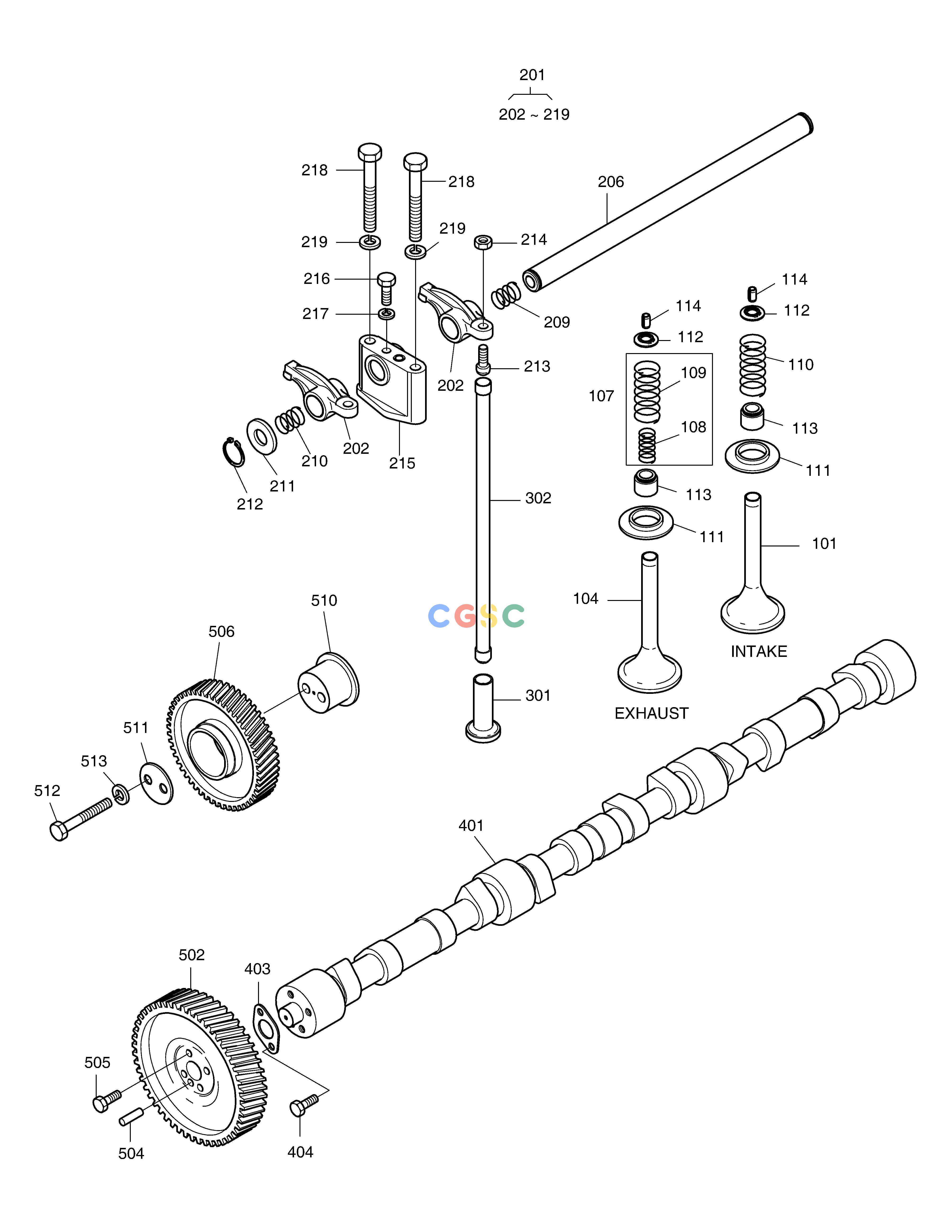

斗山零件查询ENGINE TIMING MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
612 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 101. |
65.04101-0043
|
[6] |
VALVE;INTAKE
|
|
| 104. |
65.04101-0044
|
[6] |
VALVE;EXHAUST
|
|
| 107. |
65.04102-6004A
|
[6] |
SPRING VALVE ASS'Y
|
|
| 108. |
65.04102-0002A
|
[1] |
SPRING;VALVE(INNER)
|
|
| 109. |
65.04102-0066
|
[1] |
SPRING;VALVE(OUTER)
|
|
| 110. |
65.04102-0066
|
[6] |
SPRING;VALVE(OUTER)
|
|
| 111. |
65.04103-0078
|
[12] |
SEAT;VALVE SPRING
|
|
| 112. |
65.04103-0014
|
[12] |
RETAINER;VALVE SPRING
|
|
| 113. |
65.04902-0010
|
[12] |
SEAL;VALVE STEM
|
|
| 114. |
65.04104-0007
|
[24] |
COTTER;VALVE
|
|
| 201. |
65.04200-6027C
|
[2] |
R/ARM & SHAFT ASS'Y
|
|
| 202. |
65.04201-5014E
|
[6] |
ROCKER ARM ASS'Y
|
|
| 206. |
65.04203-5010
|
[1] |
SHAFT;ROCKER ARM
|
|
| 209. |
65.97601-0104
|
[2] |
SPRING;ROCKER ARM SHAFT
|
|
| 210. |
65.97601-0053
|
[2] |
SPRING;CONICAL
|
|
| 211. |
65.90710-0039
|
[2] |
WASHER;ROCKER ARM
|
|
| 212. |
06.29010-0120
|
[2] |
. RING;SNAP
|
|
| 213. |
65.04205-0003
|
[6] |
BOLT;ADJUSTING M10X1.0
|
|
| 214. |
65.90501-0003
|
[6] |
. NUT
|
|
| 215. |
65.04202-0014A
|
[3] |
BRACKET;ROCKER ARM
|
|
| 216. |
06.01283-7112
|
[3] |
BOLT;HEX. M8X18
|
|
| 217. |
06.15010-2311
|
[3] |
WASHER
|
|
| 218. |
06.01013-9221
|
[6] |
BOLT;HEX. M10X80
|
|
| 219. |
06.16731-2108
|
[6] |
WASHER;SPRING
|
|
| 301. |
65.04301-0006
|
[12] |
TAPPET
|
|
| 302. |
65.04302-5011
|
[12] |
ROD;PUSH
|
|
| 401. |
65.04401-0010L
|
[1] |
CAM SHAFT
|
|
| 403. |
65.98112-0038
|
[1] |
FLANGE
|
|
| 404. |
65.90001-6003
|
[2] |
BOLT ASS`Y M6X14
|
|
| 502. |
65.04501-0007A
|
[1] |
GEAR;CAMSHAFT
|
|
| 504. |
06.22022-1014
|
[1] |
PIN;DOWEL
|
|
| 505. |
06.01914-3119
|
[4] |
BOLT ASS'Y
|
|
| 506. |
65.04505-5016
|
[1] |
IDLE GEAR ASS'Y
|
|
| 510. |
65.04506-0033
|
[1] |
PIN;IDLE GEAR
|
|
| 511. |
65.90720-0018
|
[1] |
WASHER;THRUST
|
|
| 512. |
06.01015-9220
|
[2] |
BOLT;HEX
|
|
| 513. |
06.16731-2108
|
[2] |
WASHER;SPRING
|
|
