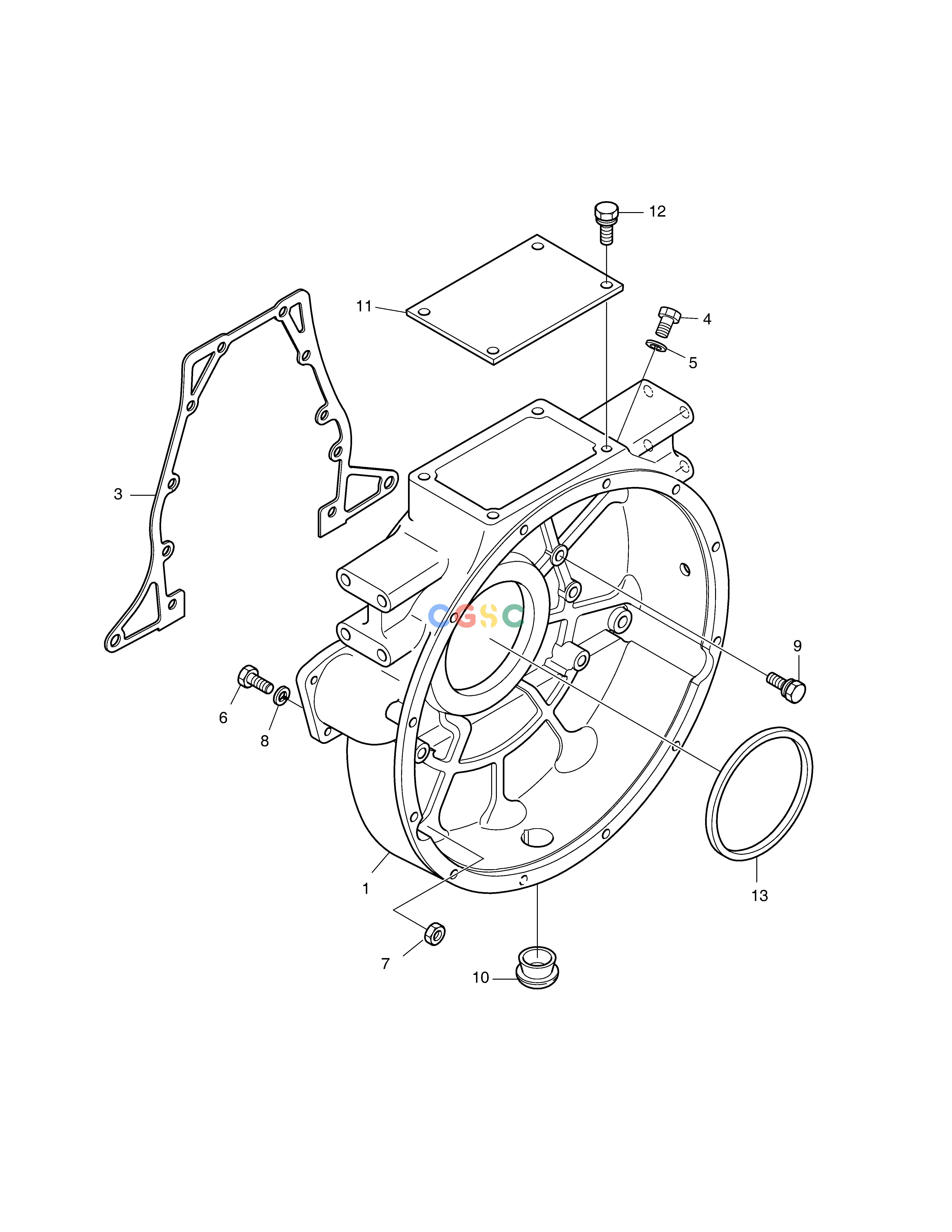

斗山零件查询FLY WHEEL HOUSING MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
805 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.01401-0232A
|
[1] |
HOUSING;FLYWHEEL
|
|
| 10. |
65.96002-0003
|
[1] |
PLUG;RUBBER
|
|
| 11. |
65.91615-0012
|
[1] |
COVER;BLIND
|
|
| 12. |
06.01913-3212
|
[4] |
BOLT ASS'Y M10X18
|
|
| 13. |
65.01510-0158
|
[1] |
SEAL;OIL
|
|
| 3. |
65.01904-0022A
|
[1] |
GASKET;FLYWHEEL HOUSING
|
|
| 4. |
06.08092-2405
|
[1] |
PLUG SCREW M16 X 1.5
|
|
| 5. |
06.56190-0708
|
[1] |
RING;SEAL
|
|
| 6. |
06.02074-0317
|
[2] |
BOLT;REAMER M14X2X90
|
|
| 7. |
06.11063-8217
|
[2] |
NUT;HEX. M14
|
|
| 8. |
06.16731-2110
|
[2] |
WASHER;SPRING
|
|
| 9. |
65.90001-6002
|
[10] |
BOLT ASS'Y M12X1.5X45
|
|
