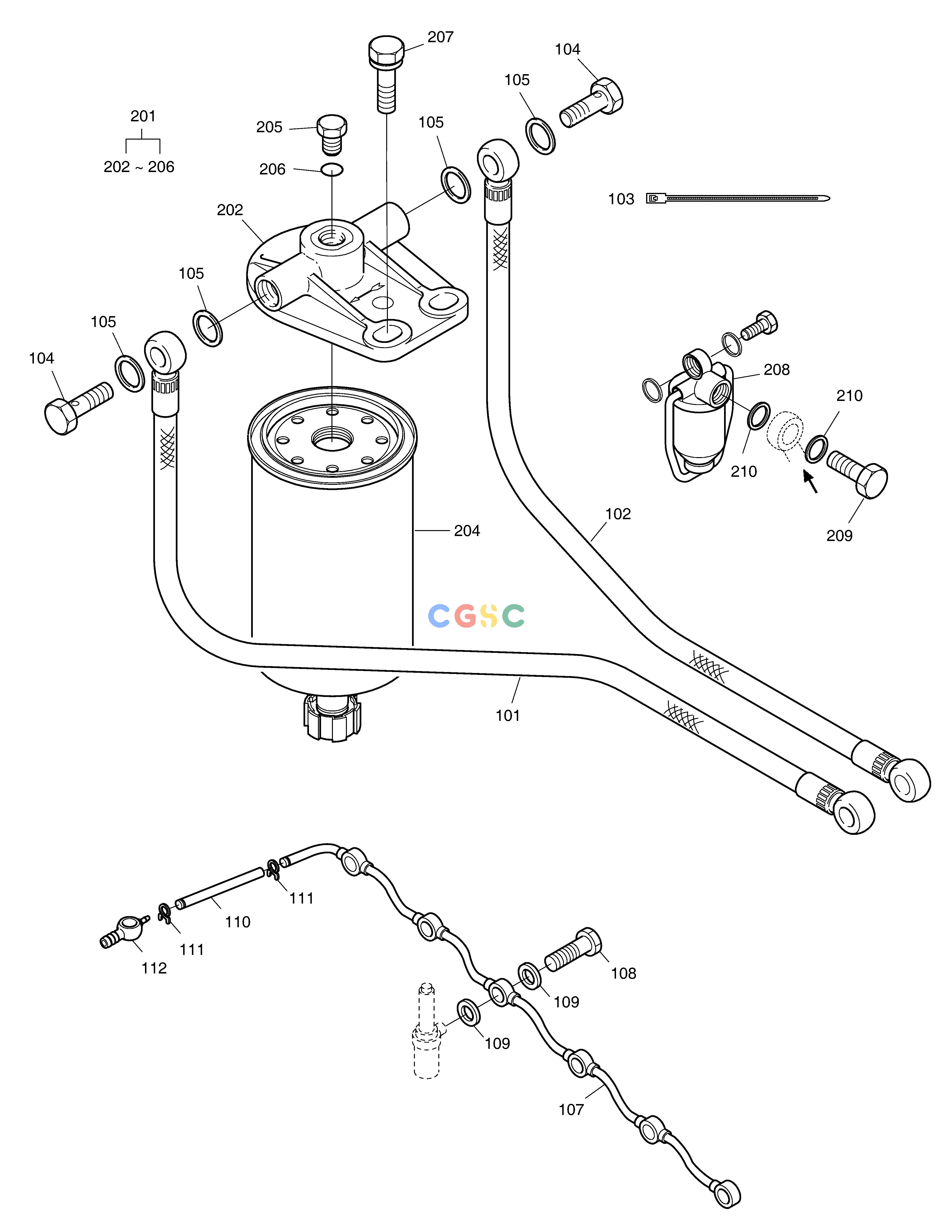

斗山零件查询FUEL FILTER MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
880 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 101. |
65.96341-0080
|
[1] |
HOSE;FUEL
|
|
| 102. |
65.96341-0107
|
[1] |
HOSE;FUEL
|
|
| 103. |
65.97460-0001
|
[1] |
BAND;TENSION
|
|
| 104. |
06.78144-2204
|
[2] |
SCREW;HOLLOW
|
|
| 105. |
06.56190-0706
|
[4] |
SEAL RING
|
|
| 107. |
65.12301-5165A
|
[1] |
FUEL PIPE ASS'Y
|
|
| 108. |
65.98150-0042A
|
[6] |
SCREW;HOLLOW
|
|
| 109. |
06.56180-0712
|
[12] |
RING;SEAL
|
|
| 110. |
65.96330-0132
|
[1] |
HOSE;FUEL
|
|
| 111. |
65.97445-0001
|
[2] |
CLAMP;SPRING
|
|
| 112. |
65.98101-0008
|
[1] |
DOUBLE BANJO UNION ASS'Y
|
|
| 201. |
65.12501-7023B
|
[1] |
FUEL FILTER ASS`Y
|
|
| 202. |
65.12504-5013B
|
[1] |
. HEAD;FUEL FILTER
|
|
| 204. |
65.12503-5016B
|
[1] |
. ELEMENT;E/G FUEL FILTER
|
|
| 205. |
65.90310-0143
|
[1] |
. SCREW;PLUG
|
|
| 206. |
06.56180-0716
|
[1] |
. RING;SEAL
|
|
| 207. |
06.01953-3318
|
[2] |
BOLT ASS`Y M12X1.5X35
|
|
| 208. |
65.12501-7019
|
[1] |
FUEL STRAINER ASS'Y
|
|
| 209. |
06.78144-2204
|
[1] |
SCREW;HOLLOW
|
|
| 210. |
06.56190-0706
|
[2] |
SEAL RING
|
|
