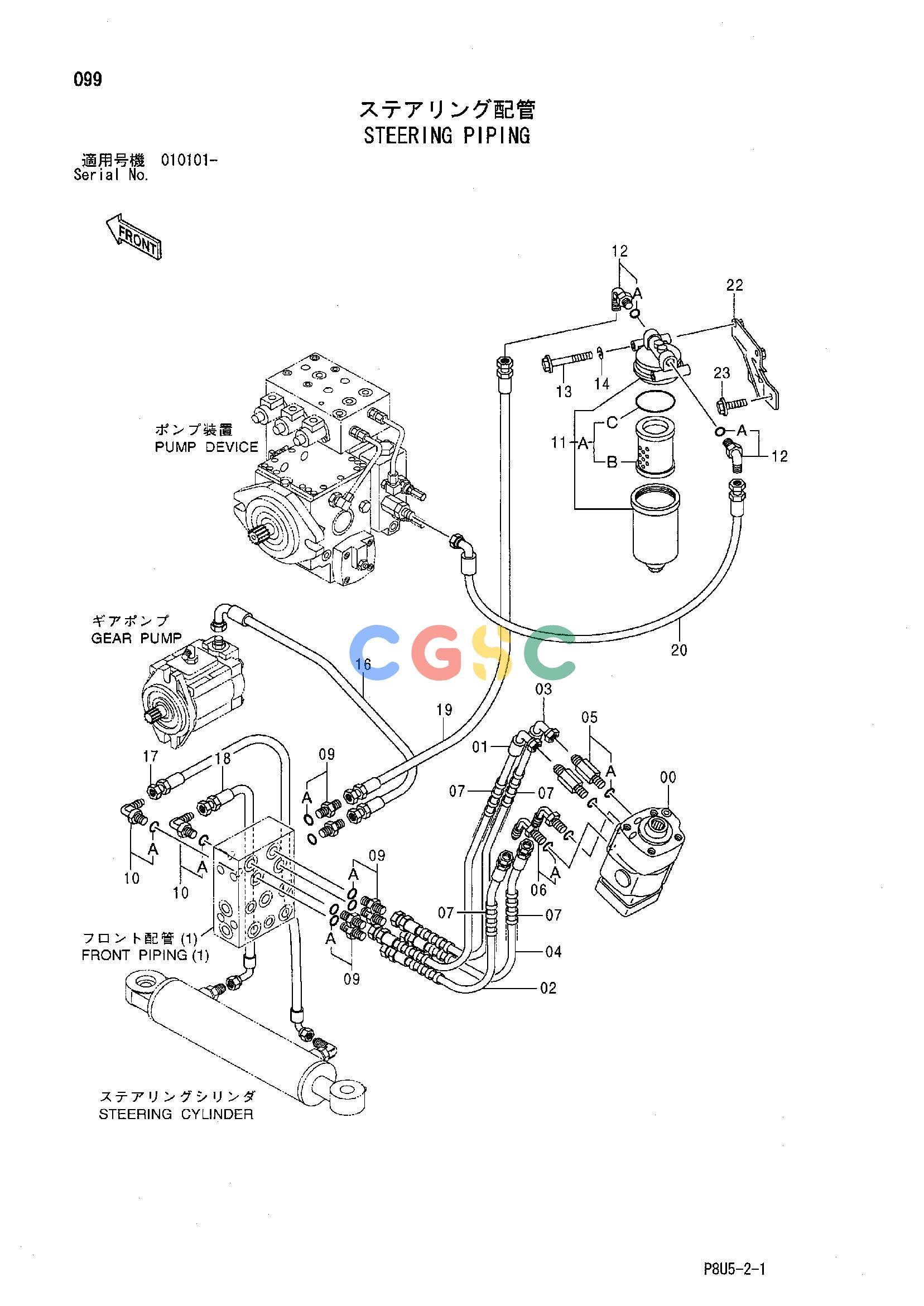

日立零件查询（CC150C-2）STEERING PIPING Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
369 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 425461 | [1] | VALVE;STEERING | |
| 01. | 425498 | [1] | HOSE | |
| 02. | 425497 | [1] | HOSE | |
| 03. | 425485 | [1] | HOSE | |
| 04. | 425503 | [1] | HOSE | |
| 05. | 425490 | [2] | ADAPTER;S | |
| 05A. | 947519 | [1] | O-RING | |
| 06. | 425491 | [2] | ELBOW;S | |
| 06A. | 947519 | [1] | O-RING | |
| 07. | 439969 | [4] | PROTECTOR | |
| 09. | 424076 | [6] | ADAPTER;S | |
| 09A. | 947519 | [1] | O-RING | |
| 10. | 424048 | [2] | ELBOW;S | |
| 10A. | 947519 | [1] | O-RING | |
| 11. | 424951 | [1] | FILTER;OIL | |
| 11A. | 424961 | [1] | ELEMENT;OIL | |
| 11B. | 424952 | [1] | ELEMENT;FILTER | |
| 11C. | 424739 | [1] | O-RING | |
| 12. | 425542 | [2] | ELBOW;S | |
| 12A. | 430623 | [1] | O-RING | |
| 13. | 500034 | [2] | BOLT | |
| 14. | 947887 | [2] | WASHER;SPRING | |
| 16. | 425501 | [1] | HOSE | |
| 17. | 425502 | [1] | HOSE | |
| 18. | 425487 | [1] | HOSE | |
| 19. | 425513 | [1] | HOSE | |
| 20. | 425515 | [1] | HOSE | |
| 22. | 425790 | [1] | BRACKET | |
| 23. | 500048 | [2] | BOLT;SEMS | |
