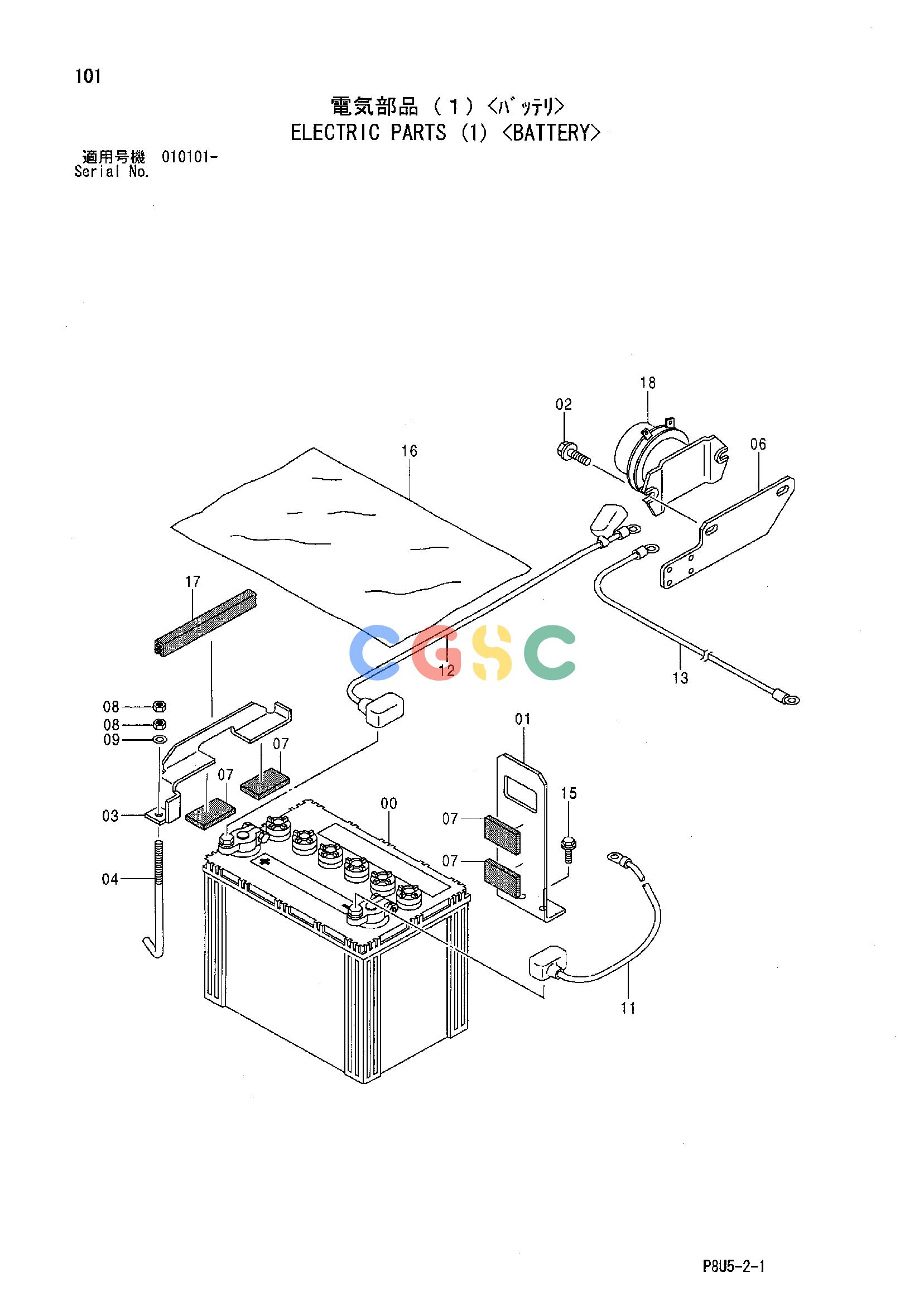

日立零件查询（CC150C-2）ELECTRIC PARTS (1) <BATTERY> Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
453 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 424974 | [1] | BATTERY | |
| 01. | 425678 | [1] | BRACKET | |
| 02. | 947623 | [2] | BOLT;SEMS | |
| 03. | 425679 | [1] | BRACKET | |
| 04. | 425599 | [1] | BOLT | |
| 06. | 425691 | [1] | PLATE | |
| 07. | 425516 | [16] | RUBBER | |
| 08. | 947853 | [2] | NUT | |
| 09. | 947322 | [1] | WASHER;PLANE | |
| 11. | 425272 | [1] | HARNESS;WIRE | (BATTERY EARTH) |
| 12. | 425642 | [1] | HARNESS;WIRE | (BATTERY - BATTERY RELAY) |
| 13. | 425643 | [1] | HARNESS;WIRE | (BATTERY RELAY - STARTER) |
| 15. | 500028 | [2] | BOLT;SEMS | |
| 16. | 425519 | [1] | COVER | |
| 17. | 425635 | [1] | CUSHION | |
| 18. | 947155 | [1] | RELAY;BATTERY | |
