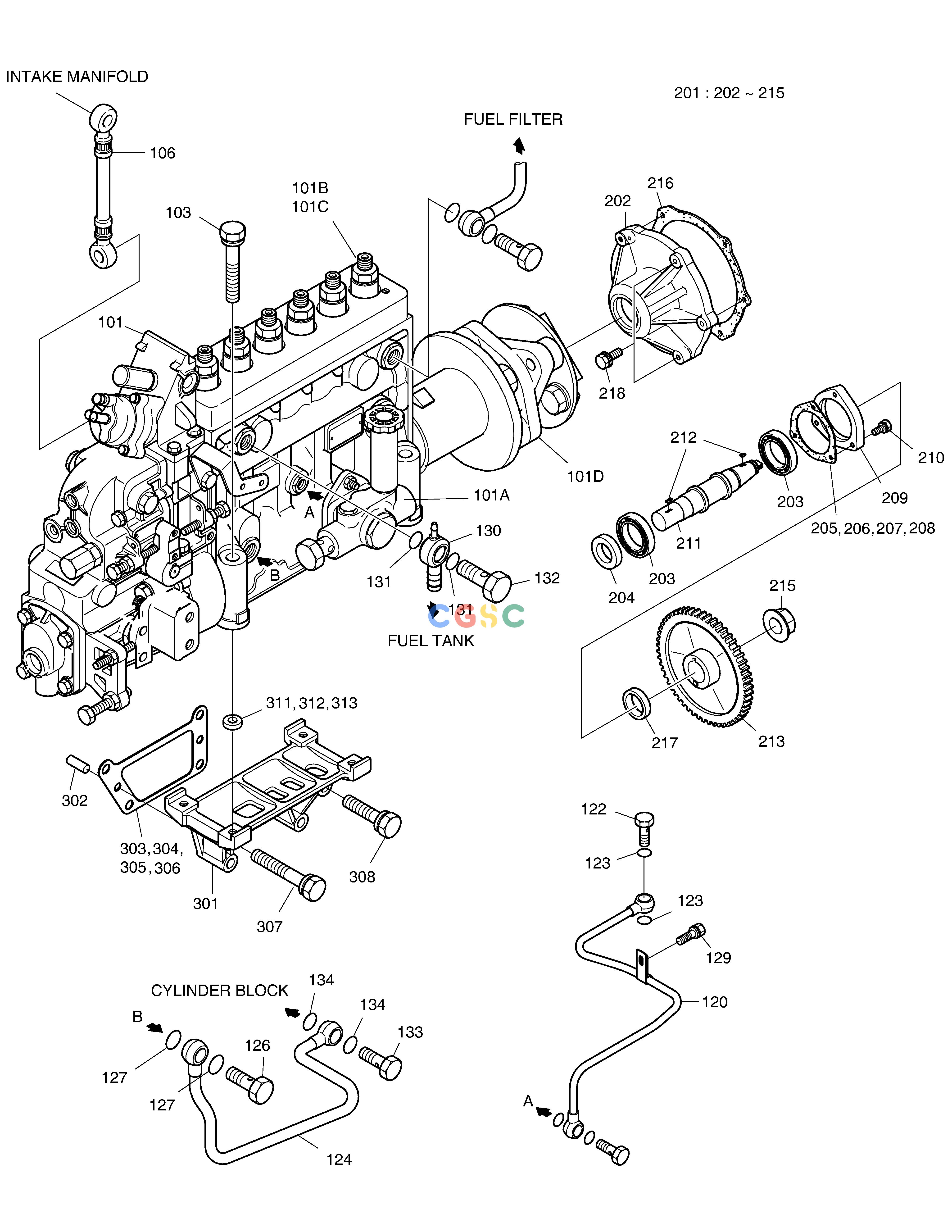

斗山零件查询INJECTION PUMP MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
271 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 101. |
65.11101-7402A
|
[1] |
|
|
| 101A. |
65.12101A7013
|
[1] |
FEED PUMP
|
|
| 101B. |
134110-9420
|
[6] |
DELIVERY VALVE
|
|
| 101C. |
134151-8820
|
[6] |
PLUNGER
|
|
| 101D. |
65.11305-6004
|
[1] |
COUPLING
|
|
| 103. |
06.01923-3228
|
[4] |
BOLT ASS'Y M10X85
|
|
| 106. |
65.08301-6012
|
[1] |
AIR HOSE ASS'Y
|
|
| 120. |
65.05701-5313
|
[1] |
PIPE;OIL
|
|
| 122. |
65.98150-0050
|
[1] |
SCREW;HOLLOW
|
|
| 123. |
06.56180-0714
|
[2] |
RING;SEAL
|
|
| 124. |
65.05701-5624
|
[1] |
PIPE;OIL
|
|
| 126. |
06.78144-2403
|
[1] |
HOLLOW SCREW M12X1.5
|
|
| 127. |
06.56190-0703
|
[2] |
RING;SEAL
|
|
| 129. |
06.01923-2910
|
[1] |
BOLT ASS'Y M6X12
|
|
| 130. |
65.98101-0008
|
[1] |
DOUBLE BANJO UNION ASS'Y
|
|
| 131. |
06.56190-0706
|
[2] |
SEAL RING
|
|
| 132. |
131424-4420
|
[1] |
VALVE;OVER FLOW
|
|
| 133. |
06.78144-2204
|
[1] |
SCREW;HOLLOW
|
|
| 134. |
06.56190-0706
|
[2] |
SEAL RING
|
|
| 201. |
65.11301-7019A
|
[1] |
INJECTION DRIVE ASS'Y
|
|
| 202. |
65.11309-0011C
|
[1] |
HOUSING;INJECTION DRIVE
|
|
| 203. |
06.32092-0308
|
[2] |
BEARING;TAPER ROLLER
|
|
| 204. |
65.01510-0038
|
[1] |
SEAL;OIL
|
|
| 206. |
65.11308-0050
|
[1] |
|
|
| 207. |
65.11308-0049
|
[1] |
|
|
| 208. |
65.11308-0048
|
[1] |
|
|
| 209. |
65.11312-0008
|
[1] |
COVER
|
|
| 210. |
06.01913-3115
|
[3] |
BOLT ASS`Y M8X25
|
|
| 211. |
65.11302-0019A
|
[1] |
SHAFT
|
|
| 212. |
06.29141-0215
|
[2] |
KEY;WOODRUFF
|
|
| 213. |
65.11301-0026A
|
[1] |
GEAR;INJECTION PUMP DRIVE
|
|
| 215. |
06.11250-4329
|
[1] |
NUT;HEX M24X1.5
|
|
| 216. |
65.11902-0017
|
[1] |
GASKET
|
|
| 217. |
65.91701-0219
|
[1] |
SPACER
|
|
| 218. |
65.90020-0079
|
[3] |
BOLT;HEX ASS'Y M10X35
|
|
| 301. |
65.11401-0033
|
[1] |
BRACKET;INJECTION PUMP
|
|
| 302. |
06.22022-1112
|
[2] |
PIN;DOWEL
|
|
| 303. |
65.11405-0005
|
[1] |
SHIM 0.10mm
|
|
| 304. |
65.11405-0006
|
[1] |
SHIM 0.15mm
|
|
| 305. |
65.11405-0007
|
[1] |
SHIM 0.20mm
|
|
| 306. |
65.11405-0008
|
[1] |
SHIM 0.50mm
|
|
| 307. |
06.01943-3332
|
[2] |
BOLT ASS'Y M12X1.5X110
|
|
| 308. |
06.01943-7324
|
[2] |
BOLT ASS'Y M12X65
|
|
| 311. |
65.11405-0009
|
[4] |
SHIM 0.10mm
|
|
| 312. |
65.11405-0010
|
[4] |
SHIM 0.30mm
|
|
| 313. |
65.11405-0013
|
[4] |
SHIM 0.20mm
|
|
