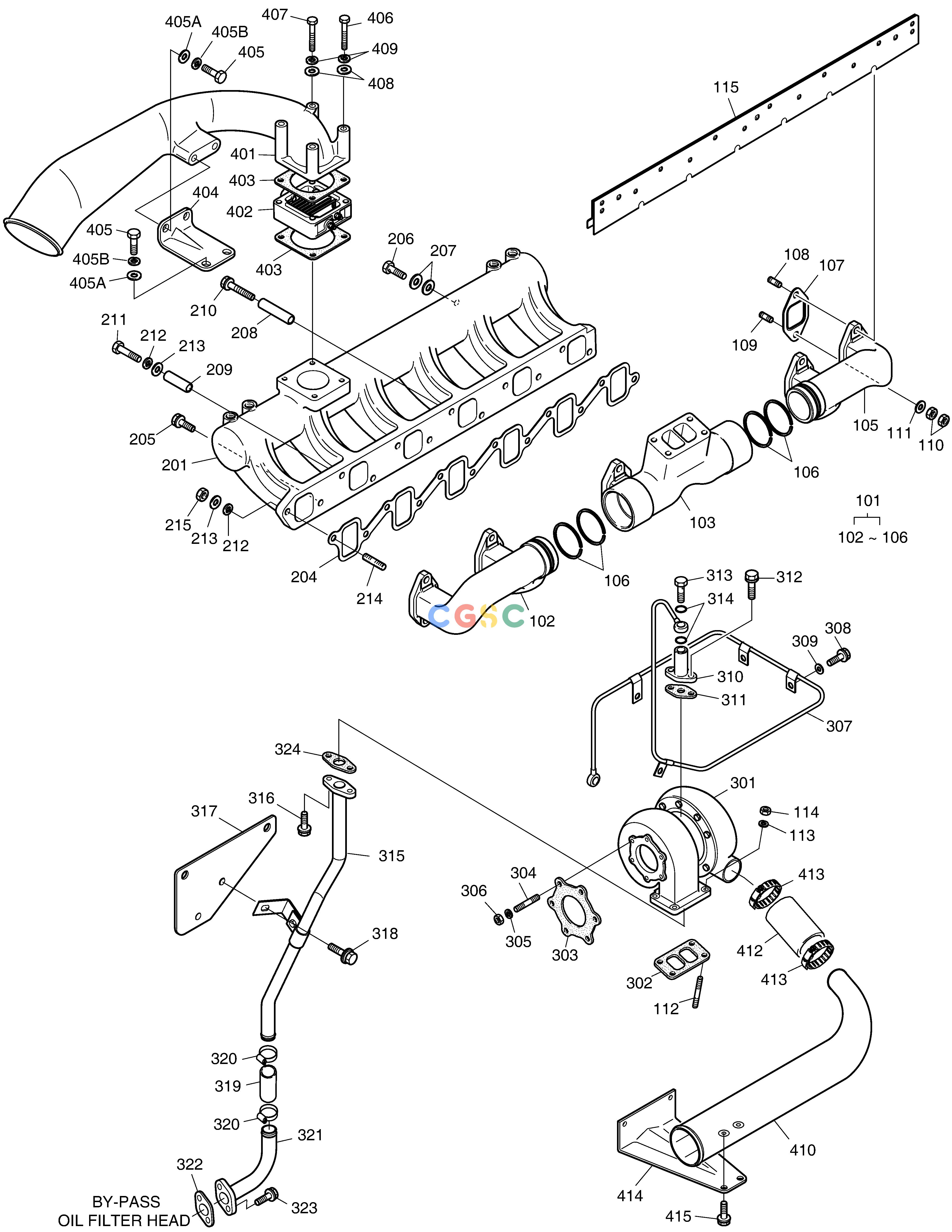

斗山零件查询INTAKE & EXHAUST MANIFOLD MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
906 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 101. |
65.08100-6059
|
[1] |
EXHAUST MANIFOLD ASS'Y
|
|
| 102. |
65.08101-0181A
|
[1] |
MANIFOLD;EXHAUST(FRONT)
|
|
| 103. |
65.08101-0525
|
[1] |
MANIFOLD;EXHAUST(CENTER)
|
|
| 105. |
65.08101-0183A
|
[1] |
MANIFOLD;EXHAUST(REAR)
|
|
| 106. |
65.08105-0001
|
[4] |
RING
|
|
| 107. |
65.08901-0044
|
[6] |
GASKET;EXHAUST MANIFOLD
|
|
| 108. |
65.90201-0094
|
[6] |
BOLT;STUD
|
|
| 109. |
65.90201-0154
|
[6] |
BOLT;STUD M12X1.5X10
|
|
| 110. |
06.11063-8215
|
[22] |
NUT;HEX. M10
|
|
| 111. |
06.15010-2312
|
[12] |
WASHER;PLAIN
|
|
| 112. |
65.90201-0076
|
[4] |
. BOLT;STUD
|
|
| 113. |
06.16731-2108
|
[4] |
WASHER;SPRING
|
|
| 114. |
65.90535-0001
|
[4] |
NUT
|
|
| 115. |
65.08120-5008G
|
[1] |
SCREEN;HEAT&CYL HEAD
|
|
| 201. |
65.08201-5057
|
[1] |
MANIFOLD;INTAKE
|
|
| 204. |
65.08902-0025
|
[1] |
GASKET;INTAKE MANIFOLD
|
|
| 205. |
06.01923-3218
|
[8] |
BOLT ASS`Y M10X35
|
|
| 206. |
65.98150-0053B
|
[1] |
SCREW;HOLLOW
|
|
| 207. |
06.56180-0714
|
[2] |
RING;SEAL
|
|
| 208. |
65.91701-0470
|
[1] |
SPACER(92mm)
|
|
| 209. |
65.91701-0533
|
[1] |
SPACER(44mm)
|
|
| 210. |
06.01913-3234
|
[1] |
BOLT ASS`Y M10X130
|
|
| 211. |
06.01013-9221
|
[1] |
BOLT;HEX. M10X80
|
|
| 212. |
06.16731-2108
|
[3] |
WASHER;SPRING
|
|
| 213. |
06.15010-2312
|
[3] |
WASHER;PLAIN
|
|
| 214. |
65.90201-0080
|
[2] |
BOLT;STUD
|
|
| 215. |
06.11063-8215
|
[2] |
NUT;HEX. M10
|
|
| 301. |
65.09100-7065
|
[1] |
TURBO CHARGER ASS'Y
|
|
| 302. |
65.09901-0033
|
[1] |
GASKET;TURBO CHARGER
|
|
| 303. |
65.08901-0063
|
[1] |
GASKET;EXHAUST ELBOW
|
|
| 304. |
65.90201-0181
|
[6] |
BOLT;STUD
|
|
| 305. |
06.16731-2108
|
[6] |
WASHER;SPRING
|
|
| 306. |
06.11063-8215
|
[6] |
NUT;HEX. M10
|
|
| 307. |
65.05701-5652
|
[1] |
OIL PIPE ASS'Y
|
|
| 308. |
06.01943-3317
|
[2] |
BOLT ASS`Y M12X1.5X30
|
|
| 309. |
06.15010-2313
|
[2] |
WASHER;PLAIN
|
|
| 310. |
65.98131-5008
|
[1] |
FLANGE;ADPTER
|
|
| 311. |
65.96601-0046A
|
[1] |
GASKET;OIL PIPE ADAPTER
|
|
| 312. |
06.01913-3113
|
[2] |
.. BOLT ASS`Y M8X20
|
|
| 313. |
06.78144-2403
|
[1] |
HOLLOW SCREW M12X1.5
|
|
| 314. |
06.56180-0714
|
[2] |
RING;SEAL
|
|
| 315. |
65.05701-5653A
|
[1] |
PIPE;OIL
|
|
| 316. |
06.01913-3114
|
[2] |
BOLT ASS`Y M8X22
|
|
| 317. |
65.05740-5002
|
[1] |
BRACKET;OIL PIPE
|
|
| 318. |
06.01923-3114
|
[1] |
BOLT ASS`Y M8X22
|
|
| 319. |
65.96301-0327A
|
[1] |
HOSE;RUBBER
|
|
| 320. |
06.67020-0106
|
[2] |
CLAMP;HOSE
|
|
| 321. |
65.05701-5654
|
[1] |
PIPE;OIL
|
|
| 322. |
65.96601-0045A
|
[1] |
GASKET
|
|
| 323. |
06.01913-3114
|
[2] |
BOLT ASS`Y M8X22
|
|
| 324. |
65.05903-0030A
|
[1] |
GASKET;OIL RETURN PIPE
|
|
| 401. |
65.08202-5053A
|
[1] |
STAKE;INTAKE
|
|
| 402. |
65.26803-7028B
|
[1] |
AIR HEATER
|
|
| 403. |
65.09904-0008
|
[2] |
GASKET;AIR HEATER
|
|
| 404. |
65.08240-0019
|
[1] |
BRACKET;INTAKE STAKE
|
|
| 405. |
06.01733-4309
|
[4] |
BOLT;HEX. M12X1.5X25
|
|
| 405A. |
06.15010-2313
|
[4] |
WASHER;PLAIN
|
|
| 405B. |
06.16731-2109
|
[4] |
WASHER;SPRING A12
|
|
| 406. |
06.01013-9127
|
[2] |
BOLT M8X120
|
|
| 407. |
06.01013-9128
|
[2] |
BOLT;HEX. M8X130
|
|
| 408. |
06.15010-2311
|
[4] |
WASHER
|
|
| 409. |
06.16731-2107
|
[4] |
WASHER
|
|
| 410. |
65.09411-5037
|
[1] |
INLET
|
|
| 412. |
65.96301-0268
|
[1] |
HOSE
|
|
| 413. |
06.67020-0112
|
[2] |
CLAMP;HOSE
|
|
| 414. |
65.09440-0007
|
[1] |
BRACKET
|
|
| 415. |
06.01923-3215
|
[2] |
BOLT ASS`Y M10X25
|
|
