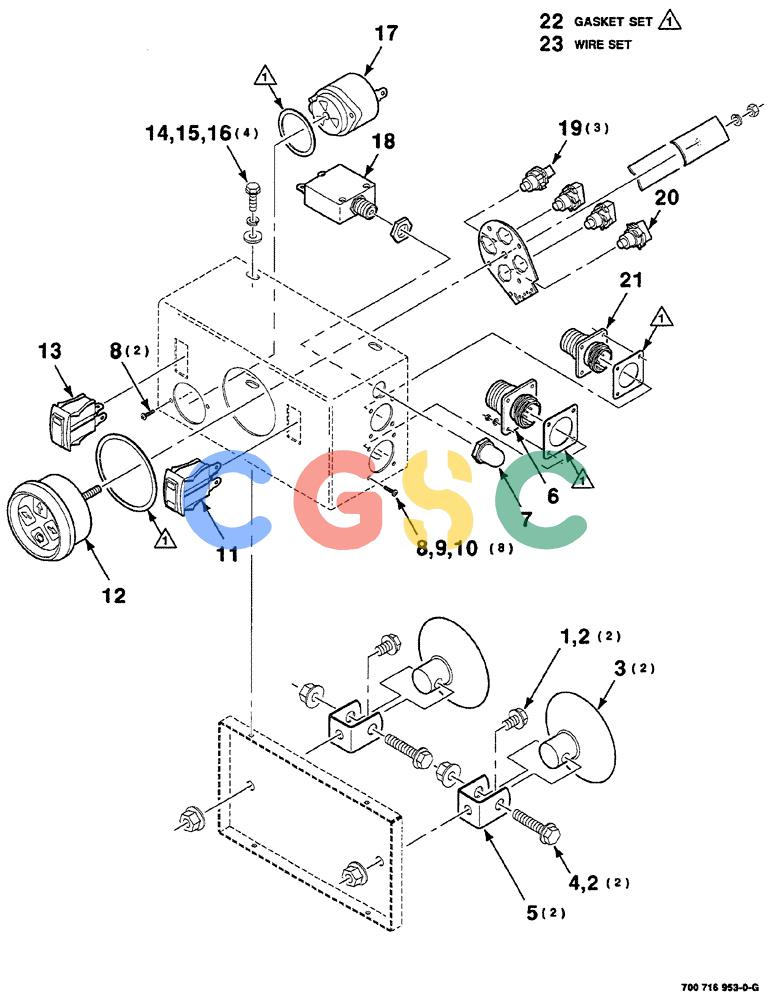

凯斯零件查询(RS561) - CASE IH ROUND BALER (1/99-12/00) (04-024) - ELECTRICAL CONTROL BOX ASSEMBLY (WITHOUT MESH WRAP) Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
179 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
700716953
|
[1] |
CASE
|
L
CONTROL BOX ASSEMBLY
|
| 1. |
256873
|
[2] |
BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd
|
NH
|
| 2. |
232-5315
|
[4] |
FLANGE NUT,Flg, 5/16"-18
|
CAS
hex flange top lock, 5/16-18 GR/G
|
| 3. |
700714802
|
[2] |
CUP
|
CAS
suction
|
| 4. |
409-7524
|
[2] |
BOLT,Hex Flg, 5/16" - 18 x 1 1/2", Spcl
|
CAS
hex flange serrated, 5/16-18 x 1-1/2 Superseded by part number: 86512170
|
| 5. |
700132408
|
[2] |
MOUNTING PARTS
|
CAS
|
| 6. |
700707758
|
[1] |
CONTAINER
|
CAS
9 PIN amp receptacle
|
| 7. |
700716260
|
[1] |
COVER
|
CAS
fuse
|
| 8. |
182-5
|
[10] |
SCREW,Sl Pan Hd, #4 - 40 x 3/8"
|
CAS
|
| 9. |
492-11004
|
[8] |
LOCK WASHER,#4
|
CAS
Superseded by part number: 84877
|
| 10. |
225-14104
|
[8] |
NUT,#4-40
|
CAS
Superseded by part number: 280385
|
| 11. |
700714798
|
[1] |
SWITCH
|
CAS
full bale
|
| 12. |
700716955
|
[1] |
LIGHT
|
CAS
DISPLAY MODULE (includes hardware)
|
| 13. |
700714799
|
[1] |
SWITCH
|
CAS
power
|
| 14. |
7884331
|
[4] |
SCREW
|
CAS
hex washer head thread cutting tapping, #10-32 x 1/2
|
| 15. |
492-11010
|
[4] |
LOCK WASHER,#10
|
CAS
Superseded by part number: 80684
|
| 16. |
495-31022
|
[4] |
WASHER,#10
|
CAS
Superseded by part number: 88612
|
| 17. |
700703984
|
[1] |
INDICATOR
|
IH
audio
|
| 18. |
700701663
|
[1] |
BREAKER
|
CAS
circuit
|
| 19. |
700719876
|
[3] |
BULB
|
HFI
LAMP ASSEMBLY, led, green
|
| 20. |
700719877
|
[1] |
BULB
|
HFI
LAMP ASSEMBLY, led, red
|
| 21. |
700707757
|
[1] |
CONTAINER
|
CAS
4 PIN amp receptacle
|
| 22. |
700716255
|
[1] |
KIT
|
CAS
gasket set
|
| 23. |
700716695
|
[1] |
HARNESS
|
CAS
SET wire
|
