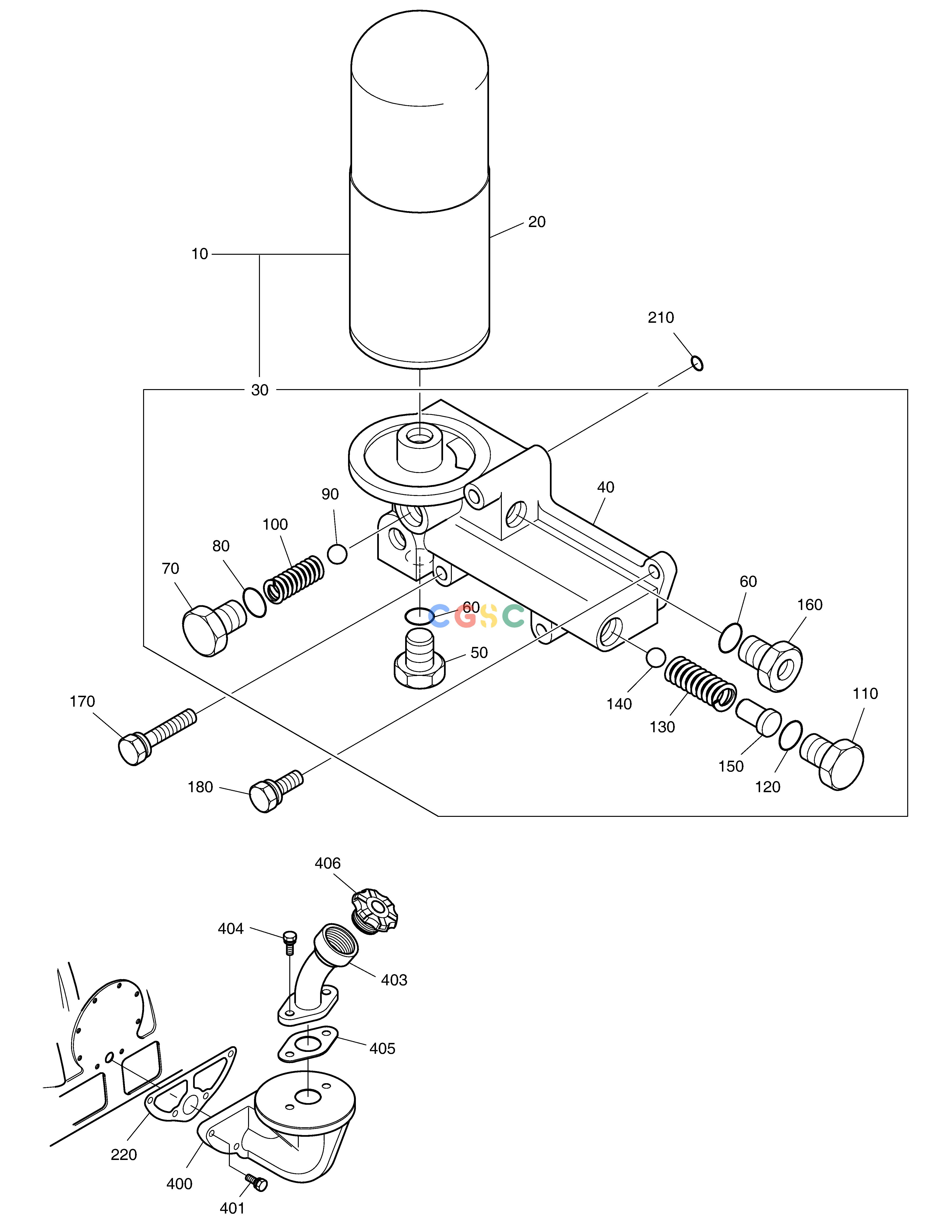

斗山零件查询OIL FILTER MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
1010 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 10. |
65.05501-7058F
|
[1] |
OIL FILTER ASS'Y
|
|
| 100. |
65.97601-0075
|
[1] |
. SPRING
|
|
| 110. |
65.90301-0034
|
[1] |
SCREW;PLUG
|
|
| 120. |
06.56190-0728
|
[1] |
RING;SEAL
|
|
| 130. |
65.97601-0004
|
[1] |
SPRING
|
|
| 140. |
06.31641-0433
|
[1] |
. BALL;STEEL
|
|
| 150. |
06.22230-1214
|
[1] |
PIN
|
|
| 160. |
06.08062-1208
|
[1] |
SCREW;PLUG
|
|
| 170. |
06.01953-3331
|
[4] |
BOLT ASS'Y M12X1.5X100
|
|
| 180. |
06.01953-3318
|
[1] |
BOLT ASS`Y M12X1.5X35
|
|
| 20. |
65.05510-5020A
|
[1] |
CARTRIDGE;OIL FILTER
|
|
| 210. |
65.96501-0061
|
[2] |
O-RING
|
|
| 220. |
65.01908-0010
|
[1] |
GASKET
|
|
| 30. |
65.05503-5038B
|
[1] |
OIL FILTER HEAD ASS'Y
|
|
| 40. |
65.05503-0031B
|
[1] |
HEAD;OIL FILTER
|
|
| 400. |
65.01814-5012
|
[1] |
HOUSING. OIL FILTER
|
|
| 401. |
06.01923-3117
|
[4] |
. BOLT ASS`Y M8X30
|
|
| 403. |
65.05701-5454
|
[1] |
PIPE;OIL
|
|
| 404. |
06.01923-3217
|
[2] |
BOLT ASS`Y M10X30
|
|
| 405. |
65.96601-0054
|
[1] |
GASKET(C/W PIPE FLANGE)
|
|
| 406. |
65.01810-5011
|
[1] |
CAP;OIL FILLER
|
|
| 50. |
65.90310-0121
|
[1] |
SCREW;PLUG
|
|
| 60. |
06.56190-0722
|
[2] |
RING;SEAL
|
|
| 70. |
65.90310-0115
|
[1] |
. PLUG
|
|
| 80. |
06.56190-0726
|
[1] |
. SEAL;RING
|
|
| 90. |
06.31641-0433
|
[1] |
. BALL;STEEL
|
|
