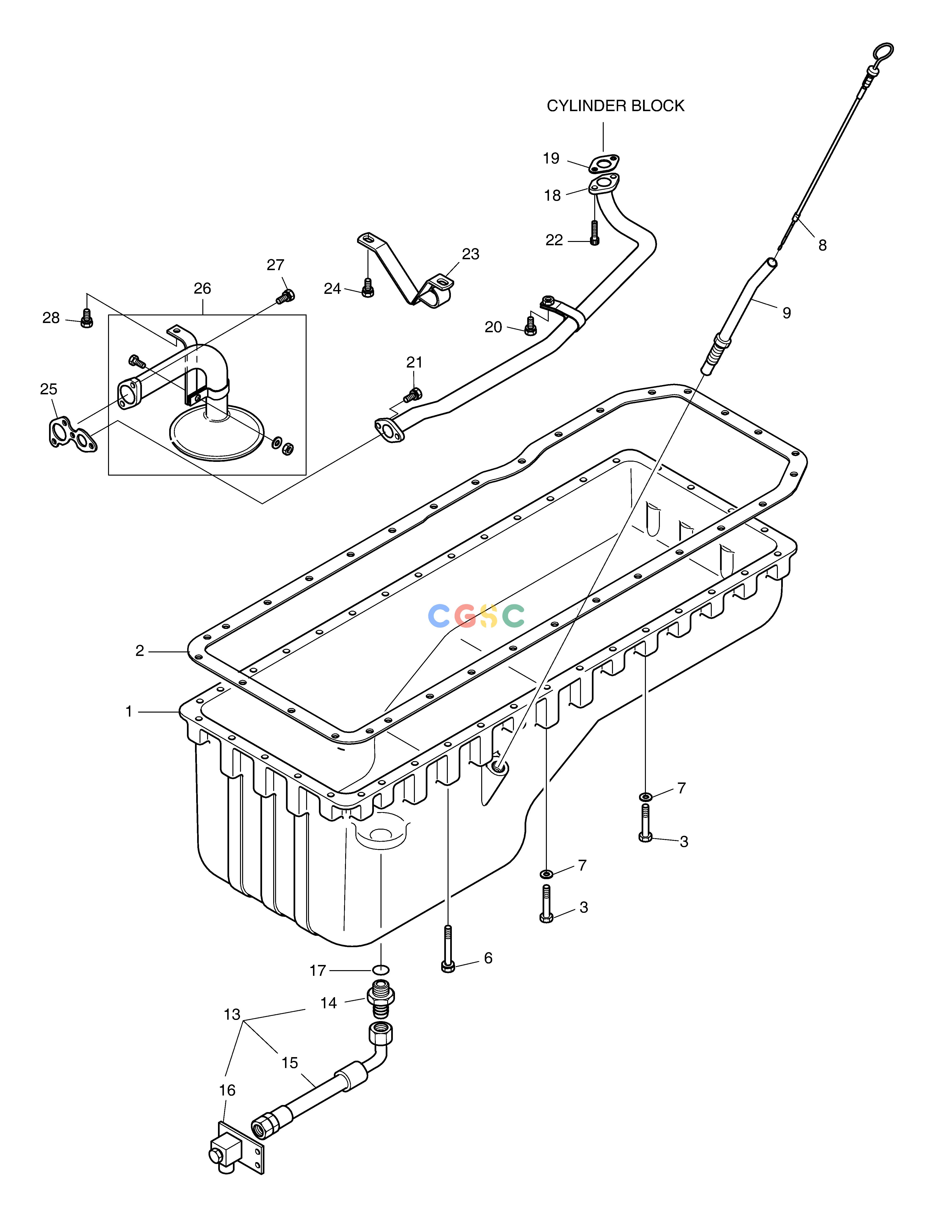

斗山零件查询OIL PAN MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
171 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.05801-5379
|
[1] |
OIL PAN ASS'Y
|
|
| 13. |
65.96340-6006
|
[1] |
DRAIN HOSE ASS'Y
|
|
| 14. |
65.98130-0203
|
[1] |
ADAPTER
|
|
| 15. |
65.96340-5028
|
[1] |
HOSE;RUBBER
|
|
| 16. |
65.98125-5004A
|
[1] |
. COCK;DRAIN
|
|
| 17. |
06.56190-0732
|
[1] |
SEAL;RING
|
|
| 18. |
65.05701-5322A
|
[1] |
OIL PIPE ASS'Y
|
|
| 19. |
65.96601-0043
|
[1] |
GASKET
|
|
| 2. |
65.05904-0096A
|
[1] |
GASKET;OIL PAN
|
|
| 20. |
06.01913-3115
|
[1] |
BOLT ASS`Y M8X25
|
|
| 21. |
06.01913-3113
|
[2] |
.. BOLT ASS`Y M8X20
|
|
| 22. |
65.90001-6005
|
[2] |
BOLT;SOCKET
|
|
| 23. |
65.05740-2042
|
[1] |
BRACKET
|
|
| 24. |
06.01923-3112
|
[2] |
BOLT ASS`Y M8X18
|
|
| 25. |
65.05903-0027A
|
[1] |
GASKET
|
|
| 26. |
65.05701-6042B
|
[1] |
OIL SUCTION PIPE ASS'Y
|
|
| 27. |
06.01913-3114
|
[2] |
BOLT ASS`Y M8X22
|
|
| 28. |
65.90020-0068
|
[1] |
BOLT ASS'Y M8X16
|
|
| 3. |
65.90001-6010
|
[30] |
BOLT ASS'Y M8X38
|
|
| 6. |
06.01923-3124
|
[2] |
BOLT ASS`Y M8X65
|
|
| 7. |
06.15010-2311
|
[30] |
WASHER
|
|
| 8. |
65.05805-5197A
|
[1] |
GAUGE;OIL LEVEL
|
|
| 9. |
65.05806-5005
|
[1] |
TUBE;OIL LEVEL
|
|
