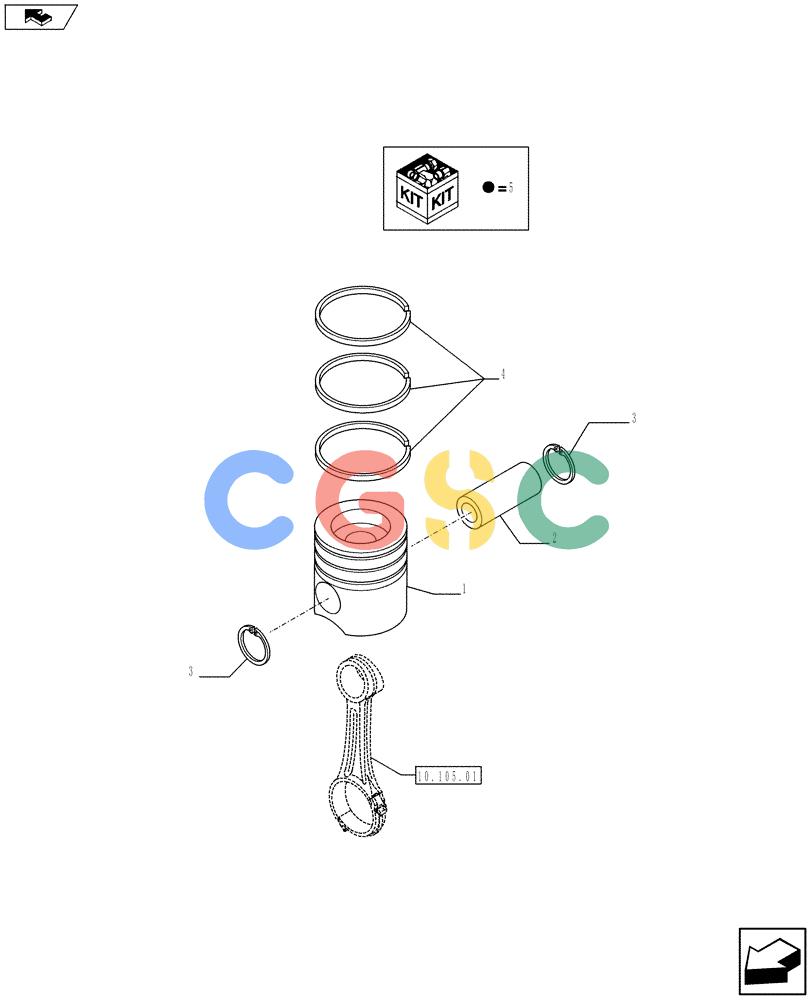

神钢零件查询(F4HFE6131 A005) - ENGINE 5801425077 - 84387924 (1/11-) (10.105.02) - PISTON, ENGINE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
1009 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2. | 4892712 | [6] | PISTON PIN,38mm OD x 82mm L | TOR |
| 3. | 2854030 | [12] | SNAP RING,M40.8 OD | TOR Superseded by part number: 504093651 |
| 4. | 2854603 | [6] | PISTON RING | BHBCompression |
| 4. | 2852037 | [6] | SEAL,95.3mm ID x 104mm OD x 4mm Thk | TOR Superseded by part number: 98486083 |
| 4. | 2830158 | [6] | PISTON RING,95.4mm ID x 104mm OD x 2.39mm Thk | TORCompression |
| 5. | 87582179 | [1] | PISTON RINGS KIT | TORStandard Superseded by part number: 8094845 |
| 5. | 87582180 | [1] | PISTON RINGS KIT | TOROversize 0.4 mm Superseded by part number: 87316944 |
