斗山零件查询AXLE & DRIVE SHAFT MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
996 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

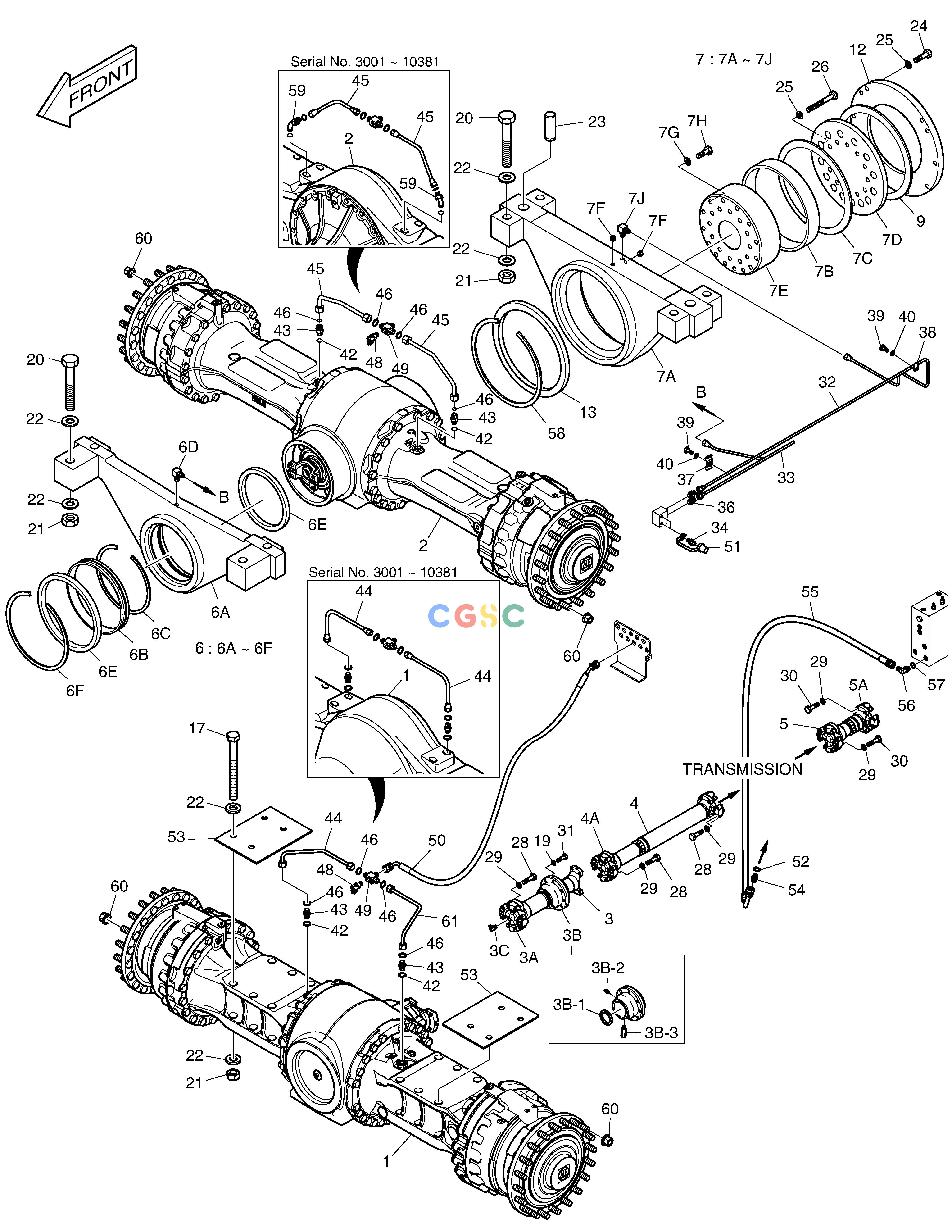

211-00129G
|
[-] |
AXLE & DRIVE SHAFT ASS'Y
|
|
| 1. |
190102-00025A
|
[1] |
|
|
| 1. |
211-00130C
|
[1] |
AXLE;FRONT
|
|
| 12. |
621-02255A
|
[1] |
COVER
|
|
| 13. |
K1008000
|
[1] |
SEAL;OIL
|
|
| 17. |
DS0002266
|
[8] |
BOLT
|
|
| 19. |
4114-1791A
|
[6] |
WASHER;HARD
|
|
| 2. |
190103-00046A
|
[1] |
|
|
| 2. |
211-00131E
|
[1] |
AXLE;REAR
|
|
| 20. |
DS0002264
|
[8] |
BOLT M30X2.0X210
|
|
| 21. |
S4033533
|
[16] |
NUT
|
|
| 22. |
K1039519
|
[32] |
WASHER;HARD
|
|
| 22. |
DS0401184
|
[32] |
WASHER;HARD
|
K1039519
|
| 23. |
K1006164A
|
[2] |
PIN
|
|
| 24. |
S0765466
|
[12] |
BOLT M16X1.5X60
|
|
| 25. |
S5102906
|
[26] |
WASHER;SPRING
|
|
| 26. |
S0766866
|
[14] |
BOLT M16X1.5X130
|
|
| 28. |
DS0002268
|
[12] |
BOLT
|
|
| 29. |
4114-1686
|
[20] |
WASHER;SPRING
|
|
| 3. |
112-00068B
|
[1] |
DRIVE SHAFT;FRONT
|
|
| 30. |
DS0002267
|
[8] |
BOLT
|
|
| 31. |
S0565666
|
[6] |
BOLT
|
|
| 32. |
140-01318
|
[1] |
PIPE
|
|
| 33. |
140-01319
|
[1] |
PIPE
|
|
| 34. |
S6710041
|
[2] |
NIPPLE,GREASE
|
|
| 36. |
2181-1919D10
|
[2] |
ADAPTER
|
|
| 37. |
4124-4047
|
[1] |
CLIP;PIPE
|
|
| 38. |
2124-1248
|
[1] |
CLIP;PIPE
|
|
| 39. |
S0508766
|
[2] |
BOLT
|
|
| 3A. |
1.138-00022
|
[1] |
JOINT;UNIVERSAL
|
|
| 3B. |
K9000985
|
[1] |
FLANGE BEARING ASS'Y
|
|
| 3B-1. |
K9006949
|
[4] |
SEAL
|
|
| 3B-2. |
K9003622
|
[1] |
NIPPLE;GREASE
|
|
| 3B-3. |
K9000987
|
[1] |
VALVE;AIR-RELIEF
|
|
| 3C. |
101552-00724
|
[1] |
NIPPLE
|
|
| 4. |
112-00090
|
[1] |
DRIVE SHAFT;CENTER
|
|
| 40. |
S5102503
|
[2] |
. WASHER
|
|
| 42. |
S8040061
|
[4] |
O-RING
|
|
| 42. |
DS2851076
|
[4] |
|
|
| 43. |
DS2232139
|
[2] |
ADAPTER
|
|
| 43. |
DS2232161
|
[4] |
|
|
| 44. |
K1042995
|
[2] |
PIPE;BRAKE
|
|
| 44. |
420210-00312
|
[1] |
|
|
| 45. |
K1043455
|
[2] |
PIPE;BRAKE
|
|
| 45. |
K1057180
|
[2] |
|
|
| 46. |
S8030081
|
[8] |
O-RING
|
|
| 48. |
120-00002
|
[2] |
SCREW
|
|
| 49. |
DS2499001
|
[2] |
TEE
|
|
| 4A. |
1.138-00022
|
[2] |
JOINT;UNIVERSAL
|
|
| 5. |
112-00065A
|
[1] |
DRIVE SHAFT;REAR
|
|
| 50. |
DS2021090
|
[1] |
HOSE
|
|
| 51. |
160-00020
|
[2] |
CAP
|
|
| 52. |
S8180191
|
[1] |
PACKING
|
|
| 53. |
191-02519
|
[2] |
PLATE
|
|
| 54. |
DS2227056
|
[1] |
ADAPTER
|
|
| 55. |
2184-1036D249
|
[1] |
HOSE PF3/8-1600L
|
|
| 56. |
2181-1702D5
|
[1] |
ELBOW
|
|
| 57. |
S8000141
|
[1] |
O-RING
|
|
| 58. |
114-00552
|
[1] |
RING;RETAINING
|
|
| 59. |
DS2338033
|
[2] |
ELBOW
|
|
| 5A. |
1.138-00021
|
[2] |
JOINT;UNIVERSAL
|
|
| 6. |
195-02181C
|
[1] |
FRONT SUPPORT ASS'Y;REAR AXLE
|
|
| 60. |
K1014277
|
[80] |
NUT;WHEEL
|
K1002433
|
| 60. |
K1002433
|
[80] |
NUT;WHEEL
|
|
| 61. |
420210-00311
|
[1] |
|
|
| 6A. |
195-02150
|
[1] |
PIVOT BEARING;FRONT
|
|
| 6B. |
110-00225A
|
[1] |
BUSHING
|
|
| 6C. |
114-00533
|
[1] |
RING;RETAINING
|
|
| 6D. |
2181-1918D6
|
[1] |
ELBOW
|
|
| 6E. |
K1007997
|
[2] |
SEAL;OIL
|
|
| 6F. |
114-00534
|
[1] |
RING;RETAINING
|
|
| 7. |
195-02182A
|
[1] |
REAR SUPPORT ASS'Y;REAR AXLE
|
|
| 7A. |
195-02158
|
[1] |
PIVOT BEARING;REAR
|
|
| 7B. |
408-00022
|
[1] |
BUSHING
|
|
| 7C. |
K1016419
|
[1] |
WASHER;THRUST
|
|
| 7D. |
114-00535
|
[1] |
DISC
|
|
| 7E. |
112-00062
|
[1] |
SHAFT;PIVOT
|
|
| 7F. |
2181-1116D2
|
[2] |
PLUG
|
|
| 7G. |
S5102901
|
[10] |
. WASHER;SPRING
|
|
| 7H. |
S0765461
|
[10] |
BOLT M16X1.5X60
|
|
| 7J. |
2181-1918D6
|
[1] |
ELBOW
|
|
| 9. |
K1016419
|
[1] |
WASHER;THRUST
|
|
