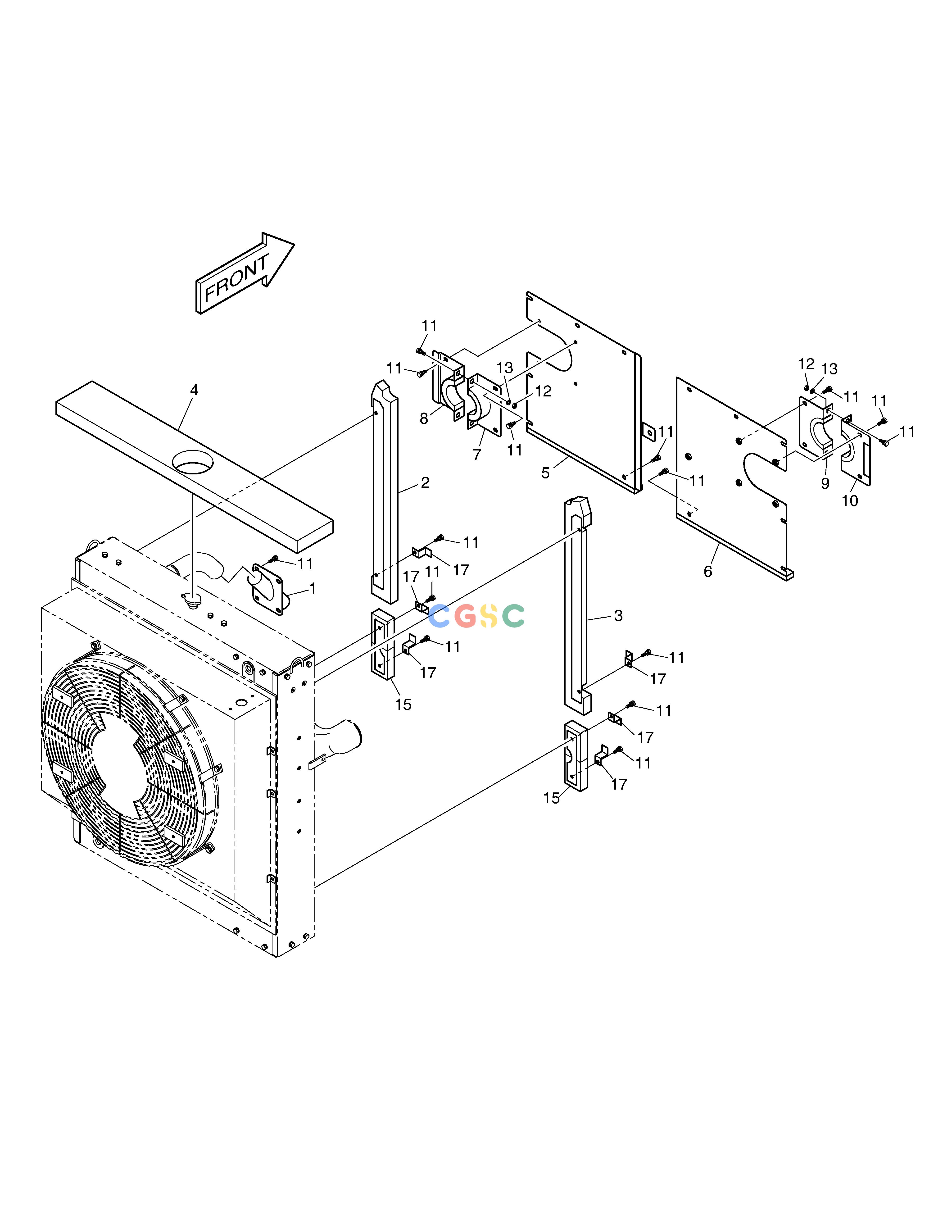

斗山零件查询BAFFLE ASS'Y MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
818 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
464-00032A
|
[-] |
BAFFLE ASS'Y
|
|
| 1. |
182-00016
|
[1] |
PIPE
|
|
| 10. |
621-00649A
|
[1] |
COVER
|
|
| 11. |
2120-2196D2
|
[37] |
BOLT;SET M10X1.5X25
|
|
| 12. |
S4012633
|
[4] |
NUT
|
|
| 13. |
2114-1058D10
|
[4] |
WASHER
|
|
| 15. |
464-00038
|
[2] |
FOAM;POLYURETHANE
|
|
| 17. |
124-00057A
|
[8] |
CLAMP
|
|
| 2. |
464-00029C
|
[1] |
BAFFLE
|
|
| 3. |
464-00030C
|
[1] |
BAFFLE
|
|
| 4. |
161-00191B
|
[1] |
BAFFLE
|
|
| 5. |
621-00644B
|
[1] |
COVER
|
|
| 6. |
621-00645B
|
[1] |
COVER
|
|
| 7. |
621-00646A
|
[1] |
COVER
|
|
| 8. |
621-00647A
|
[1] |
COVER
|
|
| 9. |
621-00648B
|
[1] |
COVER
|
|
