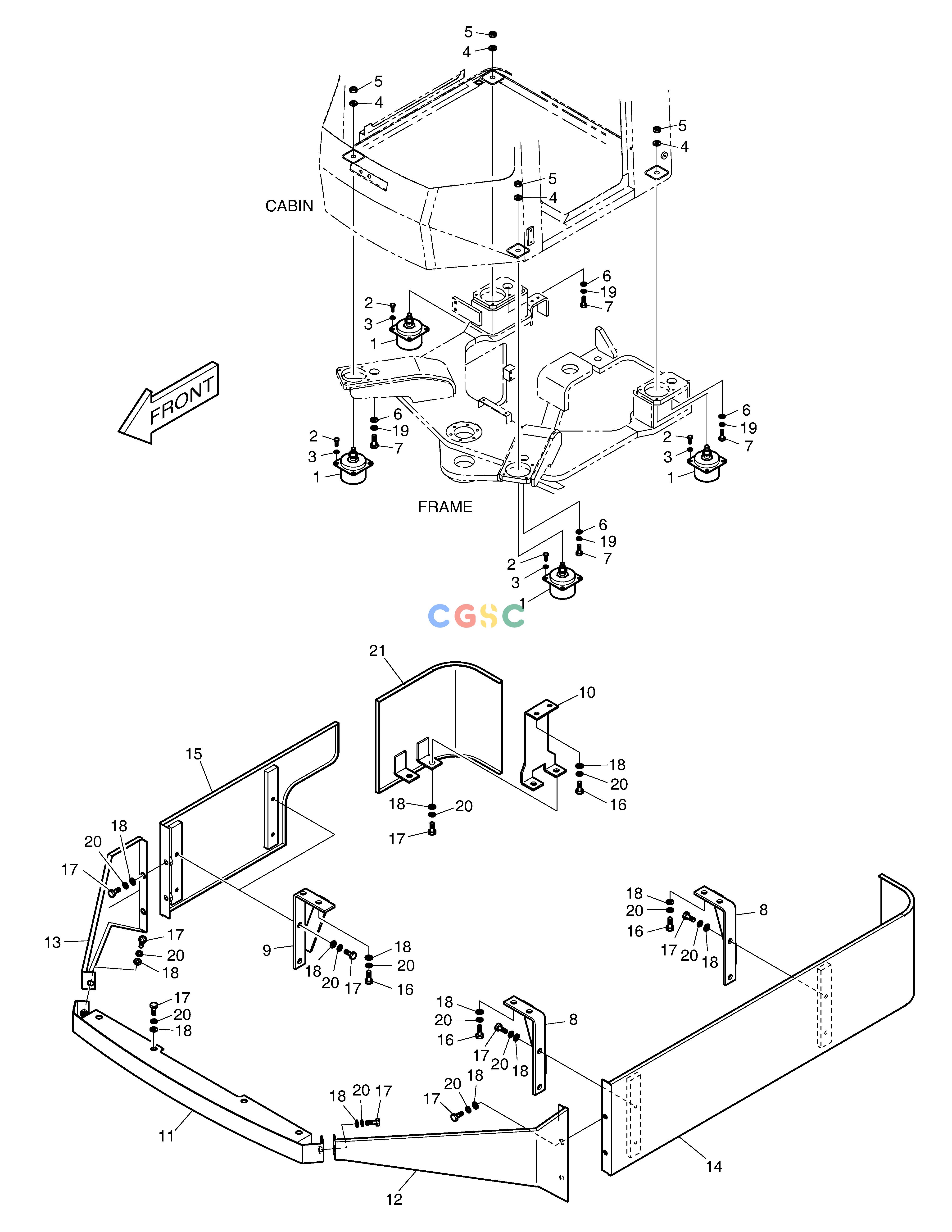

斗山零件查询CABIN MOUNTING MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
817 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
621-00759
|
[-] |
CABIN MOUNTING
|
|
| 1. |
2161-9057
|
[4] |
CABIN MOUNT;FRONT
|
|
| 10. |
195-02191A
|
[1] |
BRACKET
|
|
| 11. |
621-01233A
|
[1] |
COVER;CENTER
|
|
| 12. |
621-01234B
|
[1] |
COVER;L.H
|
|
| 13. |
621-01235B
|
[1] |
COVER;R.H
|
|
| 14. |
621-02519
|
[1] |
COVER(L.H)
|
|
| 15. |
621-01775A
|
[1] |
COVER;R.H
|
|
| 16. |
S0509053
|
[10] |
. BOLT
|
|
| 17. |
S0508853
|
[20] |
. BOLT
|
|
| 18. |
2114-1058D29
|
[30] |
WASHER
|
|
| 19. |
S5103103
|
[4] |
WASHER
|
|
| 2. |
S0512066
|
[16] |
. BOLT
|
|
| 20. |
S5102503
|
[30] |
. WASHER
|
|
| 21. |
621-01776E
|
[1] |
COVER;R.H
|
|
| 3. |
2114-1898D1
|
[16] |
WASHER
|
|
| 4. |
2114-1058D2
|
[4] |
WAHSER
|
|
| 5. |
2121-9007
|
[4] |
NUT
|
|
| 6. |
2114-1058D76
|
[4] |
WASHER
|
|
| 7. |
S0569866
|
[4] |
BOLT M20X2.5X50
|
|
| 8. |
195-01278
|
[2] |
BRACKET
|
|
| 9. |
195-01288
|
[2] |
BRACKET
|
|
