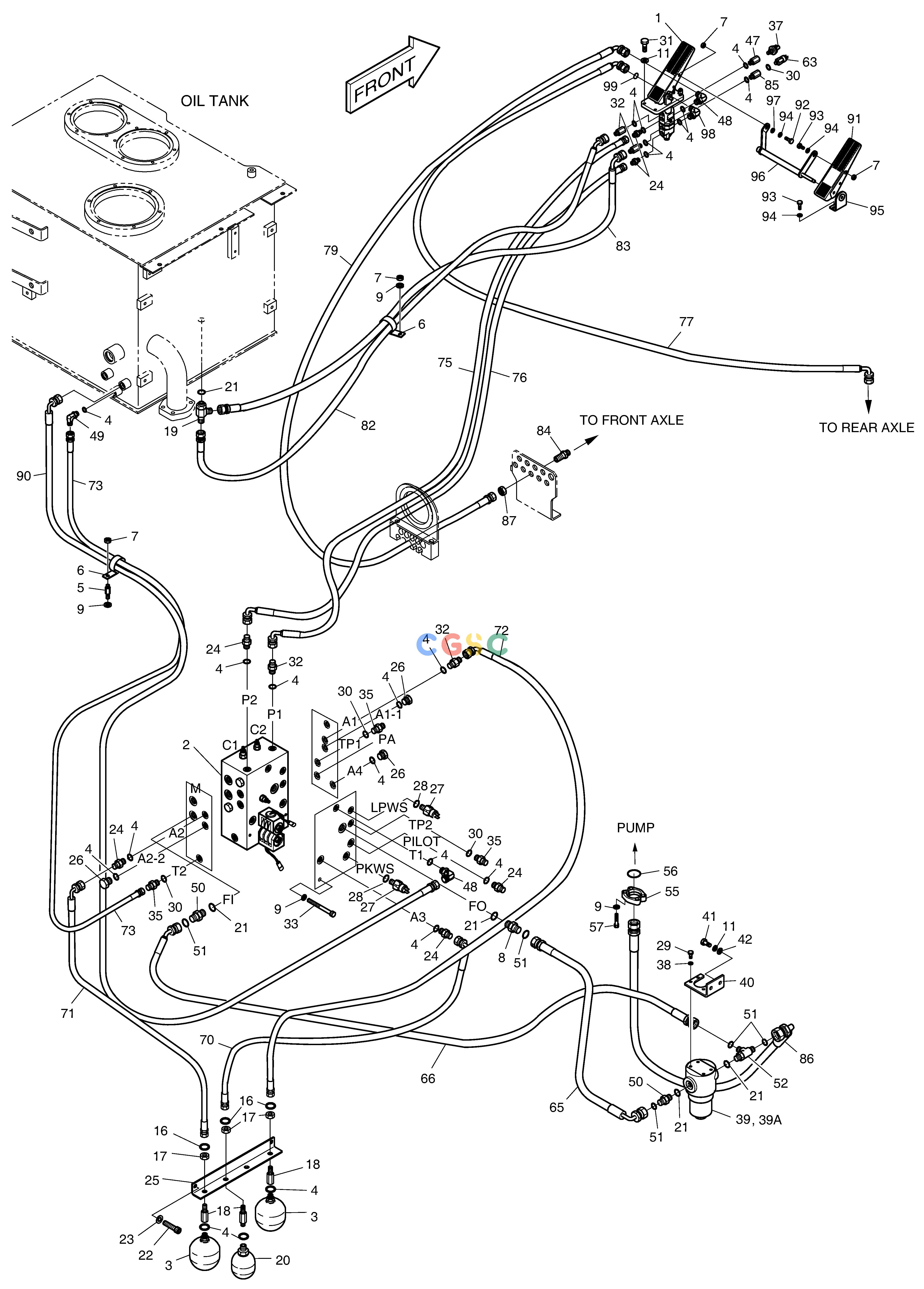

斗山零件查询BRAKE PIPING MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
693 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-01825G
|
[-] |
BRAKE PIPING ASSY
|
|
| 1. |
420-00179C
|
[1] |
VALVE;BRAKE PEDAL
|
|
| 11. |
S5102503
|
[6] |
. WASHER
|
|
| 16. |
121-00010D1
|
[3] |
NUT
|
|
| 17. |
S5111001
|
[3] |
WASHER;SPRING
|
|
| 18. |
181-00524
|
[3] |
ADAPTER
|
|
| 19. |
2181-1951D31
|
[3] |
TEE
|
|
| 2. |
420-00079C
|
[1] |
BRAKE & PILOT VALVE
|
|
| 20. |
2460-9054
|
[1] |
ACCUMULATOR
|
|
| 21. |
S8000181
|
[5] |
O-RING
|
|
| 22. |
S2214866
|
[2] |
BOLT;SOCKET M12X1.75X20
|
|
| 23. |
S5102703
|
[2] |
WASHER
|
|
| 24. |
2181-1126D7
|
[6] |
ADAPTER
|
|
| 25. |
195-01794
|
[1] |
BRACKET
|
|
| 26. |
2181-1950D2
|
[3] |
PLUG
|
|
| 27. |
2549-9093
|
[2] |
SWITCH;LOW PRESSURE
|
|
| 28. |
S8180211
|
[2] |
SEAL;RING
|
|
| 29. |
S0504553
|
[4] |
BOLT
|
|
| 3. |
K1014741
|
[2] |
ACCUMULATOR
|
|
| 30. |
S8000111
|
[4] |
O-RING
|
|
| 31. |
S0509353
|
[4] |
BOLT M8X1.25X35
|
|
| 32. |
2181-1126D27
|
[4] |
ADAPTER
|
|
| 33. |
S2213666
|
[2] |
BOLT;SOCKET M10X1.5X100
|
|
| 35. |
2181-1126D14
|
[3] |
ADAPTER
|
|
| 37. |
549-00010
|
[1] |
SWITCH;PRESSURE
|
|
| 38. |
S5102303
|
[4] |
. WASHER
|
|
| 39. |
2471-9054A
|
[1] |
FILTER;PILOT
|
|
| 39A. |
2474-9063
|
[1] |
ELEMENT;FILTER
|
|
| 4. |
S8000141
|
[22] |
O-RING
|
|
| 40. |
195-00623
|
[1] |
PLATE
|
|
| 41. |
S0508853
|
[2] |
. BOLT
|
|
| 42. |
S5010513
|
[2] |
WASHER
|
|
| 47. |
181-00182
|
[1] |
REDUCER
|
|
| 48. |
2181-1702D5
|
[2] |
ELBOW
|
|
| 49. |
2181-1702D10
|
[1] |
ELBOW
|
|
| 5. |
2120-2172
|
[1] |
BOLT;STUD
|
|
| 50. |
2181-4133D3
|
[2] |
ADAPTER
|
|
| 51. |
S8030081
|
[5] |
O-RING
|
|
| 52. |
181-00121D10
|
[1] |
TEE
|
|
| 55. |
2181-9079
|
[2] |
FLANGE
|
|
| 56. |
2180-1026D2
|
[1] |
O-RING
|
|
| 57. |
S2212366
|
[4] |
BOLT
|
|
| 6. |
2124-1509D7
|
[2] |
CLIP;HOSE
|
|
| 63. |
4549-9080
|
[1] |
SWITCH;T/M CUT OFF
|
|
| 65. |
2184-1197D208
|
[1] |
HOSE 900L
|
|
| 66. |
DS2012158
|
[1] |
HOSE 950L
|
|
| 7. |
S4012533
|
[5] |
NUT
|
|
| 70. |
2184-1036D256
|
[1] |
HOSE PF3/8-650L
|
|
| 71. |
2184-1036D5
|
[1] |
HOSE PF3/8-700L
|
|
| 72. |
2184-1036D163
|
[1] |
HOSE PF3/8-800L
|
|
| 73. |
2184-1026D408
|
[1] |
HOSE PF1/4-1600L
|
|
| 75. |
2184-1036D427
|
[1] |
HOSE PF3/8-1170L
|
|
| 76. |
2184-1036D181
|
[1] |
HOSE PF3/8-1200L
|
|
| 77. |
DS2023195
|
[1] |
HOSE
|
|
| 79. |
2184-1036D426
|
[1] |
HOSE PF3/8-1450L
|
|
| 8. |
2181-4133D37
|
[1] |
ADAPTER
|
|
| 82. |
2184-1060D203
|
[1] |
HOSE PF3/8-1700L
|
|
| 83. |
2184-1036D249
|
[1] |
HOSE PF3/8-1600L
|
|
| 84. |
K1045050
|
[1] |
ADAPTER;JOINT
|
|
| 85. |
2181-2337D13
|
[1] |
REDUCER
|
|
| 86. |
DS2025030
|
[1] |
HOSE 1000L
|
|
| 87. |
DS0301032
|
[1] |
NUT
|
|
| 9. |
S5102603
|
[8] |
. WASHER
|
|
| 90. |
2184-1036D266
|
[1] |
HOSE PF3/8-1650L
|
|
| 91. |
134-00008
|
[1] |
PEDAL;BRAKE
|
|
| 92. |
2120-2166D30
|
[1] |
BOLT M8X1.25X30
|
|
| 93. |
2120-2166D16
|
[3] |
BOLT
|
|
| 94. |
2114-1898D14
|
[4] |
WASHER
|
|
| 95. |
195-00614B
|
[1] |
BRACKET
|
|
| 96. |
136-00018C
|
[1] |
ROD;BRAKE
|
|
| 97. |
DS5201075
|
[1] |
SPACER
|
|
| 98. |
S8030061
|
[1] |
O-RING
|
|
| 99. |
2181-2816D6
|
[1] |
ELBOW
|
|
