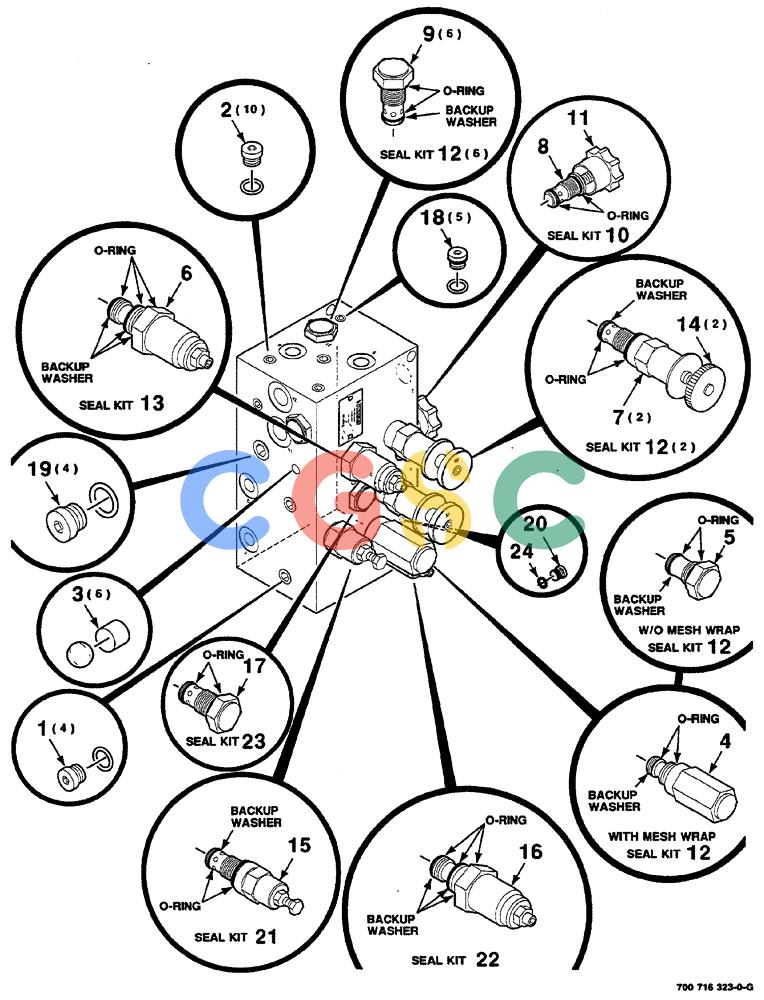

凯斯零件查询(RS561) - CASE IH ROUND BALER (1/99-12/00) (08-020) - HYDRAULIC CONTROL VALVE ASSEMBLY (BALE TENSION) Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
752 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
700716323
|
[1] |
VALVE
|
CAS
HYDRAULIC ASSEMBLY COMPLETE Superseded by part number: 700726843
|
| 1. |
700707840
|
[4] |
PLUG
|
HFI
SAE 9/16-18 (includes O-ring)
|
| 2. |
700715661
|
[10] |
PLUG
|
CAS
SAE 1/2-20
|
| 3. |
700718282
|
[6] |
PLUG
|
CAS
expander
|
| 4. |
700717962
|
[1] |
VALVE
|
CAS
relief, 3000 PSI (with mesh wrap)
|
| 5. |
700706602
|
[1] |
PLUG
|
CAS
cavity, C-10-2 (Includes: Ref. 12) (W/O mesh wrap) Superseded by part number: 920018484
|
| 6. |
700718278
|
[1] |
VALVE
|
CAS
counterbalance
|
| 7. |
700718281
|
[2] |
VALVE
|
CAS
relief, 2650 PSI
|
| 8. |
700715658
|
[1] |
VALVE
|
CAS
needle
|
| 9. |
700715651
|
[6] |
VALVE
|
CAS
check Superseded by part number: 87026290
|
| 10. |
700715663
|
[1] |
KIT
|
CAS
seal Superseded by part number: 86978349
|
| 11. |
700715674
|
[1] |
KNOB
|
CAS
KIT
|
| 12. |
149942C1
|
[10] |
SEAL KIT
|
IH
Superseded by part number: 86508168
|
| 13. |
700718410
|
[1] |
KIT
|
CAS
seal Superseded by part number: 190709A1
|
| 14. |
700715666
|
[2] |
KNOB
|
CAS
KIT
|
| 15. |
700718279
|
[1] |
VALVE
|
CAS
kick down sequence
|
| 16. |
700719875
|
[1] |
VALVE
|
HFI
counterbalance
|
| 17. |
700717726
|
[1] |
VALVE
|
CAS
piloted check Superseded by part number: 87585738
|
| 18. |
700707835
|
[5] |
PLUG
|
CAS
SAE 7/16-20 (includes O-ring)
|
| 19. |
700711505
|
[4] |
PLUG
|
CAS
SAE 3/4-16
|
| 20. |
218-5151
|
[1] |
PLUG,Hex Hd, 5/16"-24 ORB
|
CAS
SAE 5/16-24 (Includes: Ref. 24)
|
| 21. |
700717670
|
[1] |
KIT
|
CAS
seal
|
| 22. |
700715665
|
[1] |
KIT
|
CAS
seal Superseded by part number: 87609274
|
| 23. |
700718409
|
[1] |
KIT
|
CAS
seal Superseded by part number: S301087
|
| 24. |
238-5010
|
[1] |
O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro
|
CAS
Superseded by part number: 49886
|
