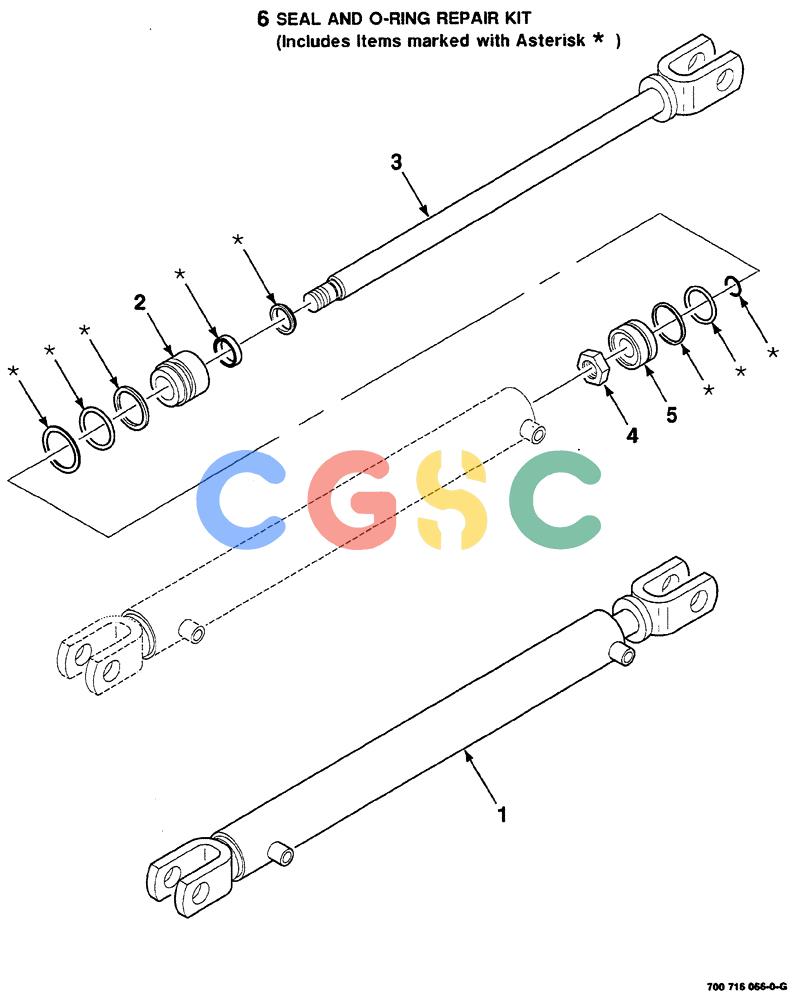

凯斯零件查询(RS561) - CASE IH ROUND BALER (1/99-12/00) (08-022) - HYDRAULIC CYLINDER ASM.-TAILGATE (WITHOUT MESH WRAP) (2 INCH BORE X 24 INCH STROKE) Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
437 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700716066
|
[1] |
CYLINDER
|
CAS
HYDRAULIC ASM. COMPLETE (2 inch bore x 24 inch stroke)
|
| 2. |
700712477
|
[1] |
GUIDE
|
CAS
ROD
|
| 3. |
700718145
|
[1] |
ROD
|
CAS
PISTON
|
| 4. |
700707418
|
[1] |
JAM NUT
|
CAS
UNF hex jam, 7/8-14
|
| 5. |
700707419
|
[1] |
PISTON
|
CAS
|
| 6. |
700718144
|
[1] |
KIT
|
CAS
seal and O-ring repair, includes items in art marked with asterisk.
|
