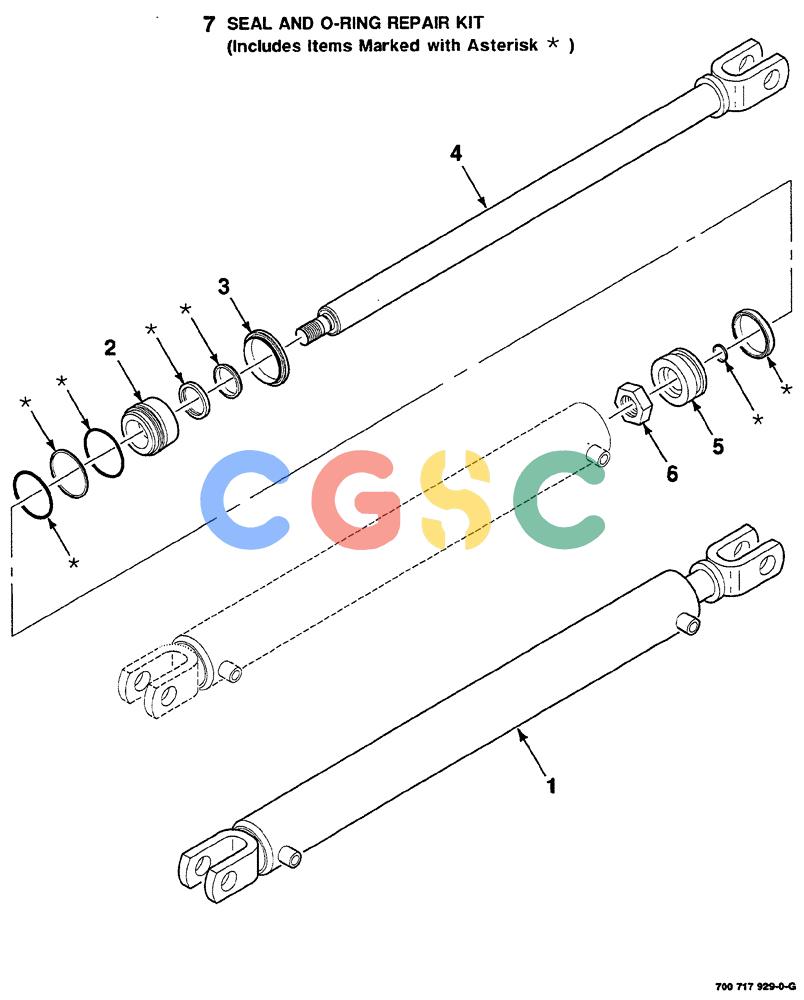

凯斯零件查询(RS561) - CASE IH ROUND BALER (1/99-12/00) (08-024) - HYDRAULIC CYLINDER ASM.-TAILGATE (WITH MESH WRAP) (2-1/2 INCH BORE X 24 INCH STROKE) Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
583 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700717929
|
[1] |
CYLINDER
|
CAS
HYDRAULIC ASM. COMPLETE (2-1/2 inch bore x 24 inch stroke)
|
| 2. |
700718149
|
[1] |
GUIDE
|
CAS
ROD
|
| 3. |
700718150
|
[1] |
NUT
|
CAS
spanner
|
| 4. |
700718147
|
[1] |
ROD
|
CAS
PISTON
|
| 5. |
700710421
|
[1] |
PISTON
|
CAS
|
| 6. |
774315
|
[1] |
NUT
|
CAS
hex top lock, 7/8-14 GR C
|
| 7. |
700718146
|
[1] |
KIT
|
CAS
seal and O-ring repair, includes items in art marked with asterisk.
|
