斗山零件查询CONTROL VALVE PIPING - 2SPOOL MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
371 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

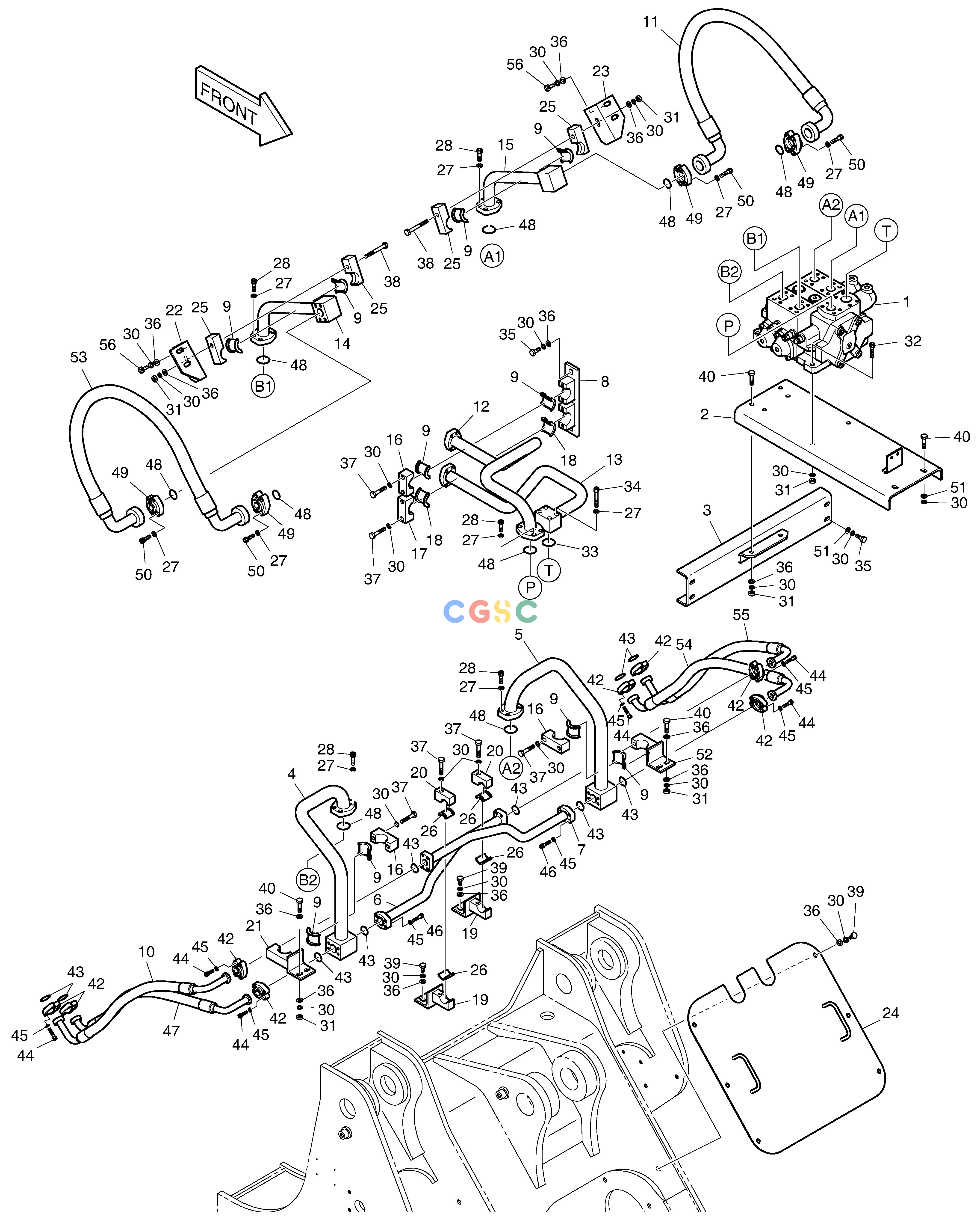

K1007582
|
[-] |
CONTROL VALVE PIPING
|
|
| 1. |
K1007986
|
[1] |
CONTROL VALVE-2 SPOOL
|
|
| 10. |
DS2045217
|
[1] |
HOSE;BOOM 1050L
|
|
| 11. |
DS2045209
|
[1] |
HOSE;BUCKET 1500L
|
|
| 12. |
K1007937
|
[1] |
PIPE;PUMP
|
|
| 13. |
K1007938
|
[1] |
PIPE;RETURN
|
|
| 14. |
K1007574
|
[1] |
PIPE;BUCKET DUMP
|
|
| 15. |
K1007573
|
[1] |
PIPE;BUCKET CROWD
|
|
| 16. |
191-00364
|
[3] |
CLAMP;PIPE
|
|
| 17. |
191-00365
|
[1] |
CLAMP;PIPE
|
|
| 18. |
198-00008
|
[2] |
RUBBER
|
|
| 19. |
195-00541A
|
[2] |
BRACKET;CONTROL PIPE
|
|
| 2. |
K1007579
|
[1] |
SUPPORT
|
|
| 20. |
191-00366
|
[2] |
CLAMP;PIPE
|
|
| 21. |
K1007569
|
[1] |
BRACKET;CONTROL PIPE
|
|
| 22. |
195-00931B
|
[1] |
ANGLE;R.H
|
|
| 23. |
195-00932B
|
[1] |
ANGLE;L.H
|
|
| 24. |
K1008149
|
[1] |
COVER
|
|
| 25. |
124-00049
|
[4] |
CLAMP;PIPE
|
|
| 26. |
2161-2267A
|
[4] |
RUBBER
|
|
| 27. |
S5110703
|
[40] |
WASHER
|
|
| 28. |
S2215466
|
[20] |
BOLT
|
|
| 3. |
K1007586
|
[1] |
SUPPORT
|
|
| 30. |
S5102703
|
[44] |
WASHER
|
|
| 31. |
S4012733
|
[12] |
NUT
|
|
| 32. |
S2215666
|
[4] |
BOLT;SOCKET
|
|
| 33. |
2180-1026D24
|
[1] |
O-RING
|
|
| 34. |
S2216166
|
[4] |
BOLT;SOCKET M12X1.75X75
|
|
| 35. |
S0560453
|
[6] |
BOLT M12X1.75X35
|
|
| 36. |
2114-1058D46
|
[28] |
WASHER
|
|
| 37. |
S0561153
|
[10] |
BOLT M12X1.75X70
|
|
| 38. |
S0562053
|
[2] |
BOLT M12X1.75X115
|
|
| 39. |
S0515053
|
[10] |
BOLT M12X1.75X25
|
|
| 4. |
K1007576
|
[1] |
PIPE(R.H);BOOM DOWN
|
|
| 40. |
S0560753
|
[8] |
BOLT M12X1.75X50
|
|
| 42. |
2181-9078
|
[16] |
FLANGE;SPLIT
|
|
| 43. |
2180-1026D19
|
[10] |
O-RING
|
|
| 44. |
S2212266
|
[32] |
BOLT
|
|
| 45. |
S5110603
|
[40] |
WASHER
|
|
| 46. |
S2212466
|
[8] |
BOLT
|
|
| 47. |
DS2045215
|
[1] |
HOSE;BOOM 1"-970L
|
|
| 48. |
2180-1026D23
|
[9] |
O-RING
|
|
| 49. |
4215-1003D7
|
[8] |
FLANGE;HALF
|
|
| 5. |
K1007575
|
[1] |
PIPE(L.H);BOOM UP
|
|
| 50. |
S2215366
|
[16] |
BOLT
|
|
| 51. |
2114-1058D30
|
[6] |
. WASHER
|
|
| 52. |
K1007571
|
[1] |
BRACKET;L.H
|
|
| 53. |
DS2045332
|
[1] |
HOSE;BUCKET 1.25"-1440L
|
|
| 54. |
DS2045218
|
[1] |
HOSE;BOOM 1"-1050L
|
|
| 55. |
DS2045216
|
[1] |
HOSE;BOOM 1"-970L
|
|
| 56. |
S0515153
|
[4] |
BOLT M12X1.75X28
|
|
| 6. |
193-00198
|
[1] |
PIPE;BOOM DOWN
|
|
| 7. |
193-00200
|
[1] |
PIPE;BOOM UP
|
|
| 8. |
195-00540A
|
[1] |
BRACKET;CONTROL PIPE
|
|
| 9. |
2161-2481
|
[10] |
RUBBER
|
|
