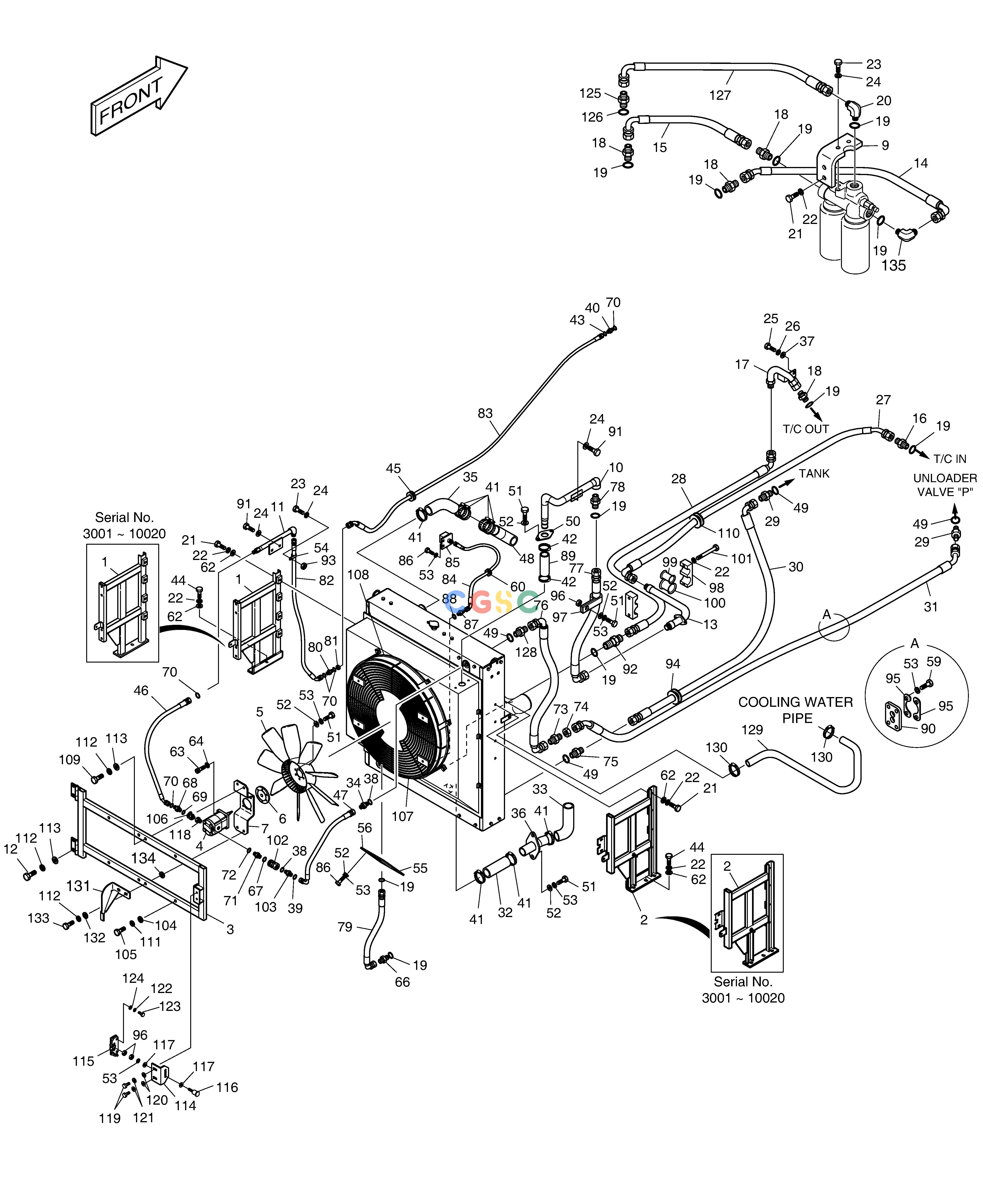

斗山零件查询COOLING PIPING MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
627 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-02696
|
[-] |
|
|
| -. |
400-01457A
|
[-] |
COOLER PIPING
|
|
| 1. |
110406-00696
|
[1] |
|
|
| 1. |
195-01921B
|
[1] |
BRACKET
|
110406-00696
|
| 10. |
182-00013A
|
[1] |
PIPE
|
|
| 100. |
198-00008
|
[2] |
RUBBER
|
|
| 101. |
S0561853
|
[2] |
BOLT M12X1.75X105
|
|
| 102. |
153-00003
|
[1] |
COUPLER;QUICK
|
|
| 103. |
2181-1110D4
|
[1] |
ADAPTER PT3/4-PF3/4
|
|
| 104. |
2114-1898D1
|
[4] |
WASHER
|
|
| 105. |
2120-2166D48
|
[4] |
BOLT
|
|
| 106. |
120-00002
|
[1] |
SCREW
|
|
| 107. |
142-00053C
|
[1] |
GUARD;FAN
|
|
| 108. |
160-00065
|
[1] |
TRIM
|
|
| 109. |
2120-2166D11
|
[2] |
BOLT
|
|
| 11. |
182-00014A
|
[1] |
PIPE
|
|
| 110. |
160-00041
|
[1] |
BUSHING;RUBBER
|
|
| 111. |
2114-2031D5
|
[4] |
WASHER
|
|
| 112. |
2114-2031D6
|
[8] |
WASHER
|
|
| 113. |
2114-1898D6
|
[6] |
WASHER
|
|
| 114. |
195-01984B
|
[1] |
BRACKET
|
|
| 115. |
143-00005
|
[1] |
LATCH
|
|
| 116. |
2142-1094
|
[1] |
STRIKER
|
|
| 117. |
2114-1058D29
|
[2] |
WASHER
|
|
| 118. |
2181-2047
|
[1] |
PLUG
|
|
| 119. |
2120-2166D16
|
[2] |
BOLT
|
|
| 12. |
2120-2166D27
|
[4] |
BOLT
|
|
| 120. |
2114-1898D8
|
[2] |
WASHER
|
|
| 121. |
2114-2031D4
|
[2] |
WASHER
|
|
| 122. |
2114-2031D3
|
[2] |
WASHER;SPRING M6
|
|
| 123. |
2120-2166D36
|
[2] |
BOLT
|
|
| 124. |
2114-1898D5
|
[2] |
WASHER
|
|
| 125. |
DS2213160
|
[1] |
ADAPTER
|
|
| 126. |
S8040141
|
[1] |
O-RING
|
|
| 127. |
2184-1036D381
|
[1] |
HOSE PF1/4-1200L
|
|
| 128. |
2181-1126D26
|
[1] |
ADAPTER PF1
|
|
| 129. |
2185-1247D71
|
[1] |
HOSE
|
|
| 13. |
182-00012E
|
[1] |
PIPE
|
|
| 130. |
S8450012
|
[2] |
CLAMP
|
|
| 131. |
195-02466A
|
[1] |
BRACKET
|
|
| 132. |
2114-1898D9
|
[2] |
WASHER
|
|
| 133. |
2120-2166D51
|
[2] |
BOLT
|
|
| 134. |
DS7722029
|
[2] |
SHIM
|
|
| 135. |
DS2281097
|
[1] |
ELBOW
|
|
| 14. |
DS2058247
|
[1] |
HOSE PF1 1/4-1050L
|
|
| 15. |
2184-1036D332
|
[1] |
HOSE PF1 1/4-750L
|
|
| 16. |
2181-1126D145
|
[1] |
ADAPTER
|
|
| 17. |
182-00058A
|
[1] |
PIPE
|
|
| 18. |
2181-1126D126
|
[4] |
ADAPTER
|
|
| 19. |
S8000381
|
[11] |
O-RING
|
|
| 2. |
110406-00697
|
[1] |
|
|
| 2. |
195-01981B
|
[1] |
BRACKET
|
110406-00697
|
| 20. |
2181-1702D60
|
[1] |
ELBOW
|
|
| 21. |
S0560553
|
[12] |
BOLT M12X1.75X40
|
|
| 22. |
S5102703
|
[16] |
WASHER
|
|
| 23. |
S0558153
|
[3] |
BOLT
|
|
| 24. |
S5102603
|
[7] |
. WASHER
|
|
| 25. |
S0521453
|
[1] |
BOLT M16X2.0X40
|
|
| 26. |
S5102903
|
[1] |
WASHER
|
|
| 27. |
2184-1250D108
|
[1] |
HOSE PF1 1/4-1930L
|
|
| 28. |
DS2055784
|
[1] |
HOSE PF1 1/4-1910L
|
|
| 29. |
2181-1126D25
|
[2] |
ADAPTER
|
|
| 3. |
195-01982B
|
[1] |
BRACKET
|
|
| 30. |
2184-1250D110
|
[1] |
HOSE PF1-2300L
|
|
| 31. |
2184-1250D111
|
[1] |
HOSE PF1-2330L
|
|
| 32. |
185-00049
|
[1] |
HOSE;WATER
|
|
| 33. |
185-00048
|
[1] |
HOSE;WATER
|
|
| 34. |
2181-1126D150
|
[1] |
ADAPTER
|
|
| 35. |
185-00047
|
[1] |
HOSE;WATER
|
|
| 36. |
182-00015
|
[1] |
PIPE;WATER
|
|
| 37. |
S5010913
|
[1] |
WASHER
|
|
| 38. |
S8000231
|
[2] |
O-RING
|
|
| 39. |
S8030121
|
[2] |
O-RING
|
|
| 4. |
401-00054
|
[1] |
MOTOR;FAN DRIVE
|
|
| 40. |
2181-4133D3
|
[1] |
ADAPTER
|
|
| 41. |
S8450066
|
[8] |
CLAMP;HOSE
|
|
| 42. |
S8450044
|
[4] |
CLAMP;HOSE
|
|
| 43. |
S8000181
|
[1] |
O-RING
|
|
| 44. |
S0560453
|
[6] |
BOLT M12X1.75X35
|
|
| 45. |
2160-1004D58
|
[1] |
GROMMET
|
|
| 46. |
2184-1212D57
|
[1] |
HOSE PF1/2-900L
|
|
| 47. |
DS2055640
|
[1] |
HOSE PF3/4-735L
|
|
| 48. |
185-00057A
|
[1] |
HOSE;WATER
|
|
| 49. |
S8000291
|
[5] |
O-RING
|
|
| 5. |
920-00018
|
[1] |
FAN;COOLING
|
|
| 50. |
621-00484
|
[1] |
COVER
|
|
| 51. |
S0508853
|
[13] |
. BOLT
|
|
| 52. |
S5010513
|
[17] |
WASHER
|
|
| 53. |
S5102503
|
[20] |
. WASHER
|
|
| 54. |
2124-1353D13
|
[2] |
CLIP
|
|
| 55. |
621-00485B
|
[1] |
COVER
|
|
| 56. |
621-00486B
|
[1] |
COVER
|
|
| 59. |
S0556053
|
[4] |
BOLT M8X1.25X35
|
|
| 6. |
219-00009A
|
[1] |
HUB
|
|
| 60. |
161-00042
|
[1] |
RUBBER
|
|
| 62. |
2114-1058D46
|
[12] |
WASHER
|
|
| 63. |
S2209066
|
[4] |
BOLT
|
|
| 64. |
S5110501
|
[4] |
WASHER;SPRING M8
|
|
| 66. |
2181-1126D147
|
[1] |
ADAPTER
|
|
| 67. |
181-00606
|
[1] |
NIPPLE;QUICK
|
|
| 68. |
181-00620A
|
[1] |
ADAPTER
|
|
| 69. |
S8180321
|
[1] |
. RING,SEAL
|
|
| 7. |
195-01522
|
[1] |
BRACKET
|
|
| 70. |
S8030081
|
[6] |
O-RING
|
|
| 71. |
181-00623
|
[1] |
ADAPTER
|
|
| 72. |
S8180451
|
[1] |
RING;SEAL
|
|
| 73. |
181-00078D6
|
[1] |
ADAPTER
|
|
| 74. |
121-00010D6
|
[1] |
NUT
|
|
| 75. |
2181-1126D97
|
[1] |
ADAPTER
|
|
| 76. |
2184-1061D352
|
[1] |
HOSE PF1-1100L
|
|
| 77. |
2184-1036D417
|
[1] |
HOSE PF1 1/4-1100L
|
|
| 78. |
2181-1126D78
|
[1] |
ADAPTER
|
|
| 79. |
DS2055621
|
[1] |
HOSE PF1 1/4-530L
|
|
| 80. |
181-00128D3
|
[1] |
ADAPTER
|
|
| 81. |
121-00010D5
|
[1] |
NUT
|
|
| 82. |
2184-1212D59
|
[1] |
HOSE 1260L
|
|
| 83. |
DS2012156
|
[1] |
HOSE PF1/2-2300L
|
|
| 84. |
2184-1060D29
|
[1] |
HOSE PF3/8-950L
|
|
| 85. |
181-00341A
|
[1] |
COCK ASS'Y
|
|
| 86. |
S0508653
|
[6] |
BOLT
|
|
| 87. |
2181-1126D7
|
[1] |
ADAPTER
|
|
| 88. |
S8000141
|
[1] |
O-RING
|
|
| 89. |
2185-1776D5
|
[1] |
HOSE 200L
|
|
| 9. |
195-02187B
|
[1] |
BRACKET
|
|
| 90. |
161-00262
|
[1] |
PLATE;RUBBER
|
|
| 91. |
S0511553
|
[4] |
BOLT M10X1.5X14
|
|
| 92. |
DS2213162
|
[1] |
ADAPTER;PIPE
|
|
| 93. |
S4012633
|
[1] |
NUT
|
|
| 94. |
2160-1004D21
|
[1] |
BUSHING;RUBBER
|
|
| 95. |
124-00138
|
[2] |
CLAMP
|
|
| 96. |
S4012533
|
[3] |
NUT
|
|
| 97. |
2124-1353D17
|
[1] |
CLIP
|
|
| 98. |
195-01048
|
[2] |
BLOCK
|
|
| 99. |
2161-2481
|
[2] |
RUBBER
|
|
