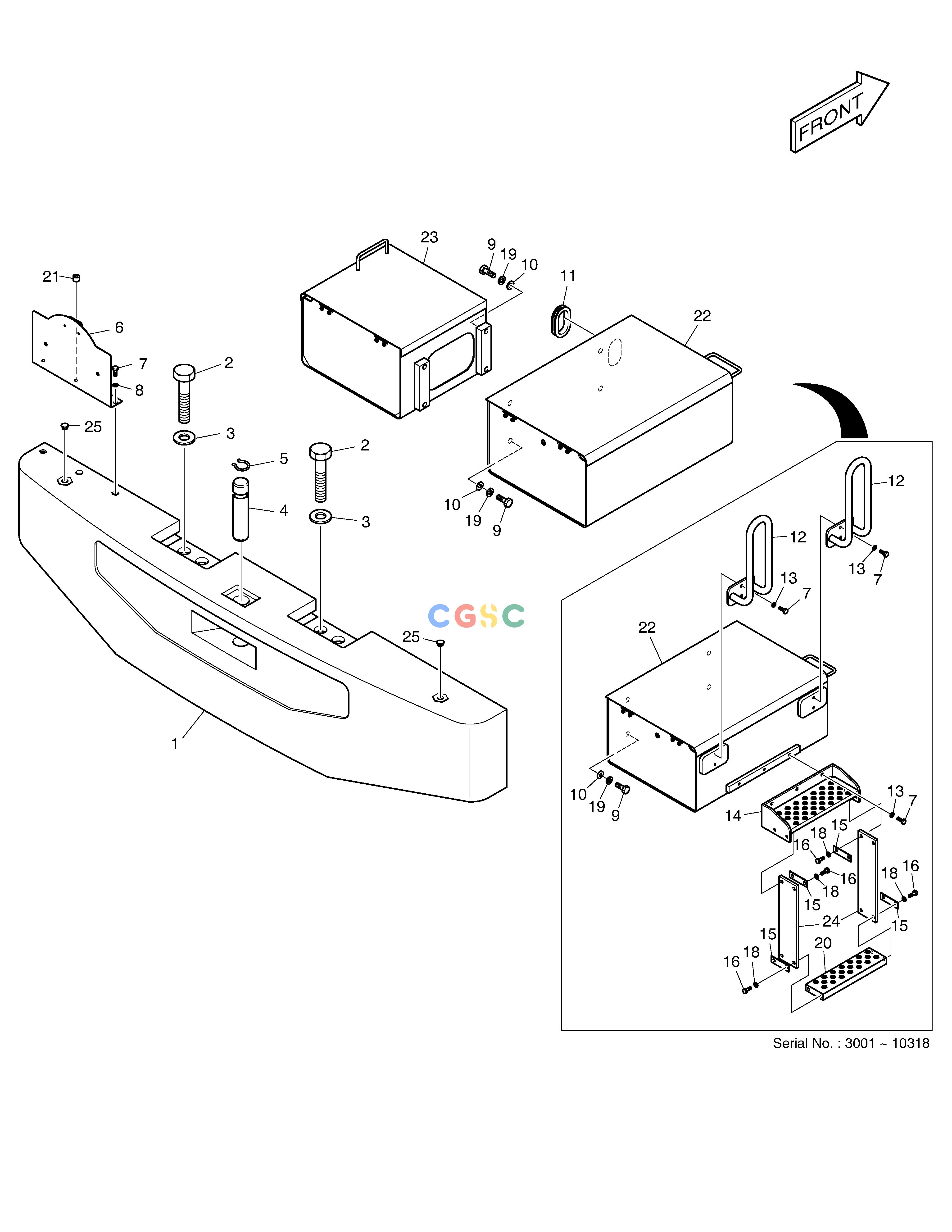

斗山零件查询COUNTER WEIGHT & BATTERY BOX MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
677 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
600-00036
|
[-] |
REAR END ASS'Y
|
|
| -. |
160702-00335
|
[-] |
|
|
| -. |
160702-00335A
|
[-] |
|
|
| 1. |
624-00037B
|
[1] |
WEIGHT;COUNTER
|
160702-00311
|
| 1. |
160702-00311
|
[1] |
|
|
| 10. |
S5010813
|
[8] |
WASHER;PLAIN
|
|
| 11. |
2160-1201D12
|
[1] |
BUSHING,RUBBER
|
|
| 12. |
194-00014A
|
[2] |
HANDRAIL;BATTERY BOX
|
|
| 13. |
2114-1058D10
|
[7] |
WASHER
|
|
| 14. |
625-00067
|
[1] |
LADDER
|
|
| 15. |
2191-2205D13
|
[4] |
PLATE
|
|
| 16. |
S0512353
|
[8] |
BOLT M10X1.5X35
|
|
| 18. |
S5010613
|
[8] |
WASHER
|
|
| 19. |
S5102903
|
[8] |
WASHER
|
|
| 2. |
DS0002262
|
[4] |
BOLT M39X3.0X200
|
|
| 20. |
625-00061
|
[1] |
RUNG;LADDER
|
|
| 21. |
2160-1004D2
|
[1] |
BUSHING;RUBBER
|
|
| 22. |
199-00039G
|
[1] |
BOX;BATTERY
|
|
| 22. |
110904-00050
|
[1] |
|
|
| 22. |
110904-00050B
|
[1] |
|
|
| 23. |
199-00040G
|
[1] |
BOX;TOOL
|
|
| 24. |
161-00228A
|
[2] |
HANGER;STEP
|
|
| 25. |
160-00019
|
[2] |
CAP;PLASTIC
|
|
| 3. |
4114-1999A
|
[4] |
WASHER;HARD
|
|
| 4. |
123-00045
|
[1] |
PIN
|
|
| 5. |
124-00017
|
[1] |
CLIP;PIN
|
|
| 6. |
621-01061A
|
[1] |
PLATE;LICENSE
|
|
| 7. |
S0512053
|
[9] |
BOLT
|
|
| 8. |
S5102603
|
[2] |
. WASHER
|
|
| 9. |
S0565461
|
[8] |
BOLT M16X2.0X60
|
|
