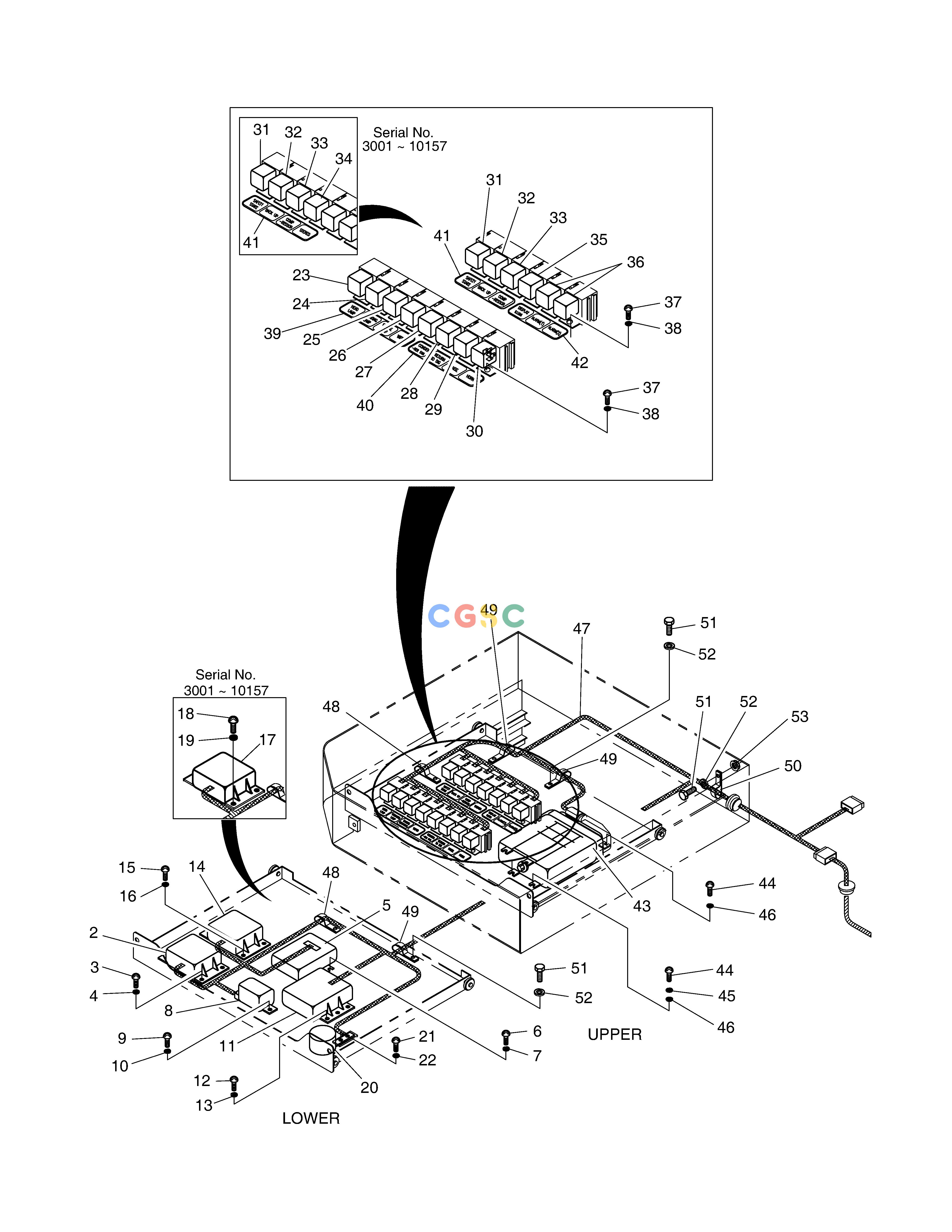

斗山零件查询ELECTRIC BOX ASS'Y(2) - ELECTRIC PARTS MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
748 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
500-00033G
|
[1] |
ELECTRIC BOX ASS'Y
|
|
| -. |
300619-00894
|
[1] |
|
|
| -. |
300619-00894A
|
[1] |
|
|
| 10. |
S5102303
|
[1] |
. WASHER
|
|
| 11. |
543-00001
|
[1] |
UNIT;CONTROL
|
|
| 12. |
S3450943
|
[4] |
SCREW
|
|
| 13. |
S5102303
|
[4] |
. WASHER
|
|
| 14. |
2537-9002
|
[1] |
TIMER;WIPER
|
|
| 15. |
S3450943
|
[4] |
SCREW
|
|
| 16. |
S5102303
|
[4] |
. WASHER
|
|
| 17. |
2531-1003
|
[1] |
CONVERTER;DC-DC
|
|
| 18. |
S3450943
|
[4] |
SCREW
|
|
| 19. |
S5102303
|
[4] |
. WASHER
|
|
| 2. |
2543-9015
|
[1] |
CONTROLLER;STARTER
|
|
| 20. |
2516-1102A
|
[1] |
BUZZER;PILOT
|
|
| 21. |
S3450943
|
[2] |
SCREW
|
|
| 22. |
S5102303
|
[2] |
. WASHER
|
|
| 23. |
2544-9033
|
[1] |
RELAY
|
|
| 24. |
2544-9033
|
[1] |
RELAY
|
|
| 25. |
2544-9033
|
[1] |
RELAY
|
|
| 26. |
2544-9033
|
[1] |
RELAY
|
|
| 27. |
2544-9033
|
[1] |
RELAY
|
|
| 28. |
2544-9033
|
[1] |
RELAY
|
|
| 29. |
2544-9033
|
[1] |
RELAY
|
|
| 3. |
S3450943
|
[4] |
SCREW
|
|
| 30. |
2544-9033
|
[1] |
RELAY
|
|
| 31. |
2544-9033
|
[1] |
RELAY
|
|
| 32. |
2544-9033
|
[1] |
RELAY
|
|
| 33. |
2544-9033
|
[1] |
RELAY
|
|
| 34. |
2544-9033
|
[1] |
RELAY
|
|
| 35. |
2544-9033
|
[1] |
RELAY
|
|
| 36. |
2544-9033
|
[1] |
RELAY
|
|
| 37. |
S3450823
|
[9] |
SCREW
|
|
| 38. |
S5100203
|
[9] |
WASHER
|
|
| 39. |
2190-2037D6
|
[1] |
PLATE;NAME(RELAY)
|
|
| 4. |
S5102303
|
[4] |
. WASHER
|
|
| 40. |
2190-2037D36
|
[1] |
PLATE;NAME(RELAY)
|
|
| 41. |
2190-2037D42
|
[1] |
PLATE;NAME(RELAY)
|
|
| 41. |
2190-2037D105
|
[1] |
|
|
| 42. |
2190-2037D49
|
[1] |
PLATE;NAME(RELAY)
|
|
| 43. |
543-00092
|
[1] |
CONTROLLER;T/MISSION
|
|
| 44. |
S3450853
|
[4] |
SCREW
|
|
| 45. |
S5100203
|
[2] |
WASHER
|
|
| 46. |
S5000213
|
[4] |
. WASHER
|
|
| 47. |
530-00349A
|
[1] |
HARNESS;ELECTRIC BOX
|
|
| 47. |
310207-00827
|
[1] |
|
|
| 47. |
310207-00827A
|
[1] |
|
|
| 48. |
2124-1509D2
|
[2] |
CLIP
|
|
| 49. |
2124-1509D3
|
[3] |
CLIP D24/M8
|
|
| 5. |
523-00014
|
[1] |
CONTROLLER;PREHEAT
|
|
| 50. |
2124-1509D4
|
[1] |
CLIP D30/M8
|
|
| 51. |
S0508653
|
[6] |
BOLT
|
|
| 52. |
S5102503
|
[6] |
. WASHER
|
|
| 53. |
2121-1305
|
[1] |
NUT
|
|
| 6. |
S3450943
|
[2] |
SCREW
|
|
| 7. |
S5102303
|
[2] |
. WASHER
|
|
| 8. |
2525-1011
|
[1] |
UNIT;BLINKER
|
|
| 9. |
S3450943
|
[1] |
SCREW
|
|
