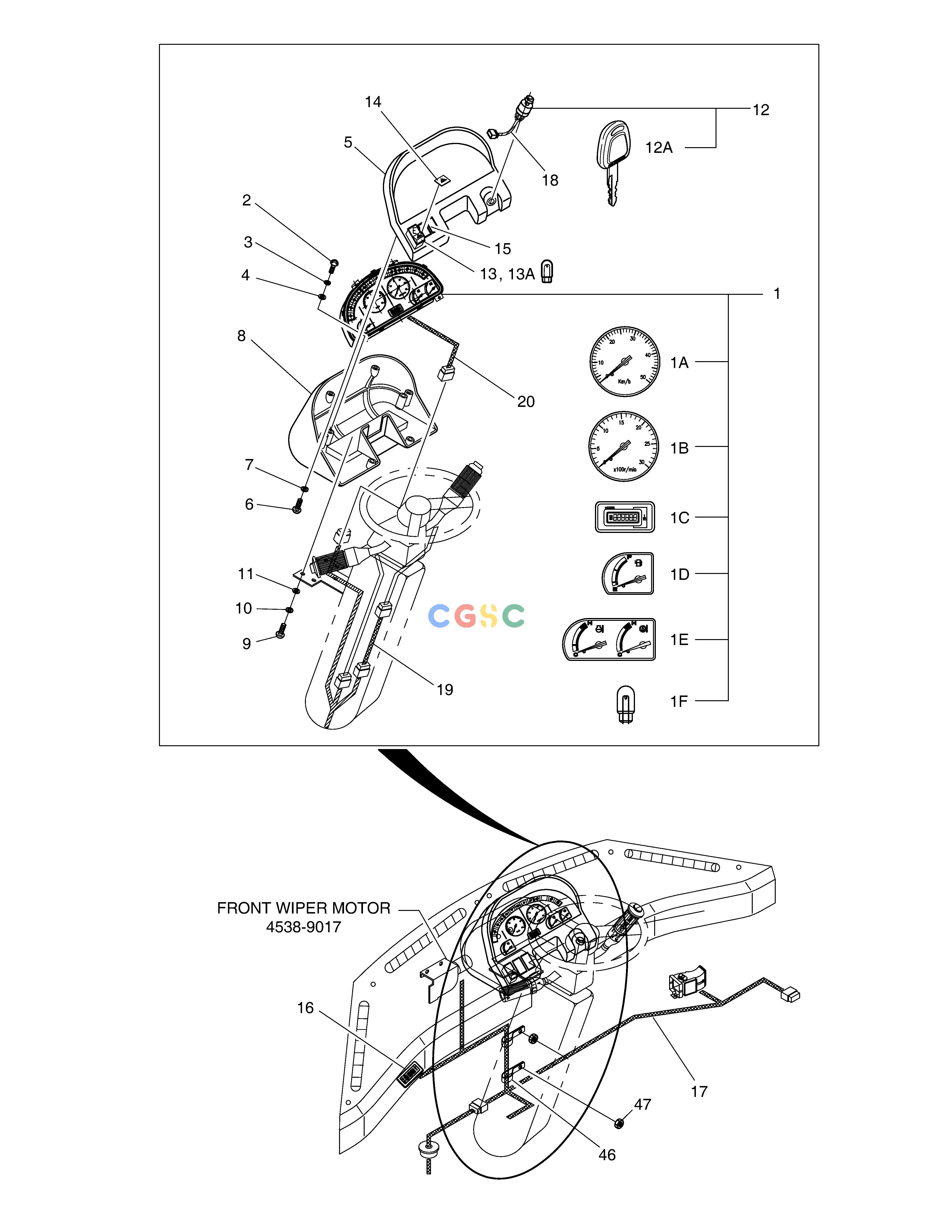

斗山零件查询ELECTRIC PARTS(1) - GAUGE PANEL MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
814 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
500-00281C
|
[-] |
ELECTRIC PARTS
|
|
| -. |
300619-00215
|
[-] |
|
|
| 1. |
539-00012B
|
[1] |
PANEL;GAUGE
|
|
| 10. |
S5102303
|
[5] |
. WASHER
|
|
| 11. |
S5010313
|
[5] |
WASHER
|
|
| 12. |
2549-1152B
|
[1] |
SWITCH;STARTER
|
|
| 12A. |
2172-1134B
|
[2] |
KEY;STARTER SWITCH
|
|
| 13. |
2549-9138
|
[1] |
SWITCH;ROCKER
|
|
| 13A. |
K9000353
|
[1] |
LAMP;PILOT
|
|
| 14. |
2190-2036D2
|
[1] |
INSERT;HAZARD
|
|
| 15. |
2621-9002
|
[2] |
COVER
|
|
| 16. |
K1045382
|
[1] |
DISPLAY
|
|
| 16. |
4539-6036
|
[1] |
DISPLAY
|
|
| 17. |
530-00069C
|
[1] |
HARNESS;GAUGE BOX
|
|
| 18. |
2530-1427
|
[1] |
HARNESS;STARTER SWITCH
|
|
| 19. |
530-00459
|
[1] |
HARNESS;COMBI SWITCH
|
|
| 1A. |
528-00022
|
[1] |
METER;SPEED
|
|
| 1B. |
528-00023B
|
[1] |
METER;TACHO
|
|
| 1C. |
2528-9040
|
[1] |
METER;HOUR
|
|
| 1D. |
4528-6064
|
[1] |
GAUGE;FUEL
|
|
| 1E. |
528-00011
|
[1] |
GAUGE;W/T & OIL TEMP
|
|
| 1F. |
S862203H
|
[16] |
BULB 24V 3W
|
|
| 2. |
S3450833
|
[4] |
BOLT
|
|
| 20. |
4530-1763A
|
[1] |
HARNESS;PANEL JOINT
|
|
| 3. |
S5100203
|
[4] |
WASHER
|
|
| 4. |
S5000213
|
[4] |
. WASHER
|
|
| 46. |
2124-1509D3
|
[2] |
CLIP D24/M8
|
|
| 47. |
2121-1305
|
[2] |
NUT
|
|
| 5. |
4512-1131
|
[1] |
CASE;GAUGE PANEL(UPPER)
|
|
| 6. |
S3450833
|
[5] |
BOLT
|
|
| 7. |
S5100203
|
[5] |
WASHER
|
|
| 8. |
4512-1132
|
[1] |
CASE;GAUGE PANEL(LOWER)
|
|
| 9. |
S3450973
|
[5] |
SCREW M6X1.0X16
|
|
