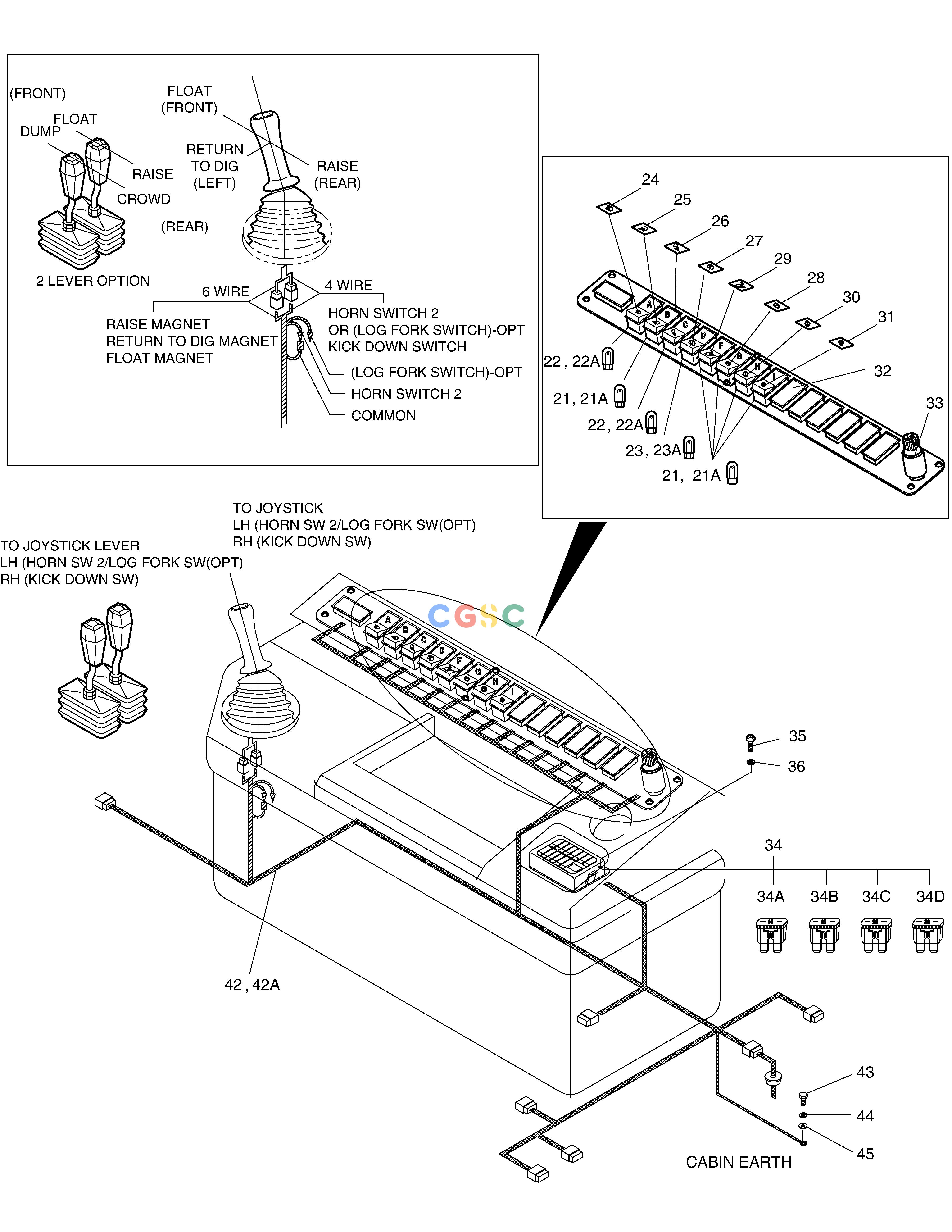

斗山零件查询ELECTRIC PARTS(2) - SWITCH BOX MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
268 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
500-00281C
|
[-] |
ELECTRIC PARTS
|
|
| -. |
300619-00215
|
[-] |
|
|
| 21. |
2549-9098
|
[5] |
SWITCH;ROCKER
|
|
| 21A. |
K9000353
|
[1] |
LAMP;PILOT
|
|
| 22. |
2549-9109
|
[2] |
SWITCH;LAMP
|
|
| 22A. |
K9000353
|
[1] |
LAMP;PILOT
|
|
| 23. |
2549-9129
|
[1] |
SWITCH;REAR WIPER/WASHER
|
|
| 23A. |
K9000353
|
[1] |
LAMP;PILOT
|
|
| 24. |
2190-2036D4
|
[1] |
INSERT;LAMP
|
|
| 25. |
2190-2036D5
|
[1] |
INSERT;WORKING LAMP
|
|
| 26. |
2190-2036D20
|
[1] |
INSERT;REAR WORKING LAMP
|
|
| 27. |
2190-2036D18
|
[1] |
INSERT;REAR WIPER/WASHER
|
|
| 28. |
2190-2036D16
|
[1] |
INSERT;PARKING BRAKE
|
|
| 29. |
2190-2036D17
|
[1] |
INSERT;PILOT CUT OFF
|
|
| 30. |
2190-2036D15
|
[1] |
INSERT;T/M CUT OFF
|
|
| 31. |
2190-2036D9
|
[1] |
INSERT;AUTO SELECT
|
|
| 32. |
2621-9002
|
[7] |
COVER
|
|
| 33. |
545-00001
|
[1] |
LIGHTER;CIGAR
|
300730-00006
|
| 33. |
300730-00006
|
[1] |
LIGHTER,CIGAR
|
|
| 34. |
4510-1012A
|
[1] |
BOX;FUSE(1)
|
|
| 34A. |
2527-1016
|
[3] |
FUSE,BLADE 10A
|
|
| 34B. |
2527-1017
|
[11] |
FUSE,BLADE 15A
|
|
| 34C. |
2527-1018
|
[2] |
FUSE,BLADE 20A
|
|
| 34D. |
2527-1025
|
[2] |
FUSE,BLADE 30A
|
|
| 35. |
S3450983
|
[2] |
SCREW
|
|
| 36. |
S5102303
|
[2] |
. WASHER
|
|
| 42. |
530-00458A
|
[1] |
HARNESS;SWITCH BOX
|
310207-00213
|
| 42. |
310207-00213
|
[1] |
|
310207-00213A
|
| 42. |
310207-00213A
|
[1] |
|
|
| 42. |
310207-00213B
|
[1] |
|
|
| 42A. |
2548-1026
|
[7] |
DIODE
|
|
| 43. |
S0508353
|
[1] |
BOLT M8X1.25X10
|
|
| 44. |
S5102503
|
[1] |
. WASHER
|
|
| 45. |
S5010513
|
[1] |
WASHER
|
|
