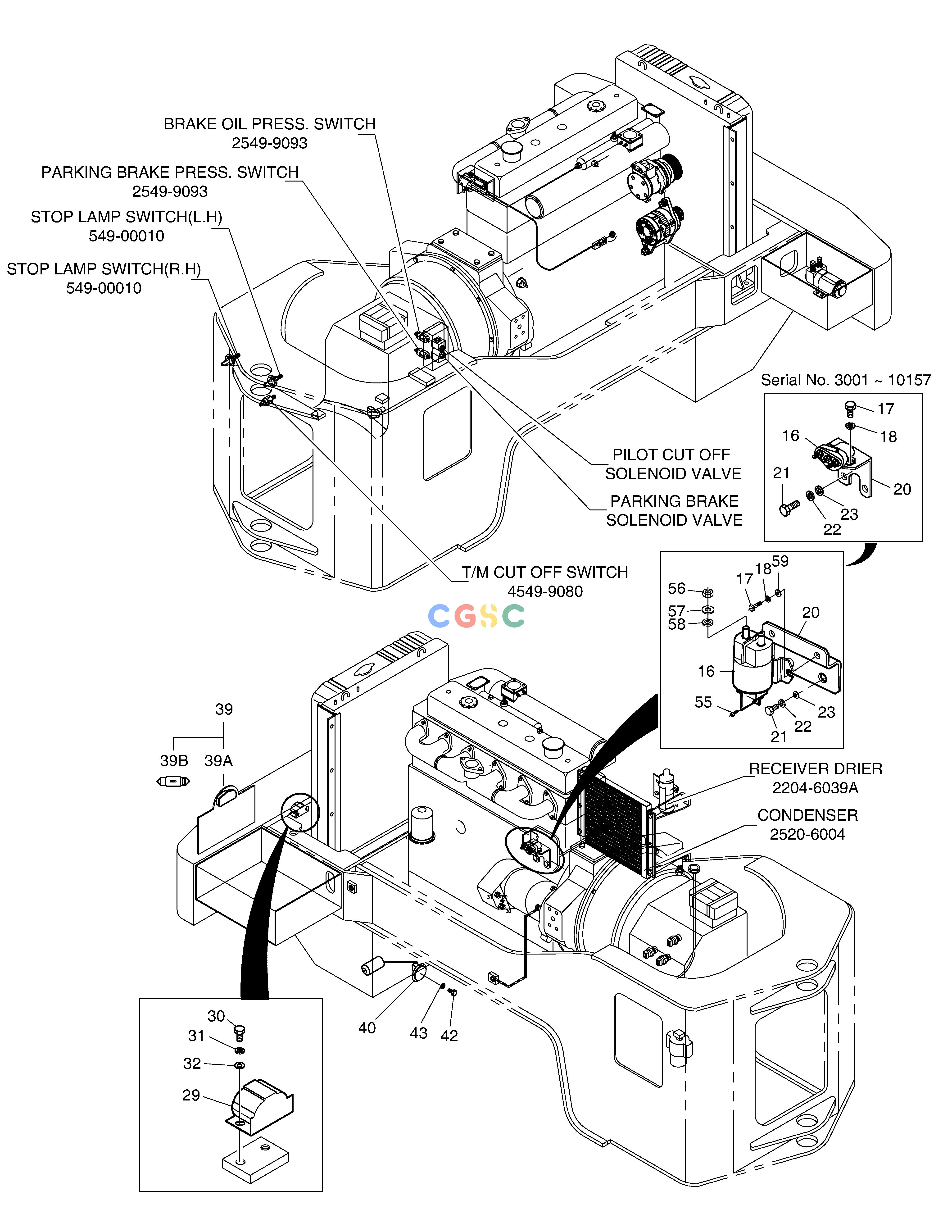

斗山零件查询ELECTRIC PARTS(7) - RELATED PARTS MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
985 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
500-00035
|
[-] |
ELECTRIC PARTS(2)
|
|
| -. |
300619-00216
|
[-] |
|
|
| 16. |
544-00007
|
[1] |
RELAY;PREHEAT
|
|
| 16. |
301202-00067
|
[1] |
RELAY,PRE HEATER
|
|
| 17. |
S0504653
|
[2] |
. BOLT
|
|
| 17. |
S0508666
|
[2] |
BOLT
|
|
| 18. |
S5102303
|
[2] |
. WASHER
|
|
| 18. |
S5102503
|
[2] |
. WASHER
|
|
| 20. |
4197-1954
|
[1] |
BRACKET;RELAY
|
|
| 20. |
110406-01246
|
[1] |
|
|
| 21. |
S0686151
|
[2] |
BOLT M12X1.5X25
|
|
| 22. |
S5102703
|
[2] |
WASHER
|
|
| 23. |
S5010713
|
[2] |
WASHER;PLAIN
|
|
| 29. |
2516-1124
|
[1] |
BUZZER;ALARM
|
|
| 30. |
S0508653
|
[2] |
BOLT
|
|
| 31. |
S5102503
|
[2] |
. WASHER
|
|
| 32. |
S5010513
|
[2] |
WASHER
|
|
| 39. |
2534-1139A
|
[1] |
LAMP;LICENCE
|
|
| 39A. |
2534-6019
|
[1] |
CASE;LAMP
|
|
| 39B. |
2515-1021D5
|
[1] |
BULB 24V 5W
|
|
| 40. |
547-00019A
|
[1] |
SENSOR;FUEL
|
301316-00014
|
| 40. |
301316-00014
|
[1] |
|
|
| 42. |
S0502953
|
[5] |
. BOLT M5X0.8X12
|
|
| 43. |
S5100203
|
[5] |
WASHER
|
|
| 55. |
S3450573
|
[2] |
SCREW
|
|
| 56. |
S4012533
|
[2] |
NUT
|
|
| 57. |
S5010513
|
[2] |
WASHER
|
|
| 58. |
S5102503
|
[2] |
. WASHER
|
|
| 59. |
S5010513
|
[2] |
WASHER
|
|
