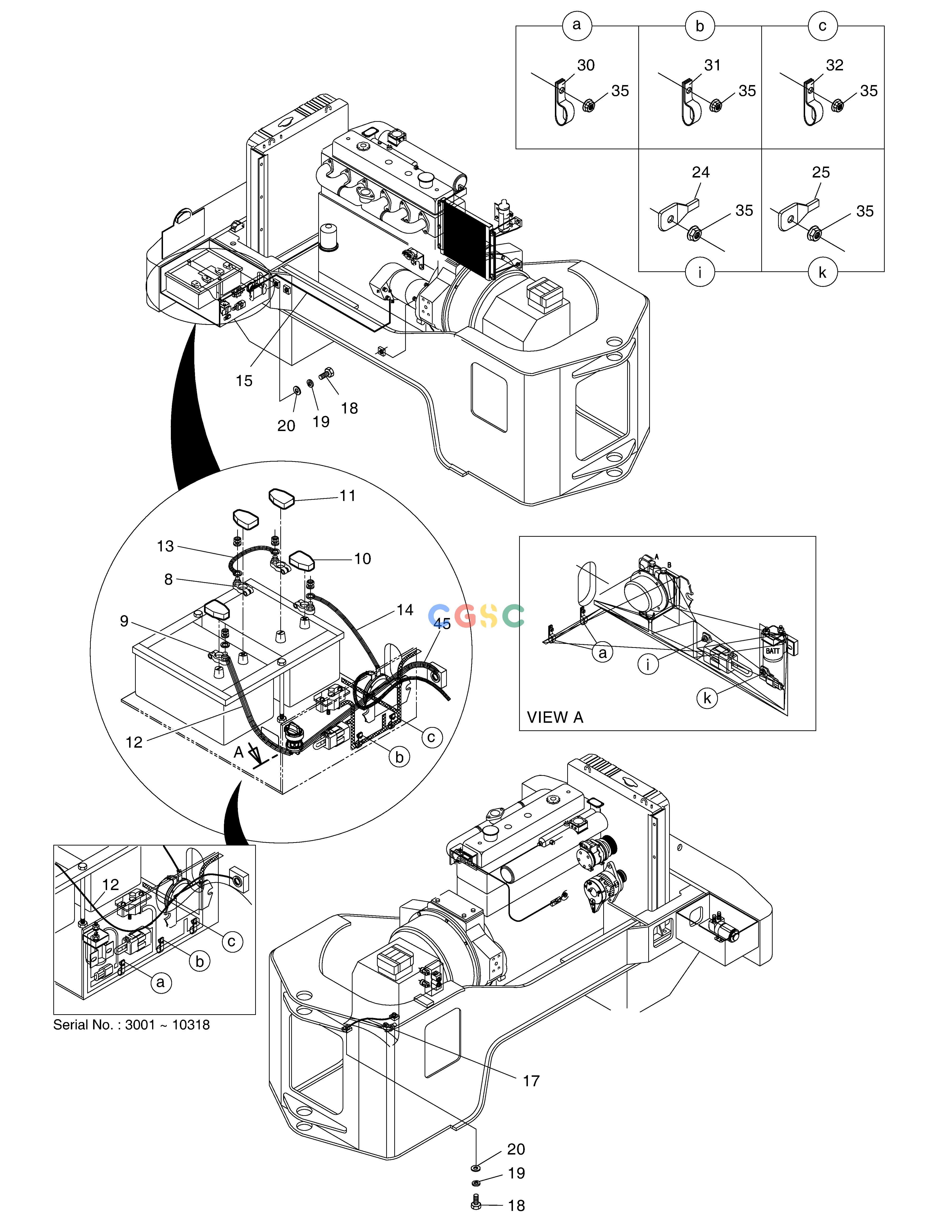

斗山零件查询ELECTRIC WIRING(1) - BATTERY MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
885 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
300619-00217
|
[-] |
|
|
| -. |
500-00036
|
[-] |
ELECTRIC PARTS(3)
|
|
| 10. |
2160-1212
|
[2] |
CAP,BATT. TML(+)
|
|
| 11. |
2160-1213
|
[2] |
CAP,BATT. TML(-)
|
|
| 12. |
2553-1261D35
|
[1] |
|
|
| 12. |
2553-1261D27
|
[1] |
CABLE;BATT-EARTH 85B-800L
|
|
| 13. |
2553-1275D2
|
[1] |
CABLE;BATT-BATT
|
|
| 14. |
2553-1275D3
|
[1] |
CABLE;BATT-BATT RELAY
|
|
| 15. |
2553-1275D55
|
[1] |
CABLE;BATT RY-STARTER 85R-2200L
|
|
| 17. |
2553-1275D39
|
[1] |
CABLE,EARTH
|
|
| 17. |
2553-1275D12
|
[1] |
CABLE;EARTH
|
|
| 17. |
2553-1275D22
|
[1] |
CABLE;EARTH
|
|
| 18. |
S0511653
|
[3] |
BOLT
|
|
| 19. |
S5102603
|
[3] |
. WASHER
|
|
| 20. |
S5010613
|
[3] |
WASHER
|
|
| 24. |
2197-1660
|
[1] |
BRACKET
|
|
| 25. |
2197-1661
|
[1] |
BRACKET
|
|
| 30. |
2124-1509D1
|
[3] |
CLIP
|
|
| 31. |
124-00208D2
|
[1] |
CLAMP
|
|
| 32. |
124-00208D3
|
[1] |
CLIP
|
|
| 35. |
2121-1305
|
[7] |
NUT
|
|
| 45. |
2553-1275D119
|
[1] |
|
|
| 8. |
2550-1014D1
|
[2] |
TERMINAL,BATTERY(+)
|
|
| 9. |
2550-1014D2
|
[2] |
TERMINAL,BATTERY(-)
|
|
