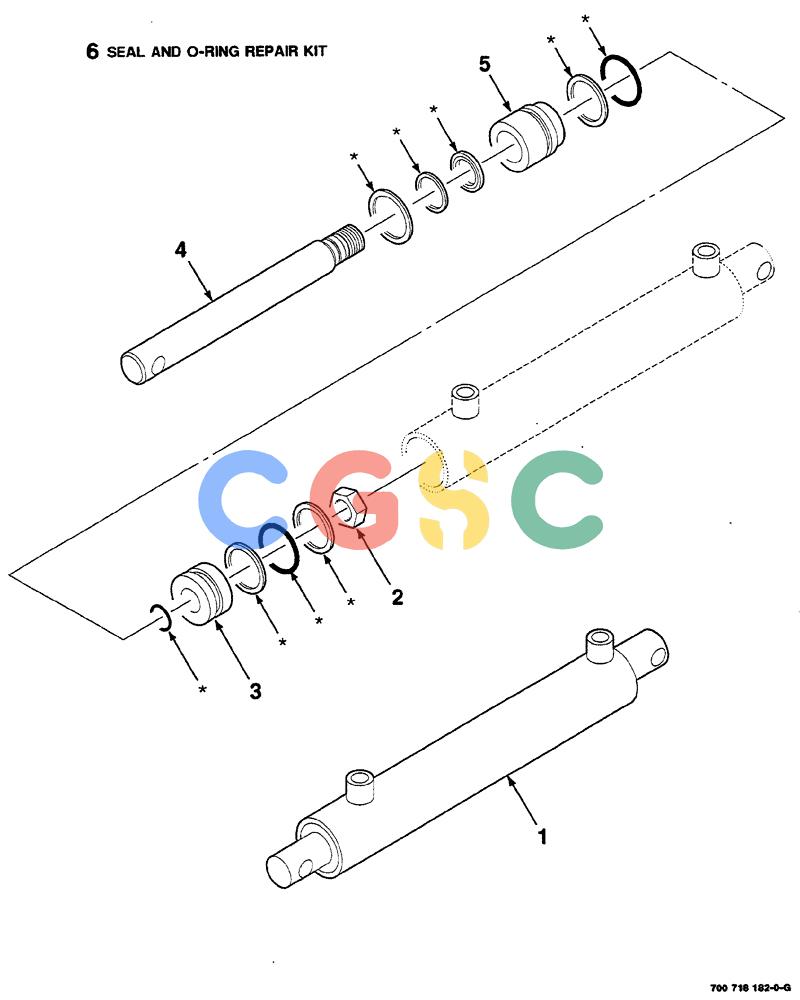

凯斯零件查询(RS561) - CASE IH ROUND BALER (1/99-12/00) (08-048) - HYDR. CYL. ASSEMBLY (THREADER) (2-1/4 IN. BORE X 12 IN. STROKE) (S.N. CFH0156001 THRU CFH0156399) Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
668 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700718182
|
[1] |
CYLINDER
|
CAS
HYDRAULIC ASSEMBLY COMPLETE (2-1/4 inch bore x 12 inch stroke)
|
| 2. |
700707418
|
[1] |
JAM NUT
|
CAS
hex jam, 7/8-14 UNF
|
| 3. |
700710829
|
[1] |
PISTON
|
CAS
|
| 4. |
700710836
|
[1] |
ROD
|
CAS
PISTON
|
| 5. |
700712186
|
[1] |
GUIDE
|
CAS
ROD
|
| 6. |
700712177
|
[1] |
SEAL
|
CAS
KIT and O-ring repair, includes items in art marked with asterisk
|
