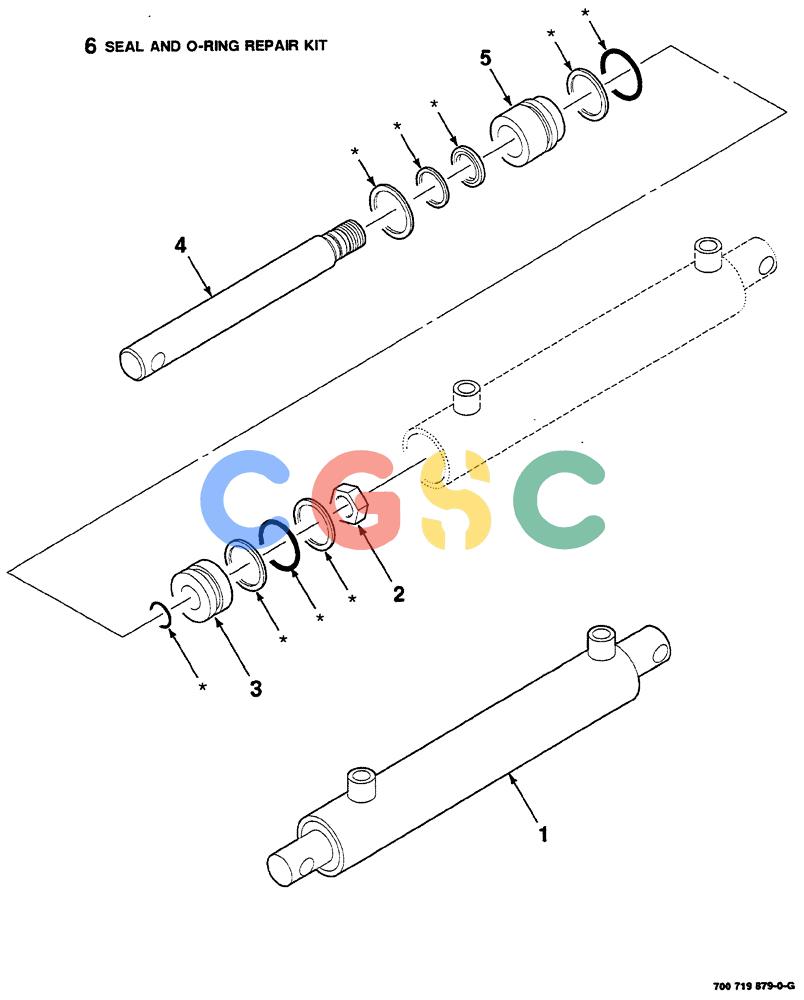

凯斯零件查询(RS561) - CASE IH ROUND BALER (1/99-12/00) (08-050) - HYDR. CYL. ASSEMBLY (THREADER) (2-1/2 IN. BORE X 12 IN. STROKE) (S.N. CFH0156400 AND LATER) Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
115 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700719879
|
[1] |
CYLINDER
|
HFI
HYDRAULIC ASSEMBLY COMPLETE (2-1/2 inch bore x 12 inch stroke)
|
| 2. |
774315
|
[1] |
NUT
|
CAS
hex top lock, 7/8-14 GR/C
|
| 3. |
700710421
|
[1] |
PISTON
|
CAS
|
| 4. |
700719881
|
[1] |
PISTON ROD
|
HFI
|
| 5. |
700719882
|
[1] |
GUIDE
|
HFI
ROD
|
| 6. |
700719883
|
[1] |
SEAL KIT
|
HFI
KIT and O-ring repair, includes items in art marked with asterisk
|
