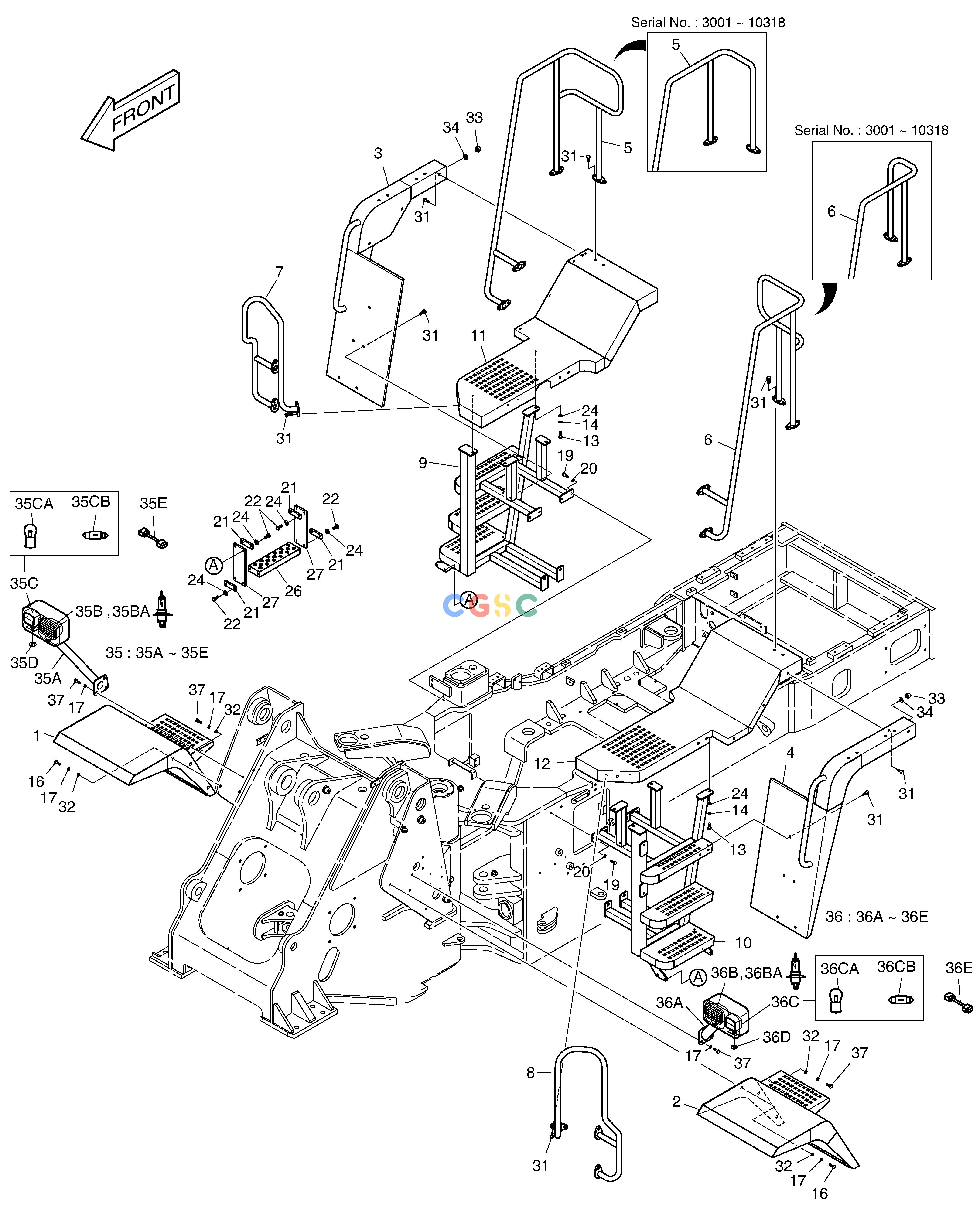

斗山零件查询FENDER & LADDER MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
556 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
621-00555A
|
[-] |
FENDER
|
|
| -. |
180307-00241
|
[-] |
|
|
| -. |
180307-00411
|
[-] |
|
|
| 1. |
621-00556E
|
[1] |
FENDER;FRONT(R.H)
|
|
| 10. |
625-00027E
|
[1] |
LADDER(L.H)
|
|
| 11. |
621-00566H
|
[1] |
PLATFORM(R.H)
|
|
| 12. |
621-00565E
|
[1] |
PLATFORM(L.H)
|
|
| 13. |
S0512053
|
[8] |
BOLT
|
|
| 14. |
S5102603
|
[8] |
. WASHER
|
|
| 16. |
S0515453
|
[6] |
BOLT
|
|
| 17. |
S5102703
|
[14] |
WASHER
|
|
| 19. |
S0521251
|
[12] |
BOLT M16X2.0X30
|
|
| 2. |
621-00557E
|
[1] |
FENDER;FRONT(L.H)
|
|
| 20. |
S5102901
|
[12] |
. WASHER;SPRING
|
|
| 21. |
2191-2205D13
|
[8] |
PLATE
|
|
| 22. |
S0512353
|
[16] |
BOLT M10X1.5X35
|
|
| 24. |
S5010613
|
[28] |
WASHER
|
|
| 26. |
625-00061
|
[2] |
RUNG;LADDER
|
|
| 27. |
161-00203A
|
[4] |
HANGER;STEP
|
|
| 3. |
621-00559A
|
[1] |
FENDER;REAR(R.H)
|
|
| 31. |
2120-2196D4
|
[40] |
BOLT;SET M10X1.5X30
|
|
| 32. |
S5010713
|
[8] |
WASHER;PLAIN
|
|
| 33. |
4161-2507
|
[2] |
STOPPER;RUBBER
|
|
| 34. |
2114-1898D16
|
[2] |
WASHER
|
|
| 35. |
195-02852
|
[1] |
SUPPORT;LAMP SUB ASS'Y(R.H)
|
|
| 35A. |
195-00501B
|
[1] |
SUPPORT;LAMP(R.H)
|
|
| 35B. |
2534-1141A
|
[1] |
LAMP;HEAD
|
|
| 35BA. |
2515-1022D1
|
[1] |
BULB;HALOGEN
|
|
| 35C. |
2534-1151A
|
[1] |
LAMP;FRONT COMBI(R.H)
|
|
| 35CA. |
S864221H
|
[1] |
BULB 24V 21W
|
|
| 35CB. |
2515-1021D2
|
[1] |
BULB 24V 10W
|
|
| 35D. |
S5010913
|
[1] |
WASHER
|
|
| 35E. |
530-00026A
|
[1] |
HARNESS;FRONT LAMP
|
|
| 36. |
195-02853
|
[1] |
SUPPORT;LAMP SUB ASS'Y(L.H)
|
|
| 36A. |
195-00502B
|
[1] |
SUPPORT;LAMP(L.H)
|
|
| 36B. |
2534-1141A
|
[1] |
LAMP;HEAD
|
|
| 36BA. |
2515-1022D1
|
[1] |
BULB;HALOGEN
|
|
| 36C. |
2534-1138A
|
[1] |
LAMP;FRONT COMBI(L.H)
|
|
| 36CA. |
S864221H
|
[1] |
BULB 24V 21W
|
|
| 36CB. |
2515-1021D2
|
[1] |
BULB 24V 10W
|
|
| 36D. |
S5010913
|
[1] |
WASHER
|
|
| 36E. |
530-00026A
|
[1] |
HARNESS;FRONT LAMP
|
|
| 37. |
S0514953
|
[8] |
BOLT M12X1.75X22
|
|
| 4. |
621-00558A
|
[1] |
FENDER;REAR(L.H)
|
|
| 5. |
194-00008A
|
[1] |
HANDRAIL;REAR (R.H)
|
101582-00346
|
| 5. |
101582-00346
|
[1] |
|
|
| 6. |
194-00007A
|
[1] |
HANDRAIL;REAR (L.H)
|
|
| 6. |
101582-00082
|
[1] |
|
101582-00082A
|
| 6. |
101582-00082A
|
[1] |
|
|
| 7. |
194-00006C
|
[1] |
HANDRAIL;FRONT(R.H)
|
|
| 8. |
194-00005C
|
[1] |
HANDRAIL;FRONT(L.H)
|
|
| 9. |
625-00026E
|
[1] |
LADDER(R.H)
|
|
