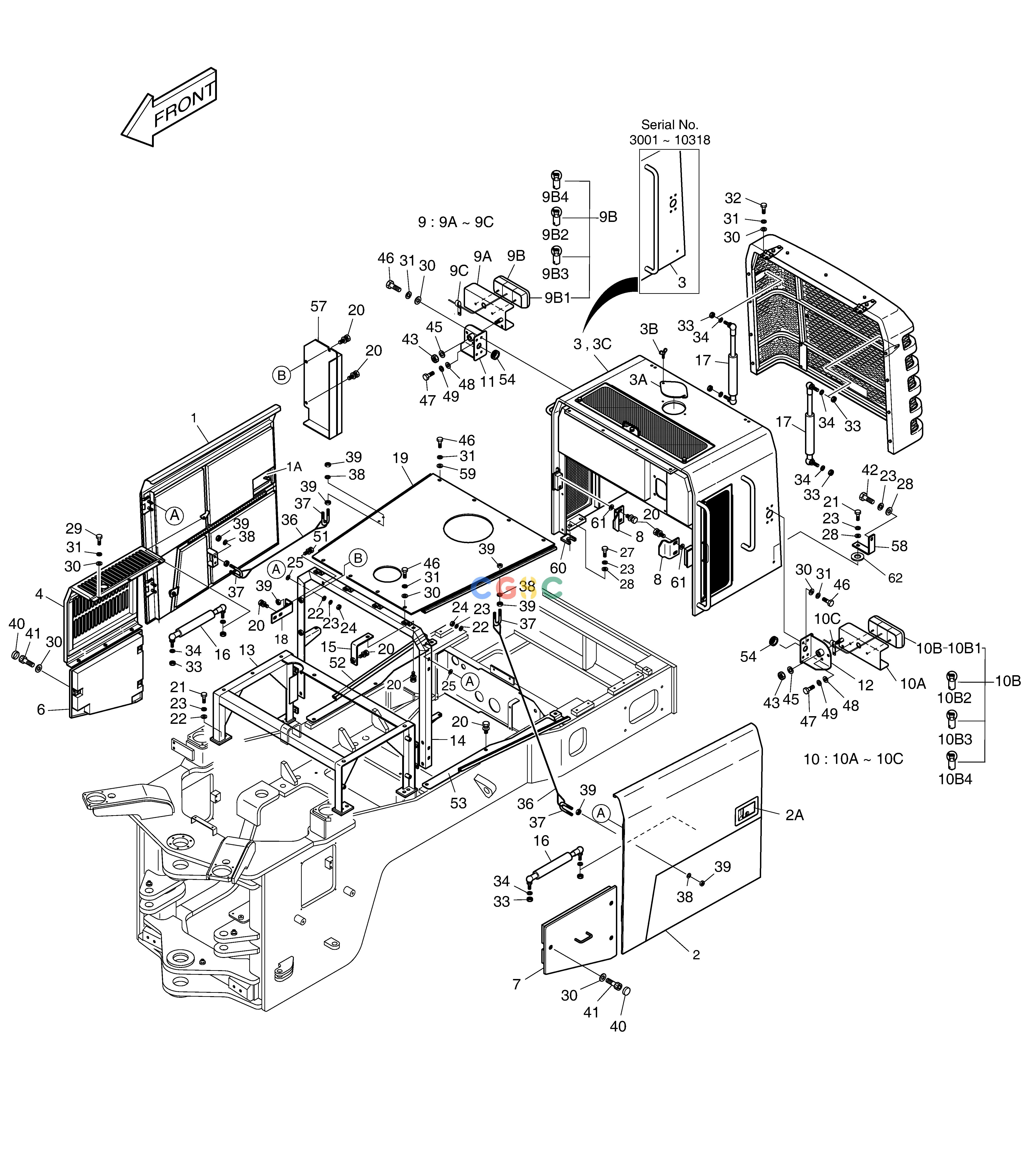

斗山零件查询ENGINE COVER MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
374 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
110508-00402
|
[-] |
|
|
| 1. |
622-00061E
|
[1] |
DOOR;R.H
|
|
| 10. |
195-02857A
|
[1] |
LAMP BRACKET SUB ASS'Y(L.H)
|
|
| 10A. |
195-00459C
|
[1] |
BRACKET;LH
|
|
| 10B. |
2534-1159E
|
[1] |
LAMP;REAR COMB(L.H)
|
|
| 10B1. |
2534-6028
|
[1] |
CASE;LAMP
|
|
| 10B2. |
515-00015
|
[2] |
BULB
|
|
| 10B3. |
S863210H
|
[1] |
BULB(POSITION)24V 10W
|
|
| 10B4. |
S863212H
|
[2] |
BULB 24V 12W
|
|
| 10C. |
2124-1509D1
|
[1] |
CLIP
|
|
| 11. |
195-00460B
|
[1] |
BRACKET;R.H
|
|
| 12. |
195-00461B
|
[1] |
BRACKET;L.H
|
|
| 13. |
195-02882
|
[1] |
SUPPORT
|
|
| 14. |
195-00456G
|
[1] |
BRACKET
|
|
| 15. |
195-00457C
|
[1] |
BRACKET
|
|
| 16. |
440-00143B
|
[2] |
SPRING;GAS
|
|
| 17. |
DS1001082
|
[2] |
SPRING;GAS
|
|
| 18. |
195-00452B
|
[1] |
BRACKET
|
|
| 19. |
621-00586E
|
[1] |
COVER
|
|
| 1A. |
2125-9053
|
[1] |
LOCK
|
|
| 2. |
622-00064E
|
[1] |
DOOR;L.H
|
|
| 20. |
2120-2196D2
|
[19] |
BOLT;SET M10X1.5X25
|
|
| 21. |
S0560453
|
[14] |
BOLT M12X1.75X35
|
|
| 22. |
2114-1058D46
|
[20] |
WASHER
|
|
| 23. |
S5102703
|
[24] |
WASHER
|
|
| 24. |
S4012733
|
[8] |
NUT
|
|
| 25. |
4114-4160B
|
[8] |
SHIM
|
|
| 27. |
S0560853
|
[4] |
BOLT M12X1.75X55
|
|
| 28. |
2114-1058D30
|
[8] |
. WASHER
|
|
| 29. |
2120-2166D2
|
[3] |
BOLT
|
|
| 2A. |
2125-9054
|
[1] |
LOCK
|
|
| 3. |
142-00023H
|
[1] |
GUARD;RADIATOR
|
101569-00110
|
| 3. |
101569-00110
|
[1] |
|
|
| 30. |
2114-1898D1
|
[21] |
WASHER
|
|
| 31. |
2114-2031D5
|
[15] |
WASHER
|
|
| 32. |
2120-2166D1
|
[4] |
BOLT
|
|
| 33. |
S4012533
|
[8] |
NUT
|
|
| 34. |
S5102503
|
[8] |
. WASHER
|
|
| 36. |
139-00014B
|
[2] |
CABLE
|
|
| 37. |
2120-1413D3
|
[4] |
BOLT;U M10X1.5
|
|
| 38. |
S5102603
|
[8] |
. WASHER
|
|
| 39. |
S4012633
|
[18] |
NUT
|
|
| 3A. |
4621-2347
|
[1] |
COVER
|
|
| 3B. |
2120-9006
|
[2] |
BOLT;WING M6X1.0
|
|
| 3C. |
1.162-00001
|
[1] |
RUBBER;CUSHION
|
|
| 4. |
110508-00403
|
[1] |
|
|
| 40. |
160-00019
|
[6] |
CAP;PLASTIC
|
|
| 41. |
S2212266
|
[6] |
BOLT
|
|
| 42. |
S0515053
|
[2] |
BOLT M12X1.75X25
|
|
| 43. |
S4012933
|
[2] |
NUT
|
|
| 45. |
S5010913
|
[2] |
WASHER
|
|
| 46. |
2120-2166D34
|
[8] |
BOLT M10X1.5X35
|
|
| 47. |
2120-2166D32
|
[2] |
BOLT
|
|
| 48. |
2114-1898D9
|
[10] |
WASHER
|
|
| 49. |
2114-2031D6
|
[2] |
WASHER
|
|
| 51. |
2120-2196D4
|
[1] |
BOLT;SET M10X1.5X30
|
|
| 52. |
621-00653C
|
[1] |
COVER
|
|
| 53. |
621-00654C
|
[1] |
COVER
|
|
| 54. |
2160-1004D5
|
[2] |
BUSHING;RUBBER
|
|
| 57. |
621-00816A
|
[1] |
COVER
|
|
| 58. |
195-01096A
|
[2] |
BRACKET
|
|
| 59. |
2114-1898D16
|
[8] |
WASHER
|
|
| 6. |
621-03040
|
[1] |
COVER;R.H
|
|
| 60. |
114-00525
|
[4] |
SHIM
|
|
| 61. |
S5010613
|
[4] |
WASHER
|
|
| 62. |
DS0401163
|
[2] |
WASHER
|
|
| 7. |
621-03041
|
[1] |
COVER;L.H
|
|
| 8. |
116-00015
|
[2] |
STOPPER
|
|
| 9. |
195-02856A
|
[1] |
LAMP BRACKET SUB ASS'Y(R.H)
|
|
| 9A. |
195-00458C
|
[1] |
BRACKET;RH
|
|
| 9B. |
2534-1158E
|
[1] |
LAMP;REAR COMB(R.H)
|
|
| 9B1. |
2534-6029
|
[1] |
CASE;LAMP
|
|
| 9B2. |
515-00015
|
[2] |
BULB
|
|
| 9B3. |
S863210H
|
[1] |
BULB(POSITION)24V 10W
|
|
| 9B4. |
S863212H
|
[2] |
BULB 24V 12W
|
|
| 9C. |
2124-1509D1
|
[1] |
CLIP
|
|
