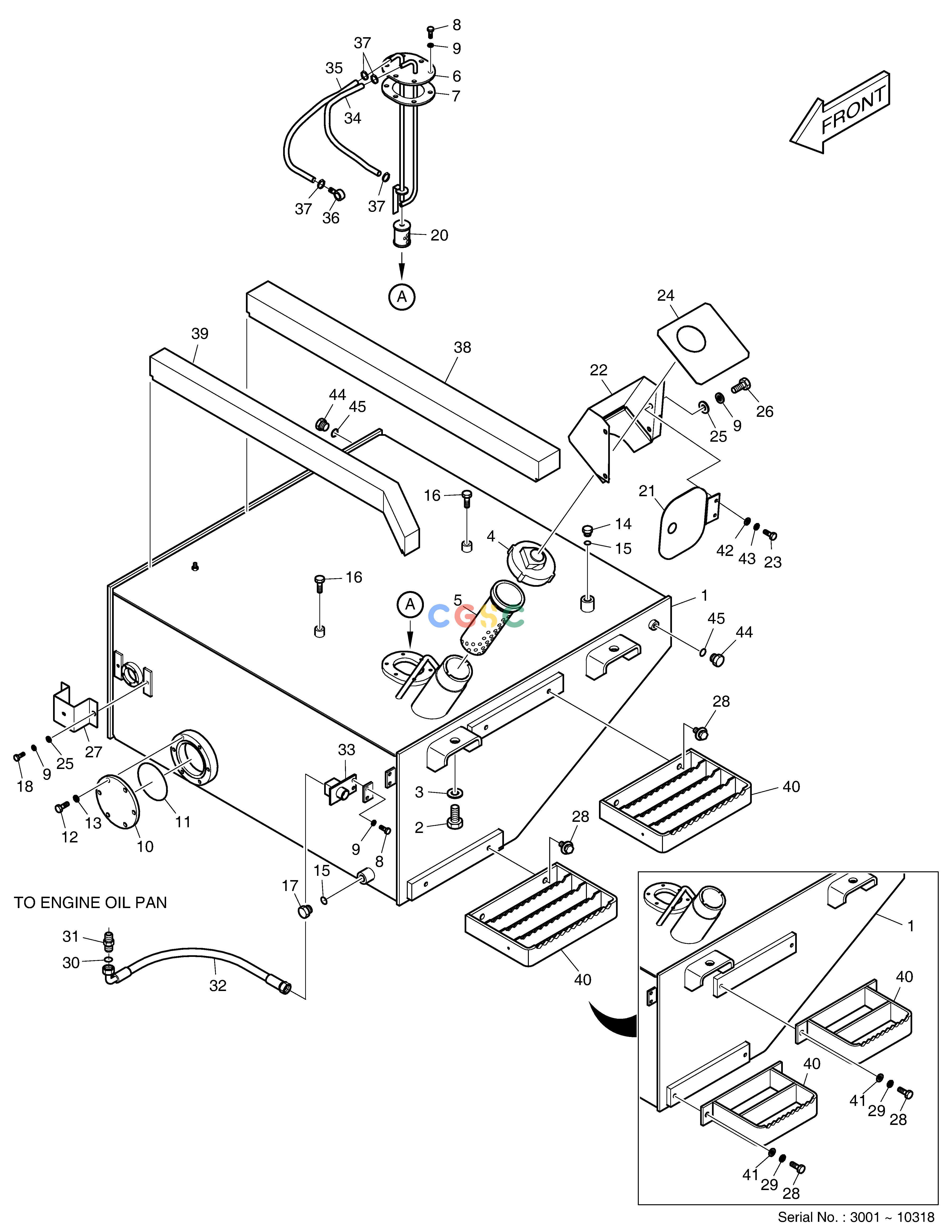

斗山零件查询FUEL TANK MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
266 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
450103-00281
|
[-] |
|
|
| -. |
470-00039B
|
[-] |
FUEL TANK ASS'Y
|
|
| 1. |
450103-00282A
|
[1] |
|
|
| 1. |
470-00038J
|
[1] |
TANK;FUEL
|
|
| 10. |
4473-1059A
|
[1] |
COVER
|
|
| 11. |
S8011050
|
[1] |
O-RING
|
|
| 12. |
S0512053
|
[6] |
BOLT
|
|
| 13. |
S5102603
|
[6] |
. WASHER
|
|
| 14. |
2181-1950D3
|
[1] |
PLUG
|
|
| 15. |
S8000181
|
[2] |
O-RING
|
|
| 16. |
S0514653
|
[2] |
BOLT M12X1.75X16
|
|
| 17. |
181-00343A
|
[1] |
PLUG;DRAIN
|
|
| 18. |
S0508353
|
[2] |
BOLT M8X1.25X10
|
|
| 2. |
S0527566
|
[4] |
BOLT M20X2.5X45
|
|
| 20. |
2471-1004B
|
[1] |
FILTER
|
|
| 21. |
621-02291
|
[1] |
COVER
|
|
| 22. |
125-00013C
|
[1] |
CASE
|
|
| 23. |
S0504653
|
[2] |
. BOLT
|
|
| 24. |
198-00017B
|
[1] |
RUBBER
|
|
| 25. |
S5010513
|
[6] |
WASHER
|
|
| 26. |
S0508853
|
[4] |
. BOLT
|
|
| 27. |
621-00610A
|
[1] |
COVER;FUEL SENSOR
|
|
| 28. |
DS0025018
|
[4] |
BOLT
|
|
| 28. |
S0515253
|
[4] |
. BOLT
|
|
| 29. |
S5102703
|
[4] |
WASHER
|
|
| 3. |
2114-9012A
|
[4] |
WASHER
|
|
| 30. |
S8180481
|
[1] |
RING;SEAL
|
|
| 31. |
2181-1917D35
|
[1] |
ADAPTER
|
|
| 32. |
2184-1036D418
|
[1] |
HOSE
|
|
| 33. |
4181-2692
|
[1] |
COCK;DRAIN
|
|
| 34. |
2185-1247D63
|
[1] |
HOSE 1230L
|
|
| 35. |
2185-1247D104
|
[1] |
HOSE 1300L
|
|
| 36. |
2181-9015
|
[1] |
PIPE;FUEL
|
|
| 37. |
2124-1024D1
|
[4] |
CLAMP;HOSE
|
|
| 38. |
161-00187
|
[1] |
FOAM
|
|
| 39. |
161-00188
|
[1] |
FOAM
|
|
| 4. |
2188-9006A
|
[1] |
CAP;FUEL
|
|
| 40. |
110406-01643
|
[2] |
|
110406-02068
|
| 40. |
110406-02068
|
[2] |
|
|
| 40. |
195-01226
|
[2] |
BRACKET
|
|
| 41. |
S5010713
|
[4] |
WASHER;PLAIN
|
|
| 42. |
S5010303
|
[2] |
WASHER
|
|
| 43. |
S5102303
|
[2] |
. WASHER
|
|
| 44. |
2181-1890D2
|
[2] |
PLUG
|
|
| 45. |
S8000111
|
[2] |
O-RING
|
|
| 5. |
2471-9010A
|
[1] |
FILTER
|
|
| 6. |
193-00150B
|
[1] |
PIPE;FUEL
|
|
| 7. |
4180-4012
|
[1] |
PACKING
|
|
| 8. |
S0508653
|
[8] |
BOLT
|
|
| 9. |
S5102503
|
[14] |
. WASHER
|
|
