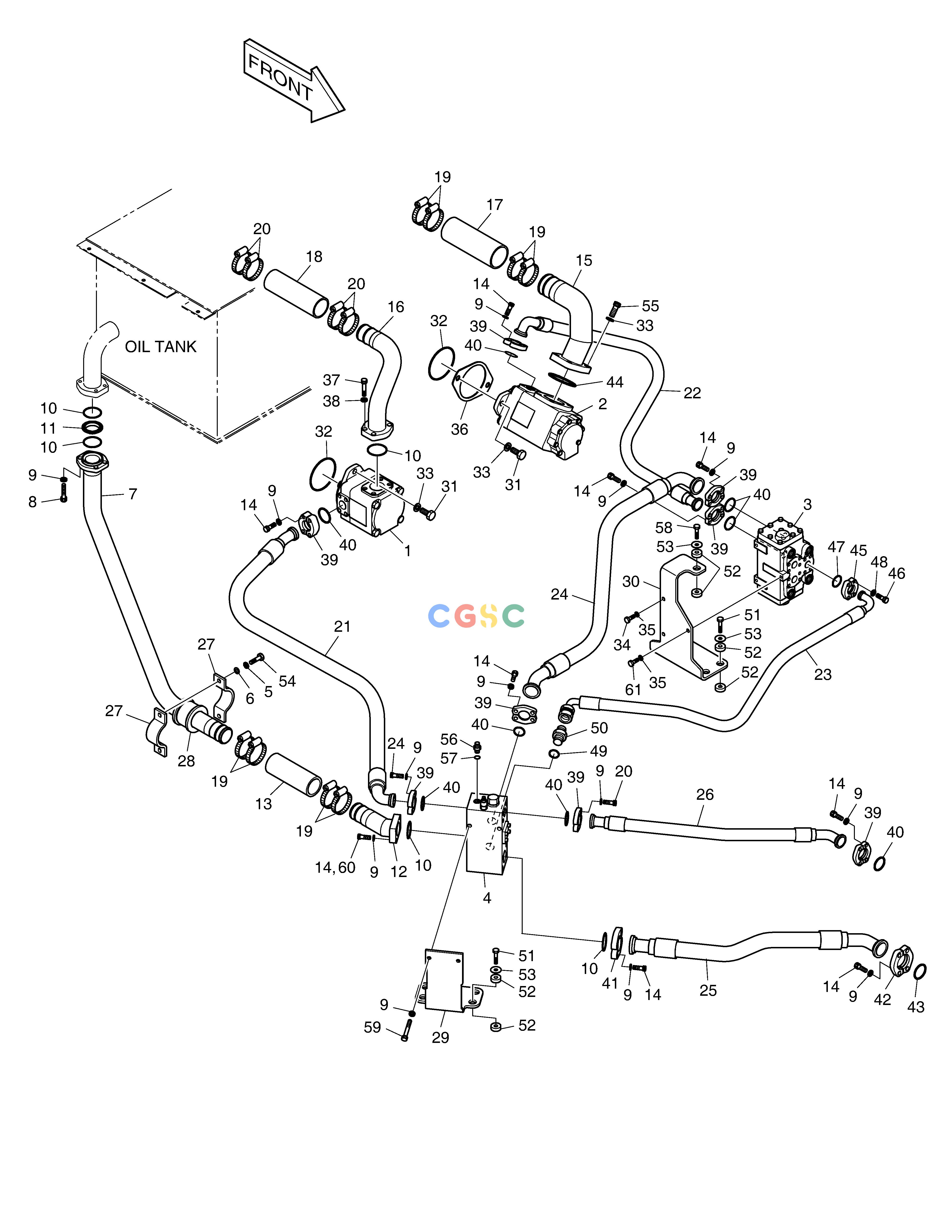

斗山零件查询MAIN PIPING MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
245 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-01811A
|
[-] |
MAIN PIPING
|
|
| 1. |
401-00156
|
[1] |
MAIN PUMP
|
|
| 10. |
2180-1026D27
|
[5] |
O-RING
|
|
| 11. |
114-00247
|
[1] |
THRUSTER
|
|
| 12. |
182-00019A
|
[1] |
PIPE;RETURN
|
|
| 13. |
2185-1776D27
|
[1] |
HOSE
|
|
| 14. |
S2215366
|
[42] |
BOLT
|
|
| 15. |
182-00021C
|
[1] |
PIPE;SUCTION
|
|
| 16. |
182-00020B
|
[1] |
PIPE;SUCTION
|
|
| 17. |
2185-1776D14
|
[1] |
HOSE 210L
|
|
| 18. |
2185-1776D16
|
[1] |
HOSE
|
|
| 19. |
S8450082
|
[8] |
CLAMP;HOSE
|
|
| 2. |
401-00158
|
[1] |
PUMP;PILOT & STEER
|
|
| 20. |
2124-1024D13
|
[4] |
CLAMP;HOSE
|
|
| 21. |
184-00049A
|
[1] |
HOSE 1.25"-485L
|
|
| 22. |
2184-1100D159
|
[1] |
HOSE 1.25"-800L
|
|
| 23. |
2184-1127D15
|
[1] |
HOSE 1"-785L
|
|
| 24. |
2184-1094D38
|
[1] |
HOSE 1.25"-650L
|
|
| 25. |
2184-1098D87
|
[1] |
HOSE 2"-1.5"-1100L
|
|
| 26. |
2184-1098D86
|
[1] |
HOSE 1.25"-1100L
|
|
| 27. |
124-00045B
|
[2] |
CLAMP
|
|
| 28. |
161-00097
|
[1] |
RUBBER
|
|
| 29. |
195-00521
|
[1] |
BRACKET
|
|
| 3. |
4420-9471B
|
[1] |
STEER AMPLIFIER
|
|
| 30. |
195-00522B
|
[1] |
BRACKET
|
|
| 31. |
S0521451
|
[4] |
BOLT M16X2.0X40
|
|
| 32. |
S8011300
|
[2] |
O-RING
|
|
| 33. |
S5102901
|
[8] |
. WASHER;SPRING
|
|
| 34. |
S0558153
|
[2] |
BOLT
|
|
| 35. |
S5102603
|
[3] |
. WASHER
|
|
| 36. |
180-00189
|
[1] |
GASKET
|
|
| 37. |
S2218466
|
[4] |
BOLT:SOCKET
|
|
| 38. |
S5110801
|
[4] |
WASHER;SPRING
|
|
| 39. |
181-00603
|
[16] |
FLANGE;SPLIT
|
|
| 4. |
410146-00002
|
[1] |
|
410146-00002A
|
| 4. |
410146-00002A
|
[1] |
|
|
| 4. |
420-00522A
|
[1] |
UNLOADER VALVE
|
410146-00002
|
| 40. |
2180-1026D23
|
[8] |
O-RING
|
|
| 41. |
4215-1003D6
|
[2] |
FLANGE;SPLIT
|
|
| 42. |
4215-1003D5
|
[2] |
FLANGE
|
|
| 43. |
2180-1026D28
|
[1] |
O-RING
|
|
| 44. |
2180-1026D32
|
[1] |
O-RING
|
|
| 45. |
2181-9083
|
[2] |
FLANGE;SPLIT
|
|
| 46. |
S2212366
|
[4] |
BOLT
|
|
| 47. |
2180-1026D19
|
[1] |
O-RING
|
|
| 48. |
S5110603
|
[4] |
WASHER
|
|
| 49. |
S8000291
|
[1] |
O-RING
|
|
| 5. |
S5102703
|
[2] |
WASHER
|
|
| 50. |
2181-1126D25
|
[1] |
ADAPTER
|
|
| 51. |
S0558553
|
[8] |
BOLT;HEX.
|
|
| 52. |
2512-1077
|
[18] |
RUBBER;CUSHION
|
|
| 53. |
2114-1058D62
|
[9] |
WASHER
|
|
| 54. |
S0560653
|
[2] |
BOLT M12X1.75X45
|
|
| 55. |
S2221466
|
[4] |
BOLT;SOCKET M16X2.0X40
|
|
| 56. |
2181-1126D14
|
[1] |
ADAPTER
|
|
| 57. |
S8000111
|
[1] |
O-RING
|
|
| 58. |
S0558453
|
[1] |
BOLT
|
|
| 59. |
S2216566
|
[2] |
BOLT;SOCKET
|
|
| 6. |
2114-1058D72
|
[2] |
WASHER
|
|
| 60. |
S2215466
|
[2] |
BOLT
|
|
| 61. |
S0512053
|
[1] |
BOLT
|
|
| 7. |
182-00018A
|
[1] |
PIPE;RETURN
|
|
| 8. |
S2215766
|
[4] |
BOLT
|
|
| 9. |
S5110703
|
[50] |
WASHER
|
|
