斗山零件查询REMOTE PRESSURE CHECK PIPING MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
118 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400-01822
|
[-] |

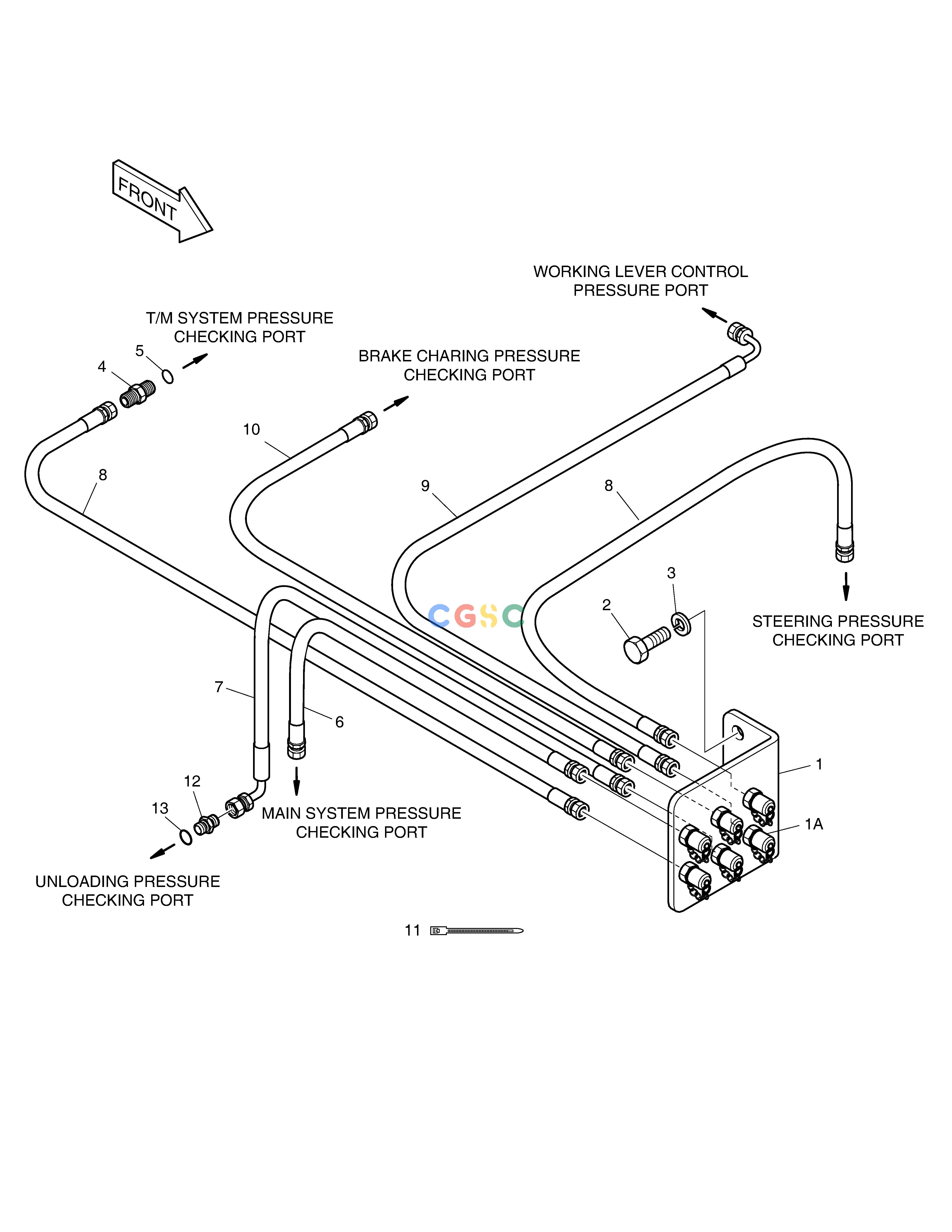

REMOTE PRESSURE CHECK PIPING
|
|
| 1. |
284-00007A
|
[1] |
CHECK PORTS ASS'Y
|
|
| 10. |
2184-1026D338
|
[1] |
HOSE PF1/4-1050L
|
|
| 11. |
2124-1084D4
|
[2] |
CLIP;BAND
|
|
| 12. |
2181-1126D14
|
[1] |
ADAPTER
|
|
| 13. |
S8000111
|
[1] |
O-RING
|
|
| 1A. |
120-00003
|
[6] |
SCREW;COUPLING
|
|
| 2. |
S0512053
|
[2] |
BOLT
|
|
| 3. |
S5102603
|
[2] |
. WASHER
|
|
| 4. |
2181-1917D6
|
[1] |
ADAPTER
|
|
| 5. |
S8180251
|
[1] |
PACKING
|
|
| 6. |
2184-1026D209
|
[1] |
HOSE 700L
|
|
| 7. |
2184-1036D425
|
[1] |
HOSE PF1/4-800L
|
|
| 8. |
2184-1026D90
|
[2] |
HOSE PF1/4-1100L
|
|
| 9. |
2184-1036D12
|
[1] |
HOSE PF1/4-1100L
|
|
