斗山零件查询PILOT PIPING - 2SPOOL MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
515 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1008574
|
[-] |

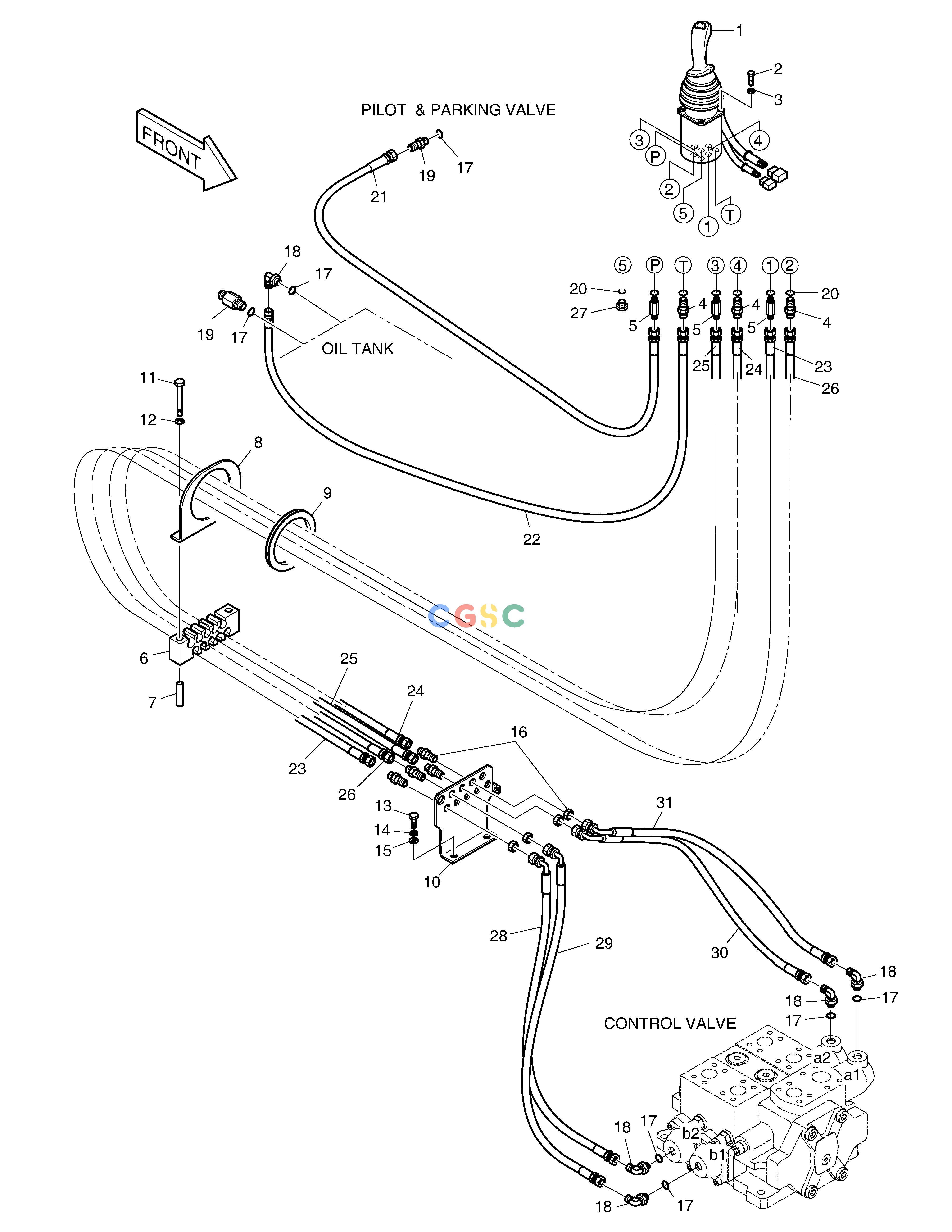

PILOT PIPING
|
|
| 1. |
426-00104
|
[1] |
VALVE;REMOCON
|
|
| 10. |
191-00363
|
[1] |
PLATE
|
|
| 11. |
S0556853
|
[2] |
BOLT M8X1.25X75
|
|
| 12. |
S5102903
|
[2] |
WASHER
|
|
| 13. |
S0514953
|
[2] |
BOLT M12X1.75X22
|
|
| 14. |
S5102703
|
[2] |
WASHER
|
|
| 15. |
S5010713
|
[2] |
WASHER;PLAIN
|
|
| 16. |
2181-2718
|
[4] |
ADAPTER;JOINT
|
|
| 17. |
S8000141
|
[7] |
O-RING
|
|
| 18. |
2181-1702D5
|
[5] |
ELBOW
|
|
| 19. |
2181-1126D7
|
[2] |
ADAPTER
|
|
| 2. |
S2204861
|
[4] |
BOLT
|
|
| 20. |
S8180211
|
[7] |
SEAL;RING
|
|
| 21. |
2184-1026D160
|
[1] |
HOSE PF3/8-1700L
|
|
| 22. |
2184-1026D221
|
[1] |
HOSE PF3/8-2270L
|
|
| 23. |
2184-1026D160
|
[1] |
HOSE PF3/8-1700L
|
|
| 24. |
2184-1026D220
|
[1] |
HOSE PF3/8-1810L
|
|
| 25. |
2184-1026D220
|
[1] |
HOSE PF3/8-1810L
|
|
| 26. |
2184-1026D160
|
[1] |
HOSE PF3/8-1700L
|
|
| 27. |
2181-2667
|
[1] |
PLUG
|
|
| 28. |
2184-1060D233
|
[1] |
HOSE PF3/8-1110L
|
|
| 29. |
2184-1060D162
|
[1] |
HOSE PF3/8-1150L
|
|
| 3. |
S5110301
|
[4] |
WASHER;SPRING M6
|
|
| 30. |
2184-1060D162
|
[1] |
HOSE PF3/8-1150L
|
|
| 31. |
2184-1060D232
|
[1] |
HOSE PF3/8-1200L
|
|
| 4. |
2181-1917D55
|
[3] |
ADAPTER PF1/4-PF3/8
|
|
| 5. |
2181-1917D57
|
[3] |
ADAPTER
|
|
| 6. |
124-00016
|
[1] |
CLAMP;RUBBER
|
|
| 7. |
4114-1717
|
[2] |
SPACER;TUBE
|
|
| 8. |
195-01072
|
[1] |
BRACKET
|
|
| 9. |
2160-1004D57
|
[1] |
GROMMET
|
|
