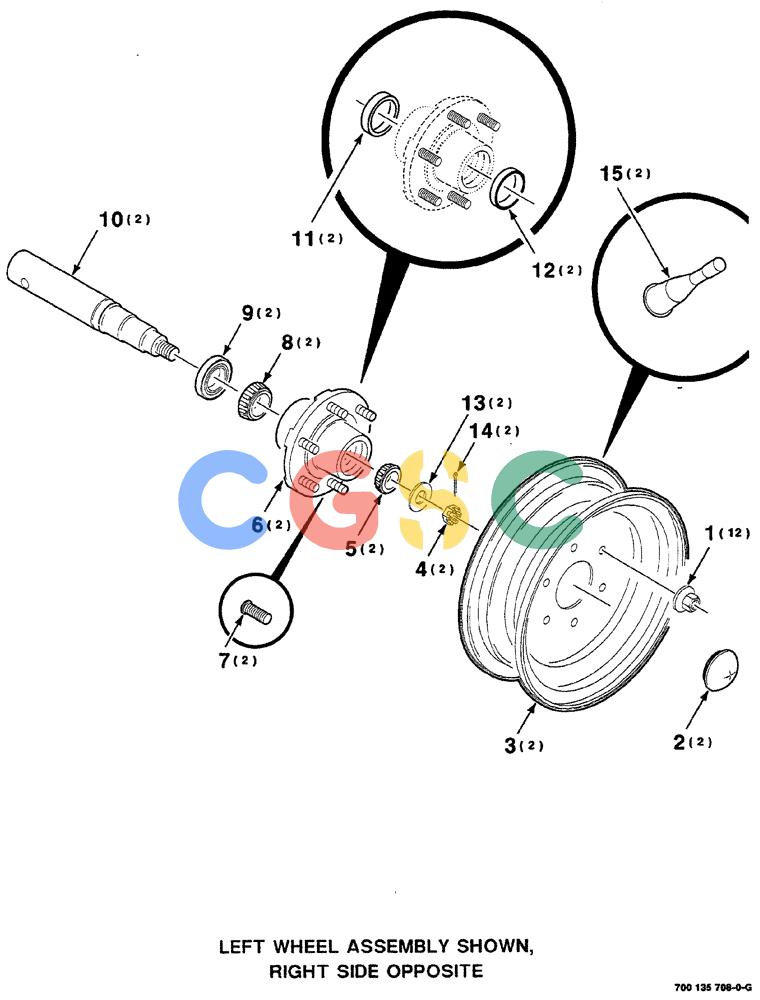

凯斯零件查询(RS561) - CASE IH ROUND BALER (1/99-12/00) (07-010) - WHEEL, HUB AND AXLE ASSEMBLY (16.1 INCH) Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
1005 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700715395
|
[12] |
WHEEL NUT
|
HFI
9/16-18 WHEEL NUT, FLANGED
|
| 2. |
D143405
|
[2] |
CAP
|
CAS
HUB-CAP Superseded by part number: 137395
|
| 3. |
700717857
|
[2] |
RIM
|
CAS
WHEEL
|
| 4. |
425-1314
|
[2] |
SLOTTED NUT,7/8"-14, G5
|
CAS
Superseded by part number: 84151573
|
| 5. |
560953R91
|
[2] |
BEARING ASSY,1.375" ID x 2.875" OD x 0.9688"
|
IH
outer Superseded by part number: 86516471
|
| 6. |
700714739
|
[2] |
HUB
|
CAS
HUB (Includes Items 7, 11 and 12) Superseded by part number: 700722426
|
| 7. |
826370
|
[2] |
BOLT,Ribbed Nk, 9/16" - 18 x 2.12"
|
CAS
STUD, 9/16-18 x 2.12 Superseded by part number: T57455
|
| 8. |
300426R91
|
[2] |
BEARING ASSY,45.618 mm ID x 25.4 mm
|
IH
inner Superseded by part number: 512725
|
| 9. |
491715R91
|
[2] |
OIL SEAL
|
IH
|
| 10. |
700135709
|
[2] |
SPINDLE
|
HFI
|
| 11. |
130503H
|
[2] |
BEARING CUP
|
IH
CUP inner Superseded by part number: 86900365
|
| 12. |
165964R1
|
[2] |
BEARING CUP
|
IH
CUP outer Superseded by part number: 86516462
|
| 13. |
96-11094
|
[2] |
WASHER,0.94" ID x 1.75" OD x 0.13" Thk
|
CAS
hardened plain, 7/8
|
| 14. |
432-1024
|
[2] |
COTTER PIN,5/32" x 1 1/2"
|
CAS
5/32" x 1 1/2" Superseded by part number: 72187233, 88350
|
| 15. |
A38261
|
[2] |
VALVE
|
CAS
STEM Superseded by part number: 196033
|
