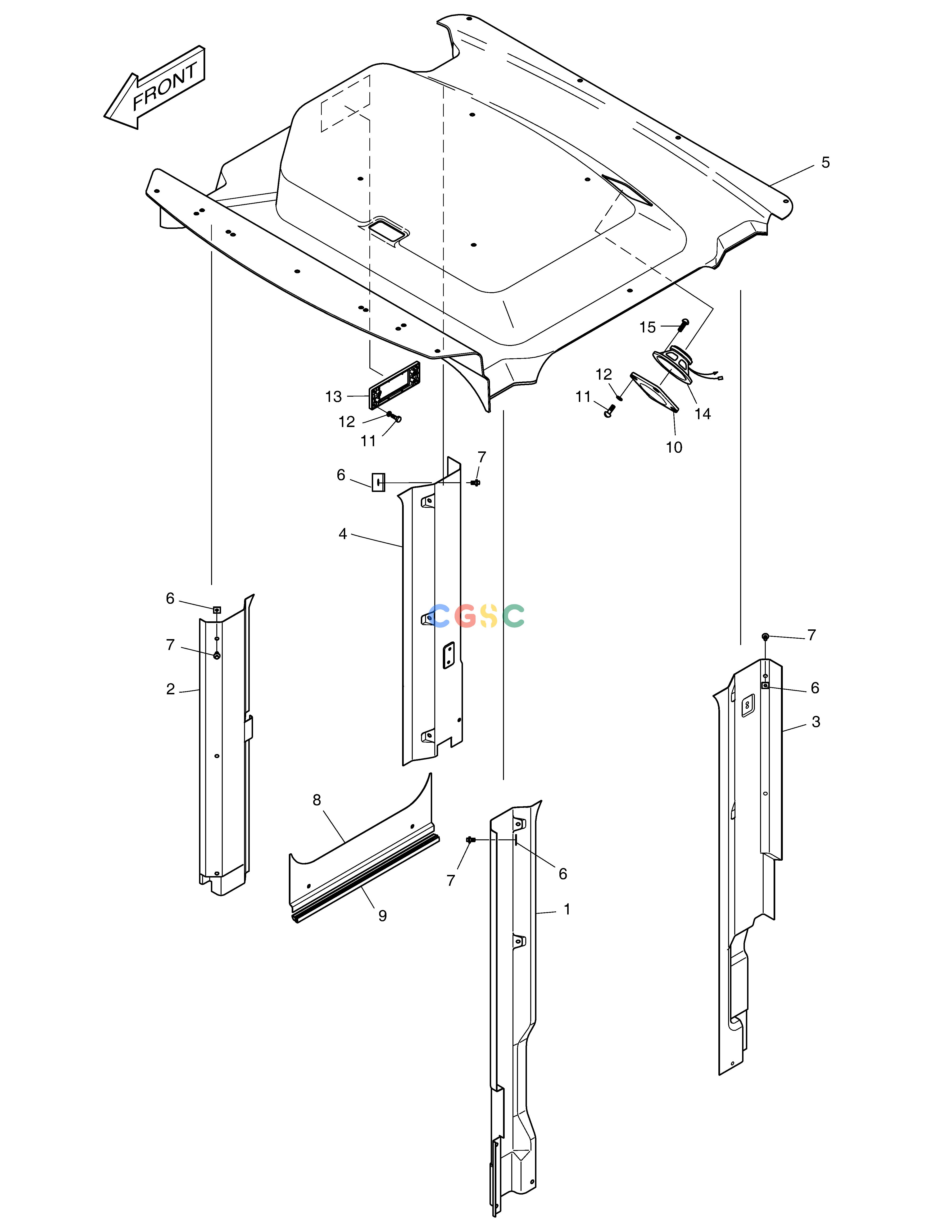

斗山零件查询SHEET ASS'Y MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
700 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
621-03178
|
[-] |
SHEET ASS'Y;INTERIOR
|
|
| 1. |
4627-1628A
|
[1] |
SHEET;INTERIOR
|
|
| 10. |
621-00268
|
[2] |
COVER;SPEAKER
|
|
| 11. |
2120-2166D7
|
[12] |
SCREW
|
|
| 12. |
2114-1898D3
|
[12] |
WASHER
|
|
| 13. |
621-00051
|
[1] |
COVER
|
|
| 14. |
2541-9020
|
[2] |
SPEAKER
|
|
| 15. |
S3450563
|
[8] |
SCREW M4X0.7X8
|
|
| 2. |
4627-1629A
|
[1] |
SHEET;INTERIOR
|
|
| 3. |
4627-1630A
|
[1] |
SHEET;INTERIOR
|
|
| 4. |
4627-1631B
|
[1] |
SHEET;INTERIOR
|
|
| 5. |
621-03179
|
[1] |
SHEET;INTERIOR
|
|
| 6. |
4627-1633
|
[41] |
CUSHION;RUBBER 2T
|
|
| 7. |
4120-2219
|
[41] |
SCRIVET
|
|
| 8. |
621-00275A
|
[1] |
SHEET;INTERIOR
|
|
| 9. |
2160-1023
|
[1] |
. TRIM;RUBBER
|
|
