斗山零件查询STEER PIPING MEGA 400-V (CHINA) Doosan parts catalog online

广数供应链运营团队, 15 02月, 2025，浏览： 502 次

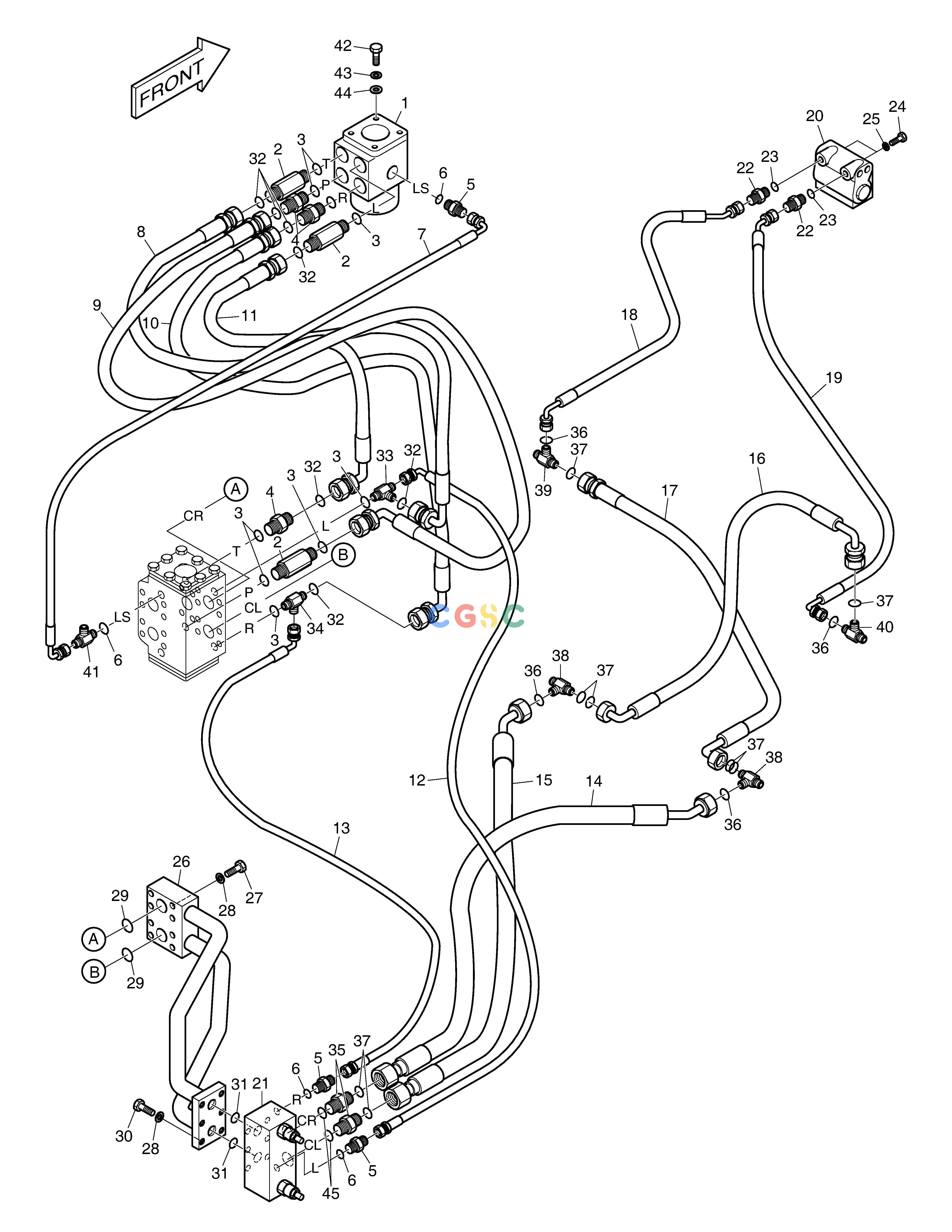

Pos.	Part No	Qty	Parts name
-.	400-00304	[-]	STEER PIPING
1.	4420-9470A	[1]	STEERING UNIT
10.	2184-1197D177	[1]	HOSE PF1/2-1600L
11.	2184-1212D64	[1]	HOSE PF1/2-1150L
12.	2184-1026D42	[1]	HOSE PF1/4-800L
13.	2184-1036D64	[1]	HOSE
14.	2184-1212D62	[1]	HOSE PF3/4-700L
15.	2184-1212D62	[1]	HOSE PF3/4-700L
16.	2184-1198D62	[1]	HOSE PF3/4-825L
17.	2184-1197D178	[1]	HOSE PF3/4-825L
18.	2184-1060D234	[1]	HOSE PF1/4-830L
19.	DS2058167	[1]	HOSE PF1/4-850L
2.	2181-4133D46	[3]	ADAPTER
20.	420-00172	[1]	VALVE;CUSHION
21.	4420-9473	[1]	VALVE;DUAL CROSS RELIEF
22.	2181-1126D42	[2]	ADAPTER
23.	2180-1026D26	[2]	O-RING
24.	S0508753	[2]	BOLT M8X1.25X18
25.	S5102503	[2]	. WASHER
26.	140-00290	[1]	PIPE
27.	S2212766	[8]	BOLT;SOCKET M10X1.5X55
28.	S5110603	[14]	WASHER
29.	2180-1026D19	[2]	O-RING
3.	S8000181	[8]	O-RING
30.	S2212166	[6]	BOLT;SOCKET M10X1.5X28
31.	2180-1026D2	[2]	O-RING
32.	S8030081	[8]	O-RING
33.	181-00368D1	[1]	TEE
34.	181-00369D1	[1]	TEE
35.	2181-4133D5	[2]	. ADAPTER
36.	S8000231	[4]	O-RING
37.	S8030121	[8]	O-RING
38.	181-00371D1	[2]	TEE
39.	181-00369D2	[1]	TEE
4.	2181-4133D3	[3]	ADAPTER
40.	181-00368D2	[1]	TEE
41.	2181-1951D1	[1]	TEE
42.	S0511953	[4]	BOLT
43.	S5102603	[4]	. WASHER
44.	S5010613	[4]	WASHER
45.	S8000241	[2]	O-RING
5.	2181-1126D14	[3]	ADAPTER
6.	S8000111	[4]	O-RING
7.	2184-1061D345	[1]	HOSE PF1/4-1350L
8.	2184-1197D177	[1]	HOSE PF1/2-1600L
9.	2184-1197D177	[1]	HOSE PF1/2-1600L
