斗山零件查询TROPICAL PARTS MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
704 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

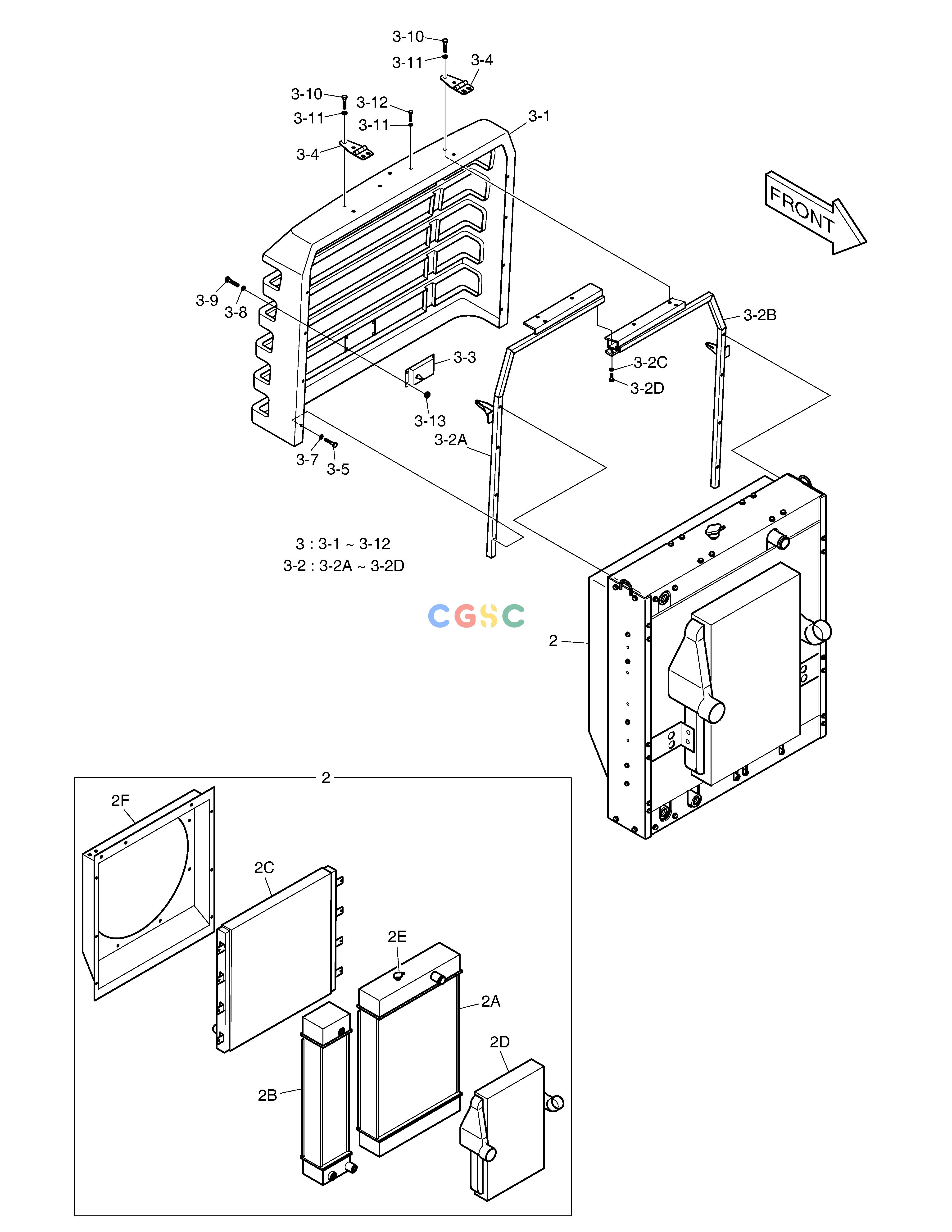

K1000016A
|
[-] |
TROPICAL PARTS-OPT.
|
|
| -. |
420212-02758
|
[-] |
|
|
| 2. |
202-00115
|
[1] |
RADIATOR
|
440211-00131
|
| 2. |
440211-00131
|
[1] |
|
|
| 2A. |
20600712
|
[1] |
RADIATOR
|
|
| 2A. |
440211-00132
|
[1] |
|
|
| 2B. |
21801040
|
[1] |
HTD. OIL COOLER
|
|
| 2B. |
400206-00127
|
[1] |
|
|
| 2C. |
400206-00099
|
[1] |
|
|
| 2D. |
23100220
|
[1] |
INTER COOLER
|
|
| 2E. |
12101640
|
[1] |
CAP
|
|
| 2F. |
110948-00044
|
[1] |
|
|
| 3. |
623-00050C
|
[1] |
GRILL;RADIATOR
|
|
| 3-1. |
623-00052A
|
[1] |
GRILL;RADIATOR
|
|
| 3-10. |
2120-2166D34
|
[4] |
BOLT M10X1.5X35
|
|
| 3-11. |
2114-1898D1
|
[6] |
WASHER
|
|
| 3-12. |
2120-2166D2
|
[2] |
BOLT
|
|
| 3-13. |
S4012333
|
[4] |
NUT
|
|
| 3-2. |
195-02368
|
[1] |
BRACKET ASS'Y
|
|
| 3-2A. |
195-01816C
|
[1] |
BRACKET
|
|
| 3-2B. |
195-01946B
|
[1] |
BRACKET
|
|
| 3-2C. |
2114-1898D1
|
[2] |
WASHER
|
|
| 3-2D. |
2120-2166D2
|
[2] |
BOLT
|
|
| 3-3. |
125-00034
|
[1] |
CATCH
|
|
| 3-4. |
171-00040
|
[2] |
HINGE
|
|
| 3-5. |
S3451113
|
[10] |
SCREW M8X1.25X20
|
|
| 3-7. |
S5010513
|
[10] |
WASHER
|
|
| 3-8. |
S5010313
|
[4] |
WASHER
|
|
| 3-9. |
S0505053
|
[4] |
BOLT
|
|
