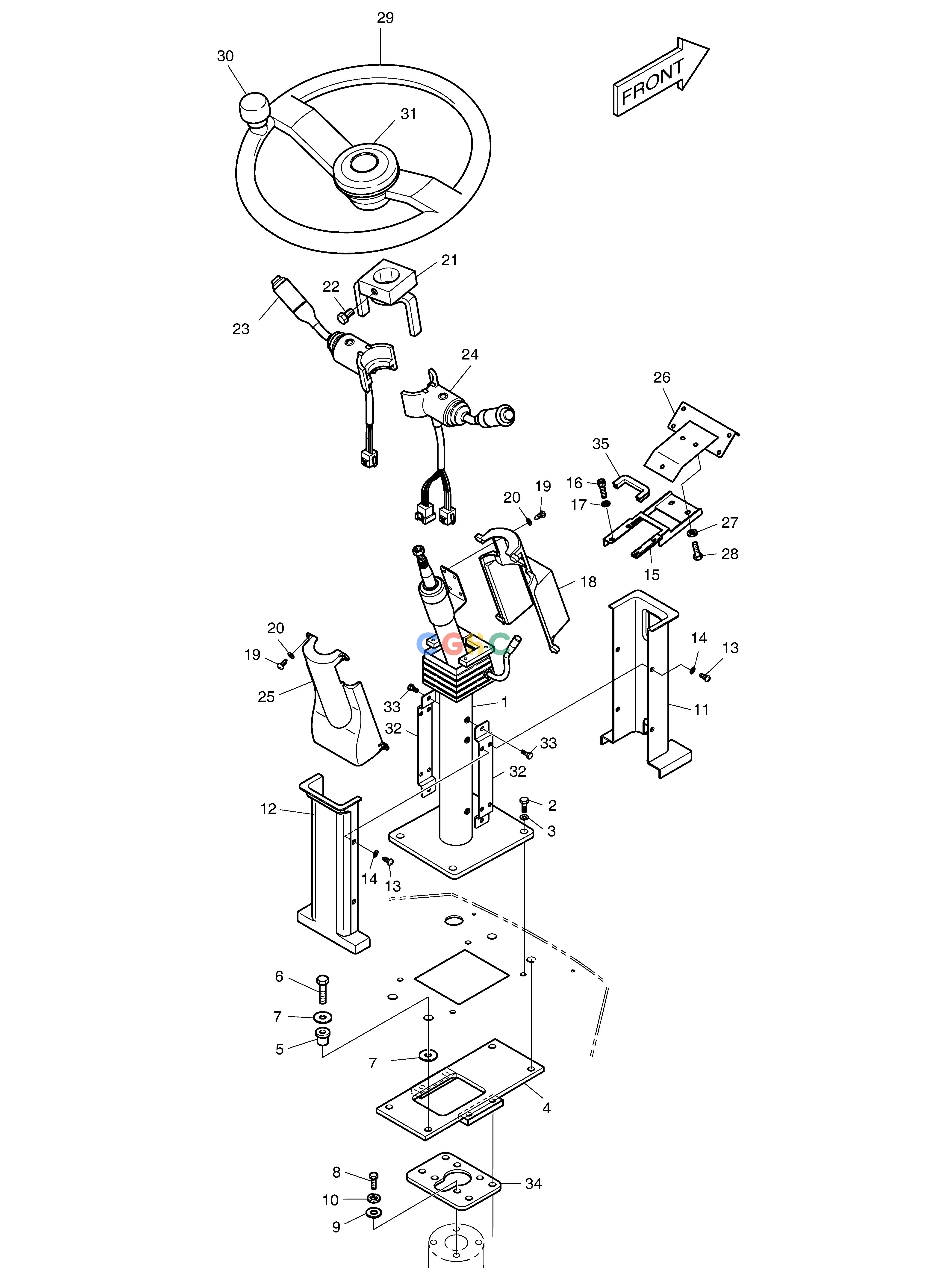

斗山零件查询STEERING ASS'Y MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
824 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
303-00022B
|
[-] |
STEERING COLUMN ASS'Y
|
|
| 1. |
303-00023
|
[1] |
COLUMN
|
|
| 10. |
S5102603
|
[4] |
. WASHER
|
|
| 11. |
621-02962A
|
[1] |
COVER
|
|
| 12. |
621-02963A
|
[1] |
COVER
|
|
| 13. |
2120-2166D10
|
[8] |
SCREW
|
|
| 14. |
2114-1898D3
|
[8] |
WASHER
|
|
| 15. |
195-02502A
|
[1] |
BRACKET
|
|
| 16. |
S2208866
|
[4] |
BOLT
|
|
| 17. |
S5010503
|
[4] |
WASHER
|
|
| 18. |
621-02964
|
[1] |
COVER
|
|
| 19. |
2120-2166D8
|
[8] |
BOLT
|
|
| 2. |
S0515053
|
[4] |
BOLT M12X1.75X25
|
|
| 20. |
2114-1898D4
|
[8] |
WASHER
|
|
| 21. |
4142-1160C
|
[1] |
STRIKER
|
|
| 22. |
S0504353
|
[1] |
BOLT M6X1.0X10
|
|
| 23. |
4549-6072
|
[1] |
SWITCH;SELECTOR (L.H)
|
|
| 24. |
4549-9418
|
[1] |
SWITCH;COLUMN
|
|
| 25. |
621-02965
|
[1] |
COVER
|
|
| 26. |
4197-2434C
|
[1] |
BRACKET
|
|
| 27. |
2114-1898D2
|
[2] |
WASHER
|
|
| 28. |
2120-2166D25
|
[2] |
BOLT
|
|
| 29. |
154-00012
|
[1] |
WHEEL;STEERING
|
|
| 3. |
2114-1898D6
|
[4] |
WASHER
|
|
| 30. |
132-00008
|
[1] |
KNOB;STEERING WHEEL
|
|
| 31. |
160-00009
|
[1] |
CAP;STEERING WHEEL
|
|
| 32. |
195-02784B
|
[2] |
BRACKET
|
|
| 33. |
2120-2166D28
|
[4] |
. BOLT
|
|
| 34. |
191-00563B
|
[1] |
PLATE
|
|
| 35. |
K1005190
|
[1] |
TRIM;RUBBER
|
|
| 4. |
195-00579C
|
[1] |
BRACKET
|
|
| 5. |
4161-9036
|
[4] |
MOUNT;FLEX
|
|
| 6. |
2120-2166D29
|
[4] |
BOLT M10X1.5X40
|
|
| 7. |
2114-1898D16
|
[8] |
WASHER
|
|
| 8. |
S0511753
|
[4] |
BOLT M10X1.5X18
|
|
| 9. |
S5010613
|
[4] |
WASHER
|
|
