| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

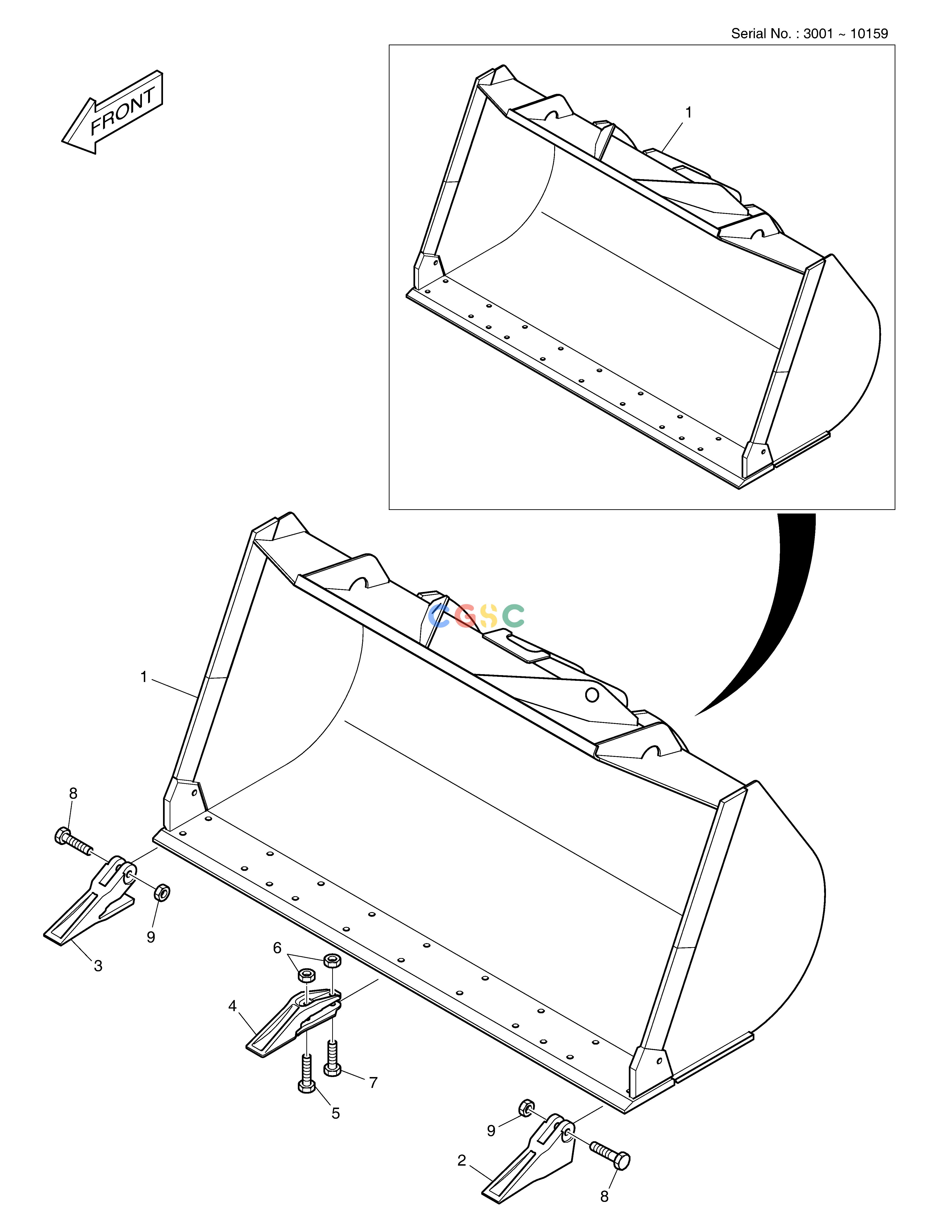

| -. | 704-00126H | [1] | BUCKET ASS'Y | 230104-00264A |
| -. | 230104-00264A | [1] | ||
| 1. | 704-00108J | [1] | BUCKET-3.9㎥ | 230104-00263A |
| 1. | 230104-00263A | [1] | ||
| 2. | 4713-1131C | [1] | TOOTH;SIDE(L.H.) | |
| 3. | 4713-1132C | [1] | TOOTH;SIDE(R.H.) | |
| 4. | 4713-1130E | [7] | TOOTH | |
| 5. | S0534666 | [7] | BOLT | |
| 6. | S4013343 | [14] | NUT | |
| 7. | S0534466 | [7] | BOLT | |
| 8. | S0779966 | [2] | BOLT M30X2.0X125 | |
| 9. | S4031533 | [2] | NUT M30X2.0 |
