| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

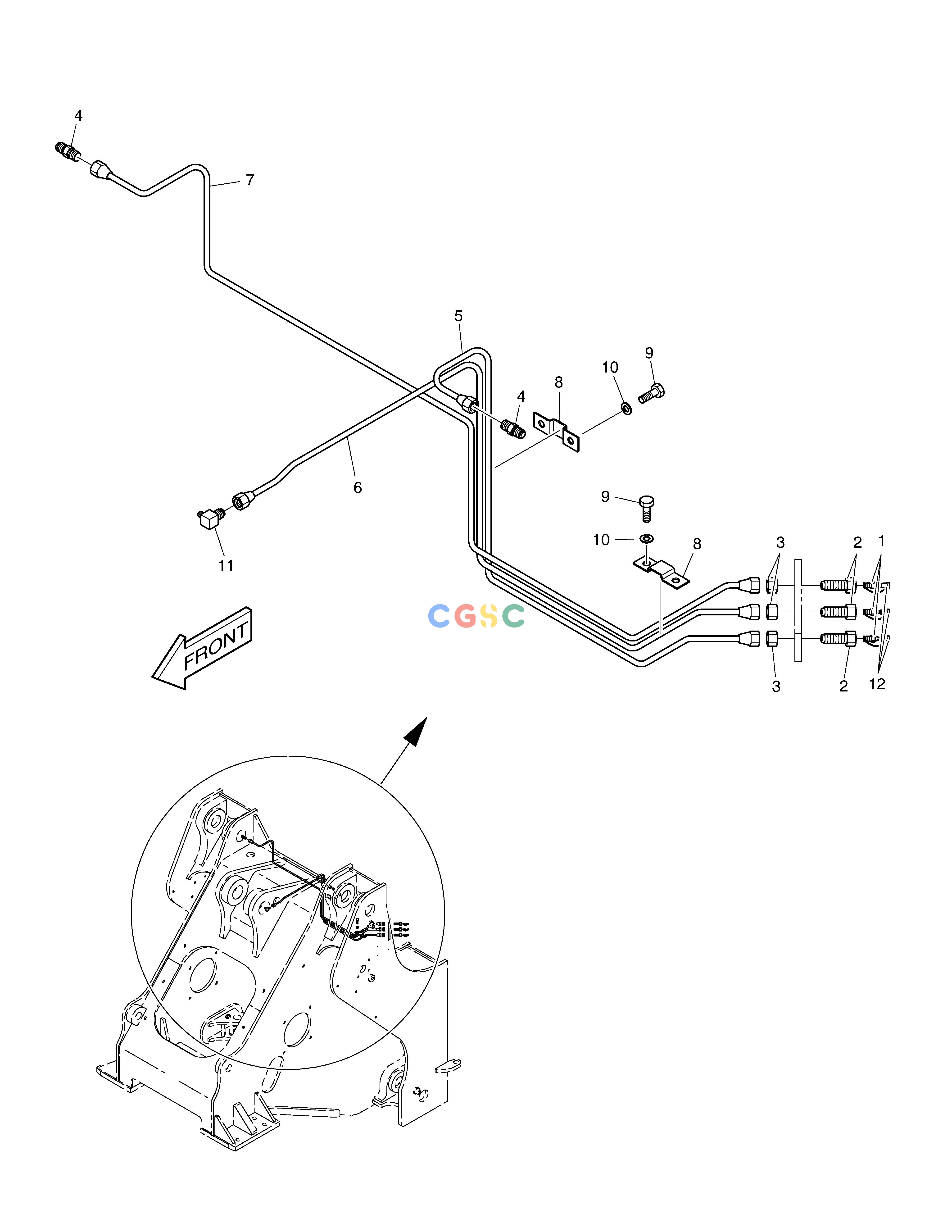

| -. | 400-00315 | [-] | FRONT LUBRICATION PIPING | |
| 1. | S6710041 | [3] | NIPPLE,GREASE | |
| 10. | S5102603 | [4] | . WASHER | |
| 11. | 2181-1918D7 | [1] | ELBOW | |
| 12. | 160-00020 | [3] | CAP | |
| 2. | 181-00525 | [3] | REDUCER | |
| 3. | S4032833 | [3] | NUT | |
| 4. | 2181-1919D9 | [2] | ADAPTER | |
| 5. | 140-00281A | [1] | PIPE | |
| 6. | 140-00282A | [1] | PIPE | |
| 7. | 140-00283A | [1] | PIPE | |
| 8. | 2124-1625 | [3] | CLAMP;PIPE | |
| 9. | S0511853 | [4] | BOLT |
