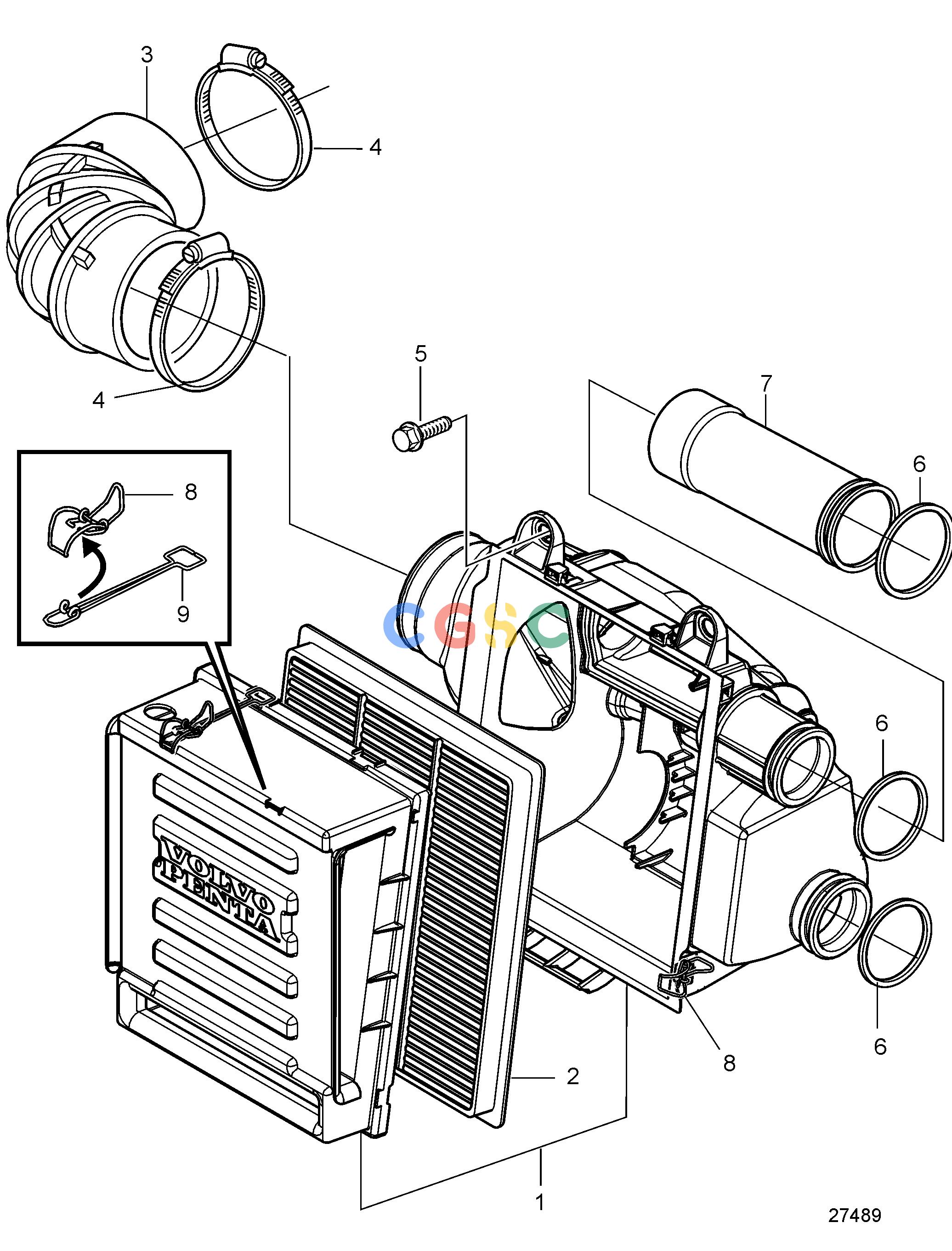

沃尔沃零件查询D6-300A-F; D6-300D-F; D6-300I-F; D6-330A-F; D6-330D-F; D6-330I-F; D6-370A-F; D6-370D-F; D6-370I-F; D6-400A-F; D6-435D-F; D6-435I-F; D6-435I-Intake and Exhaust SystemAir Filter for CompressorEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
827 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
22469302
|
[1] |
Air cleaner
|
|
| 2. |
21702999
|
[1] |
Insert
|
|
| 3. |
3587119
|
[1] |
Hose
|
|
| 4. |
982694
|
[2] |
Hose clamp
|
|
| 5. |
945444
|
[2] |
Flange screw
|
|
| 6. |
864722
|
[4] |
Sealing ring
|
|
| 7. |
3584244
|
[2] |
Pipe
|
|
| 8. |
22428297
|
[4] |
Anchorage
|
|
| 9. |
22428286
|
[2] |
Extension
|
|
