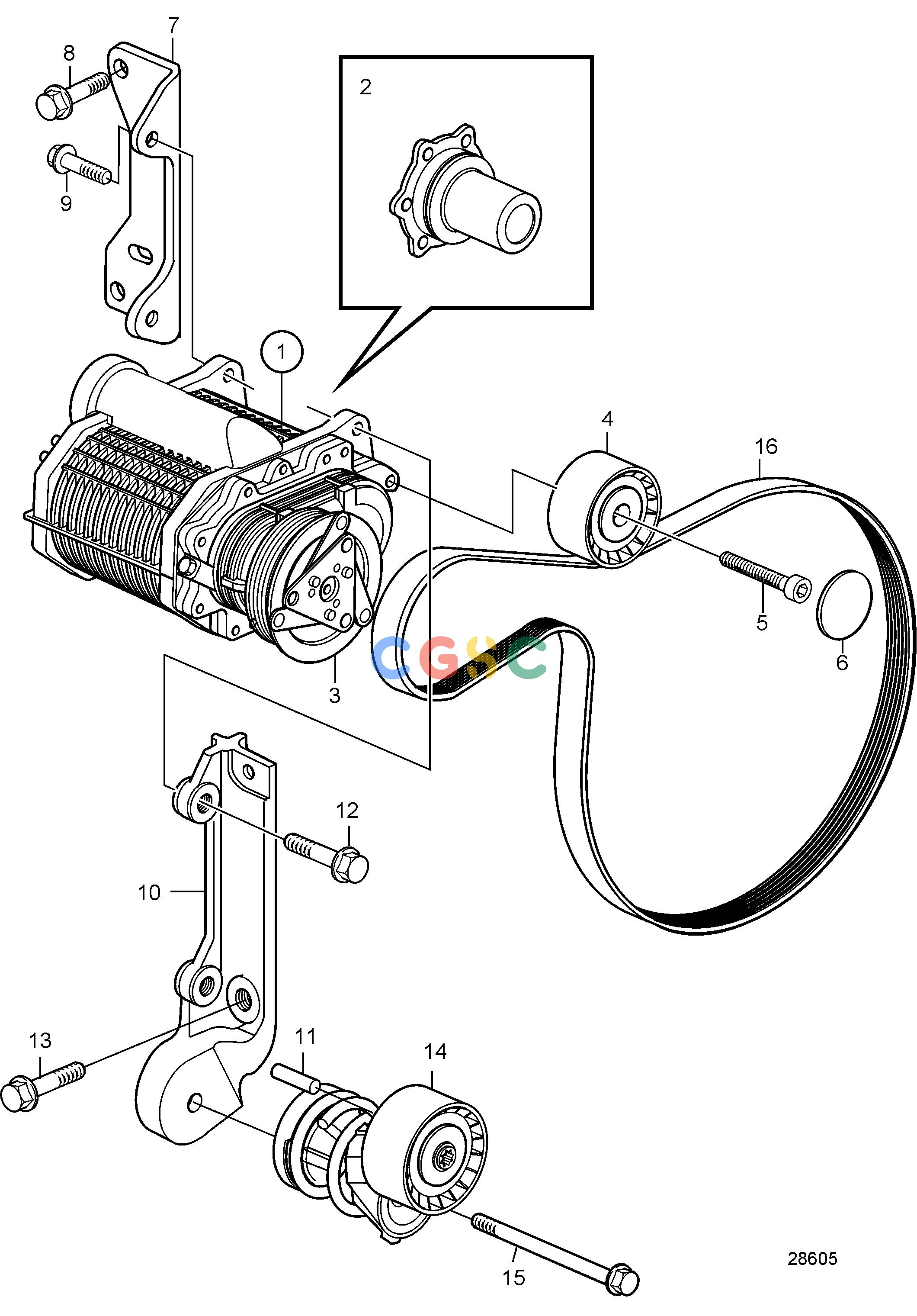

沃尔沃零件查询D6-300A-F; D6-300D-F; D6-300I-F; D6-330A-F; D6-330D-F; D6-330I-F; D6-370A-F; D6-370D-F; D6-370I-F; D6-400A-F; D6-435D-F; D6-435I-F; D6-435I-Intake and Exhaust SystemCompressorEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
1010 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3803851
|
[1] |
Compressor, exch
|
12V
|
| 1. |
3803852
|
[1] |
Compressor, exch
|
24V, SOLAS
|
| 2. |
22409091
|
[1] |
Spindle
|
|
| 3. |
889996
|
[1] |
Clutch
|
12V, Shims are included
|
| 3. |
3588854
|
[1] |
Clutch
|
24V, Shims are included
|
| 4. |
3848896
|
[1] |
Idler pulley
|
SN-2006032252, Replaced by 21280913
|
| 4. |
21280913
|
[1] |
Idler pulley
|
SN-2006032252
|
| 4. |
3847482
|
[1] |
Idler pulley
|
SN2006032253-
|
| 5. |
959224
|
[1] |
Hex. socket screw
|
|
| 6. |
|
|
|
|
| 7. |
3582971
|
[1] |
Bracket
|
|
| 8. |
946472
|
[2] |
Flange screw
|
|
| 9. |
946329
|
[2] |
Flange screw
|
|
| 10. |
3588069
|
[1] |
Bracket
|
|
| 11. |
950542
|
[1] |
Pin
|
|
| 12. |
965186
|
[2] |
Flange screw
|
|
| 13. |
946472
|
[2] |
Flange screw
|
|
| 14. |
3588305
|
[1] |
Belt tensioner
|
|
| 15. |
947790
|
[1] |
Flange screw
|
|
| 16. |
21407026
|
[1] |
Belt
|
|
