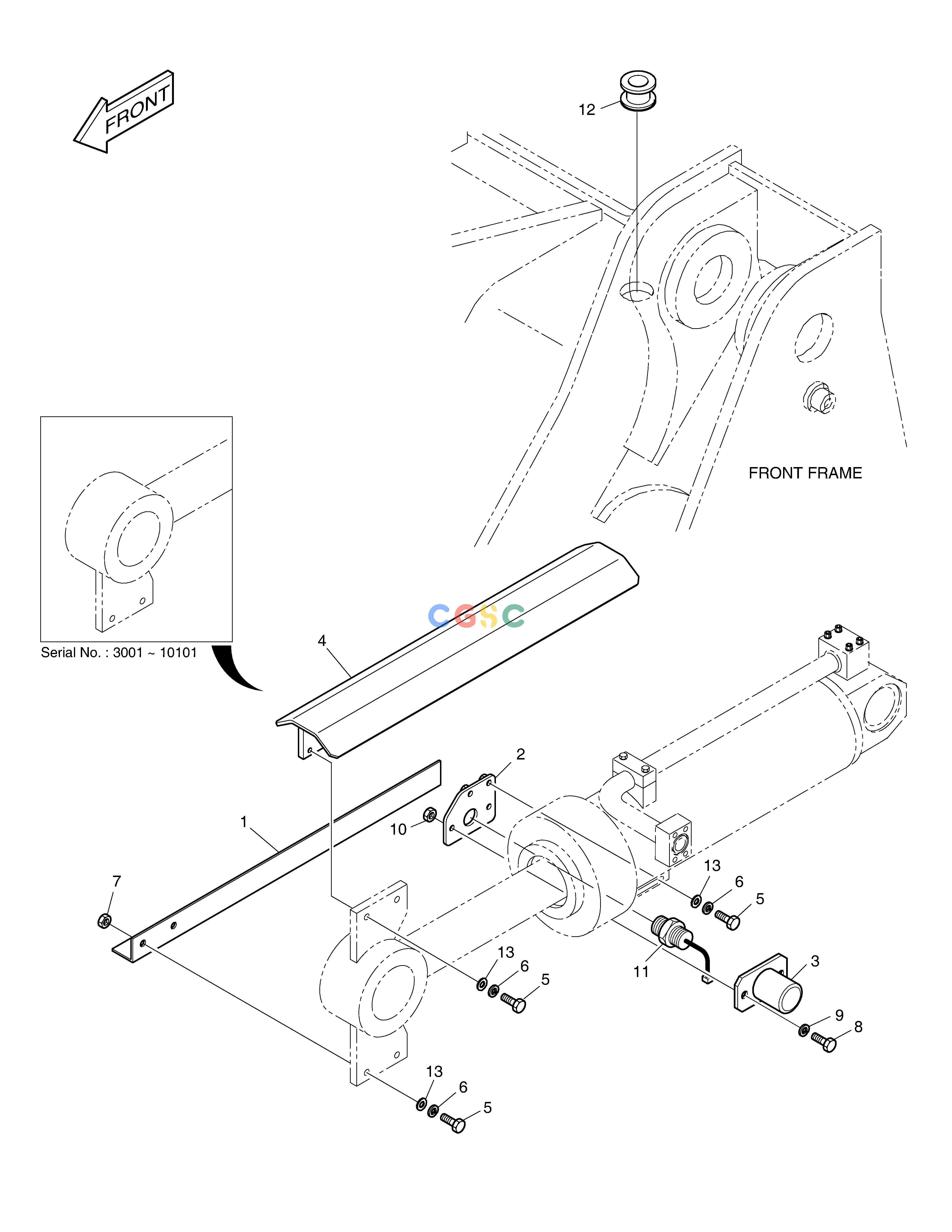

斗山零件查询RETURN TO DIG ASS'Y MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
877 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
715-00003C
|
[-] |
RETURUN TO DIG
|
|
| -. |
620202-20063
|
[-] |
|
|
| 1. |
K1004345
|
[1] |
ANGLE
|
K1004345A
|
| 1. |
K1004345A
|
[1] |
ANGLE
|
|
| 10. |
S4012533
|
[2] |
NUT
|
|
| 11. |
K1027017
|
[1] |
SWITCH;PROXIMITY
|
|
| 12. |
2160-1004D41
|
[2] |
BUSHING;RUBBER
|
|
| 13. |
2114-1058D63
|
[4] |
WASHER
|
|
| 13. |
2114-1058D63
|
[6] |
WASHER
|
|
| 2. |
191-00361A
|
[1] |
PLATE
|
|
| 3. |
4159-4008
|
[1] |
COVER
|
|
| 4. |
621-00670
|
[1] |
COVER
|
|
| 5. |
S0512466
|
[4] |
BOLT
|
|
| 5. |
S0512466
|
[6] |
BOLT
|
|
| 6. |
S5102603
|
[4] |
. WASHER
|
|
| 6. |
S5102603
|
[6] |
. WASHER
|
|
| 7. |
S4012633
|
[2] |
NUT
|
|
| 8. |
S0508966
|
[2] |
BOLT
|
|
| 9. |
S5102503
|
[2] |
. WASHER
|
|
