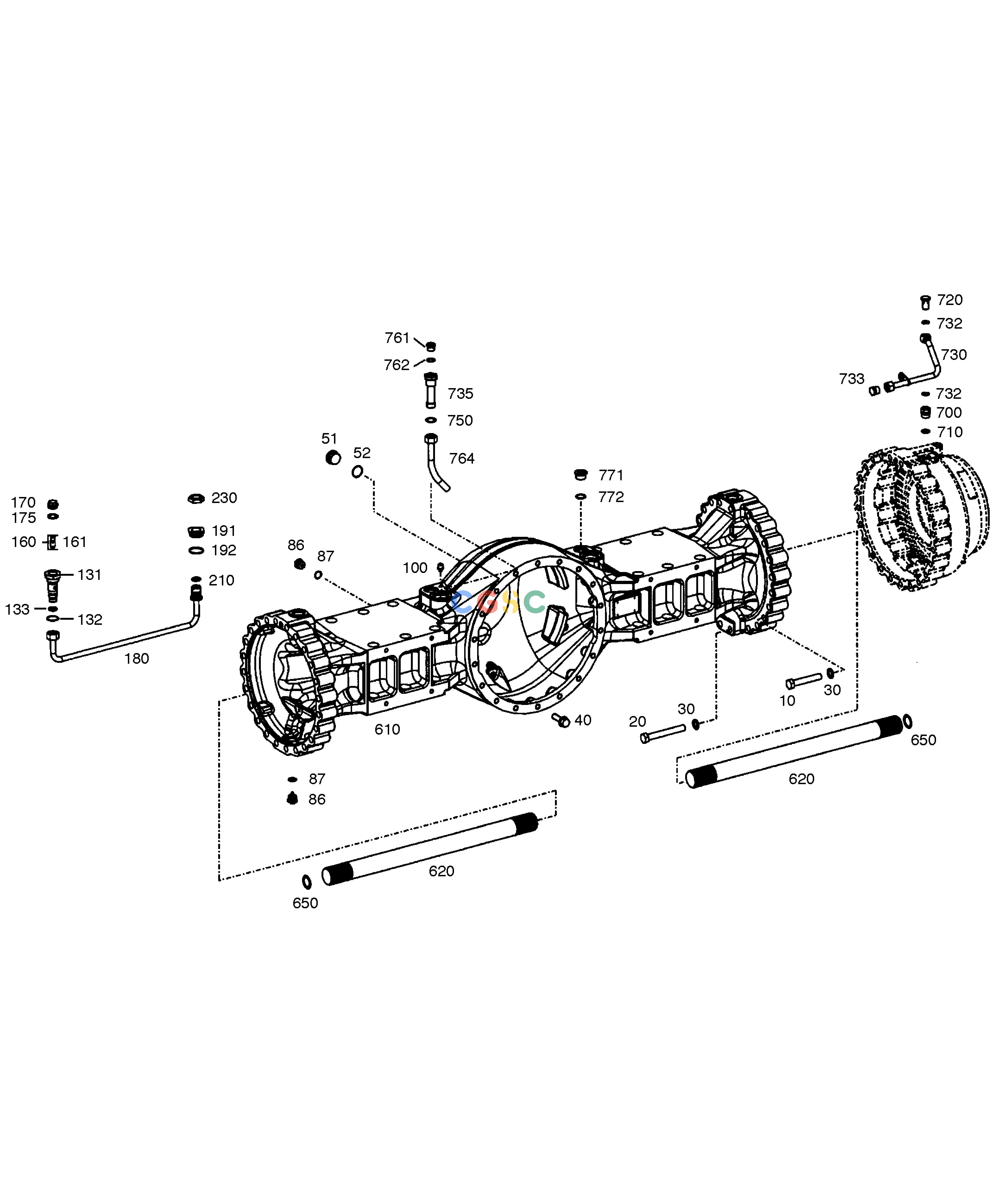

斗山零件查询AXLE CASING - FRONT AXLE MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
148 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 10. |
K9000183
|
[40] |
SCREW
|
|
| 100. |
K9000239
|
[1] |
VALVE;VENT
|
|
| 131. |
K9000294
|
[2] |
PART;CONNECTION
|
|
| 132. |
2.180-00277
|
[2] |
O-RING
|
|
| 133. |
K9000178
|
[2] |
RING;PISTON
|
|
| 160. |
1.420-00157
|
[2] |
VALVE;VENT
|
|
| 161. |
K9000167
|
[2] |
CAP;DUST
|
|
| 170. |
1.120-00169
|
[2] |
PLUG;SCREW
|
|
| 175. |
K9000180
|
[2] |
RING;SEALING
|
|
| 180. |
K9000280
|
[2] |
TUBE;BRAKE
|
|
| 191. |
K9000300
|
[2] |
SCREW;UNION
|
|
| 192. |
2.180-00345
|
[2] |
O-RING
|
|
| 20. |
K9000182
|
[8] |
BOLT M18X1.5X140
|
|
| 210. |
K9000177
|
[2] |
O-RING
|
|
| 230. |
K9000291
|
[2] |
NUT;HEX.
|
|
| 30. |
2.114-00867
|
[47] |
WASHER
|
|
| 40. |
2.120-00736
|
[18] |
SCREW;LOCKING
|
|
| 51. |
K9000166
|
[2] |
PLUG;SCREW
|
|
| 52. |
1.180-00135
|
[2] |
. O-RING
|
|
| 610. |
K9000302
|
[1] |
CASING;AXLE
|
|
| 620. |
K9000297
|
[2] |
SHAFT;STUB
|
|
| 650. |
K9000186
|
[2] |
SHIM S=0.60
|
|
| 650. |
K9000187
|
[2] |
SHIM S=1.00
|
|
| 650. |
K9000188
|
[2] |
SHIM S=1.60
|
|
| 650. |
K9000197
|
[2] |
SHIM A=2.00
|
|
| 650. |
K9000198
|
[2] |
SHIM A=2.50
|
|
| 700. |
K9000271
|
[2] |
ADAPTER
|
|
| 710. |
1.180-00137
|
[2] |
. O-RING
|
|
| 720. |
K9000181
|
[2] |
SCREW
|
|
| 730. |
K9000256
|
[2] |
PIPE
|
|
| 732. |
2.180-01050
|
[4] |
RING;SEALING
|
|
| 733. |
K9000185
|
[2] |
PLUG
|
|
| 735. |
K9000278
|
[1] |
CONNECTOR
|
|
| 750. |
1.180-00075
|
[1] |
O-RING
|
|
| 761. |
2.120-00643
|
[1] |
SCREW;PLUG
|
|
| 762. |
2.180-00346
|
[1] |
O-RING
|
|
| 764. |
K9000269
|
[1] |
PIPE
|
|
| 771. |
1.120-00167
|
[1] |
PLUG
|
|
| 772. |
1.180-00075
|
[1] |
O-RING
|
|
| 86. |
K9000165
|
[3] |
PLUG;SCREW
|
|
| 87. |
1.180-00137
|
[3] |
. O-RING
|
|
