斗山零件查询BRAKE & PILOT SUPPLY VALVE MEGA 400-V (CHINA) Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
452 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

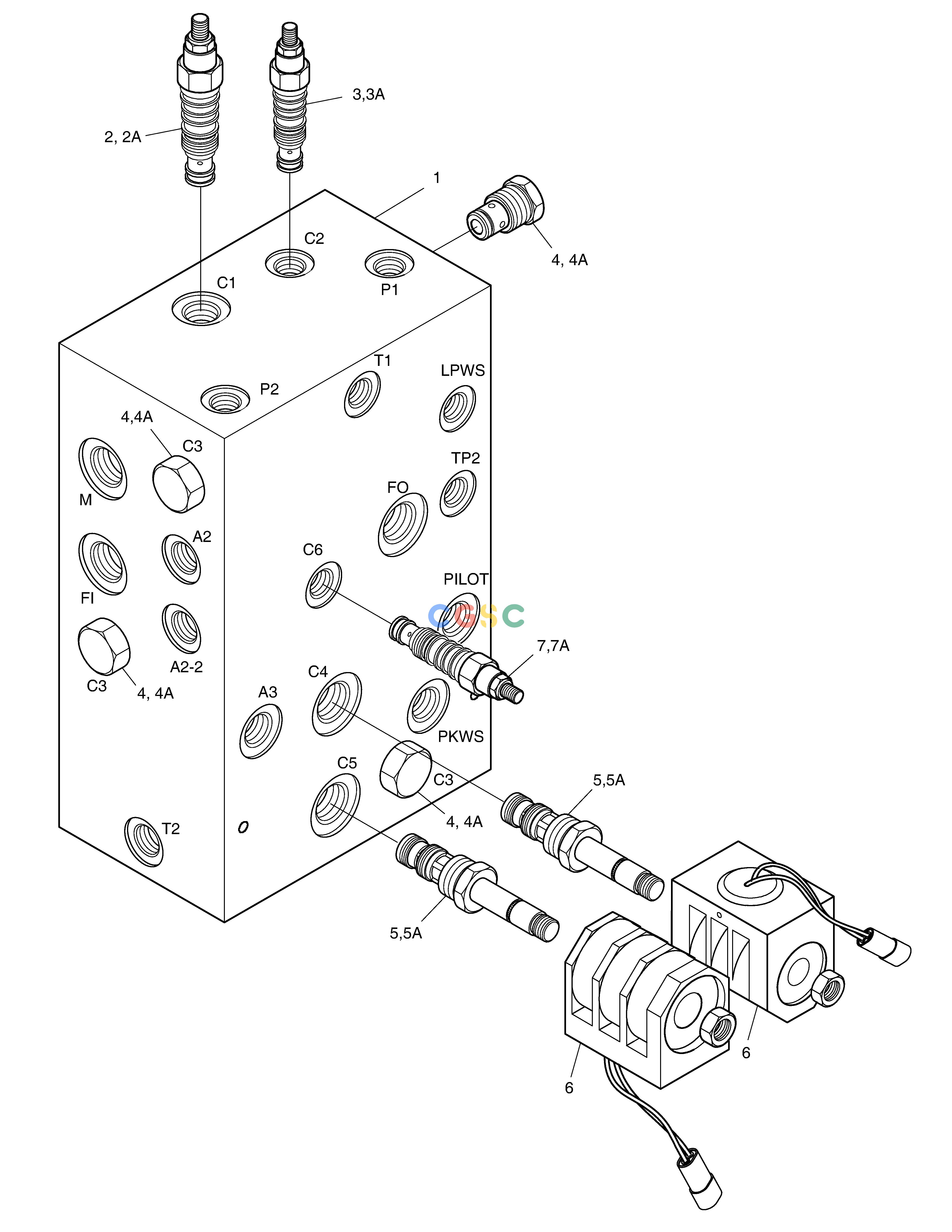

420-00079C
|
[1] |
BRAKE & PILOT VALVE
|
|
| 1. |
NA00079
|
[1] |
BODY
|
|
| 2. |
1.420-00127
|
[1] |
SEQUENCE VALVE
|
|
| 2A. |
401107-02148
|
[1] |
KIT DE JOINT
|
|
| 3. |
1.420-00092
|
[1] |
REDUCING VALVE
|
|
| 3A. |
1.180-00448
|
[1] |
SEAL KIT
|
|
| 4. |
K9002251
|
[4] |
VALVE;CHECK
|
|
| 4A. |
1.180-00447
|
[1] |
. KIT,SEAL
|
|
| 5. |
1.420-00138
|
[2] |
SOLENOID VALVE
|
|
| 5A. |
180-00226
|
[1] |
SEAL KIT
|
|
| 6. |
1.519-00001
|
[2] |
COIL
|
|
| 7. |
1.420-00102
|
[1] |
VALVE;RELIEF
|
|
| 7A. |
1.180-00452
|
[1] |
SEAL KIT
|
|
